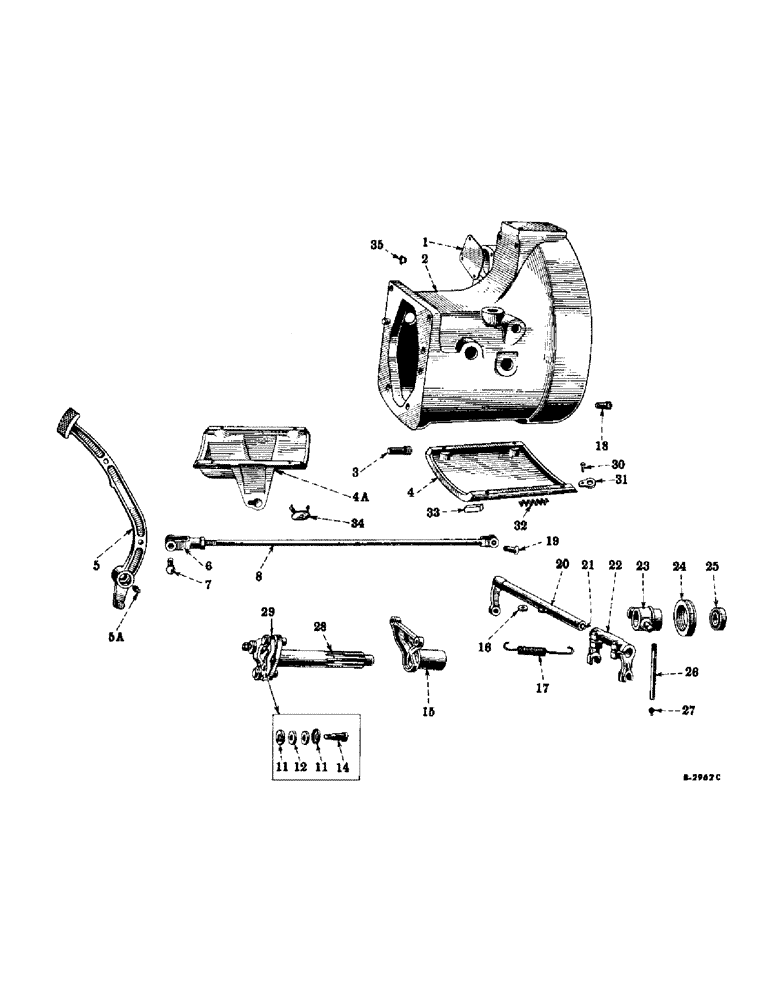

Запчасти Case IH SUPER M-TA (243) - CHASSIS, CLUTCH CONNECTIONS, FOR TRACTORS F-501 TO F-52627 AND L-500001 TO L-512541 (12) - CHASSIS

1

359716R1

COVER, cranking motor opening, will work for 21069V, super "MD" and "MDV", super "M" and "MV"

1шт.

For tractors not equipped with starting and lighting.

1шт.

For tractors F-28175 to F-52627 and L-504802 to L-512541.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

48554D

COVER, cranking motor opening, super "M" and "MV"

1шт.

For tractors not equipped with starting and lighting.

1шт.

For tractors F-28175 to F-52627 and L-504802 to L-512541.

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

357892R11

HOUSING, clutch, w/two plugs 64881D

1шт.

For tractors F-28175 to F-52627 and L-504802 to L-512541.

1шт.

(will work for 8026DCX providing housing, P/N 358326R91) (Delco-Remy 1924468 is used) (super "M" and "MV")

1шт.

For tractors F-501 to F-28174 and L-500001 to 504801.

1шт.

(will work for 9122DBX providing drive, P/N 358133R91) (Delco-Remy 1864682 is used )(super "MD" and "MDV")

1шт.

For tractors F-501 to F-28174 and L-500001 to 504801.

1шт.

16094R1

STUD,Hex, 1/2"-13 x 7 1/2", G5

SCREW, cap, hex-hd., 1/2-13NC x 7-1/2"

2шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

3

45224D

DOWEL, clutch housing to rear frame

2шт.

4

8027D

COVER, clutch housing (see note)

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4a

358492R1

COVER, clutch housing (for tractors equipped with hydraulic lift-all attachment with engine-driven pump)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

357039R21

PEDAL, clutch, w/fitting, 66584D (will work for 357295R91)

1шт.

5a

66584D

FITTING

lubrication, straight, drive type, 3/16"

1шт.

6

6692D

YOKE, clutch operating rod adjustable (optional with 350151R1)

1шт.

6

350151R1

YOKE, clutch operating rod adjustable (optional with 6692D)

1шт.

7

4226S

PIN

std-hd., drilled, 1/2 x 1-5/16" (clutch operating rod adjustable)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

8

49015DX

ROD, clutch operating, w/yoke

1шт.

218442

NUT, jam, hex., 5/8-11NC

1шт.

11

7579T

CUP WASHER

clutch joint rubber washer

8шт.

12

6161H

WASHER,14.68mm ID x 28.57mm OD x 6.75mm Thk

rubber, clutch joint

8шт.

14

48968DAX

SERVICE KIT

clutch joint, w/nut, 103027 and washer, 103322

4шт.

103027

NUT, hex., 7/16-20NF

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

15

6758D

BRACKET

CARRIER, clutch release sleeve

1шт.

179862

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

16

18465D

WASHER

KEY, clutch release fork

2шт.

17

49444DA

VALVE SPRING

SPRING, return, clutch release fork

1шт.

18

45979D

STUD

DOWEL, engine rear support

2шт.

19

352131R1

PIN

clutch operating rod yoke

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

20

49645D

SHAFT, clutch release, w/lever

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (optional with 109461) (clutch release shaft)

2шт.

21

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) (Clutch release shaft) 1/8"-27 x .66 lg

2шт.

22

5800DB

FORK

clutch release

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

6932D

PIVOT

SLEEVE, clutch release

1шт.

24

48974D

THRUST BEARING

ball, clutch release (Aetna 880)

1шт.

25

ST544

BEARING, BALL,25mm ID x 52mm OD x 15mm W

BEARING, clutch pilot (IH PPC-225)

1шт.

26

49790D

TUBE

PIPE, grease, clutch release bearing

1шт.

27

109368

FITTING, lubrication, straight, 5/8" (optional with Q3618) (clutch release bearing)

1шт.

27

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

FITTING, lubrication, straight, 5/8" (optional with 109368) (clutch release bearing)

1шт.

28

48966DA

SHAFT, clutch

1шт.

29

48967DA

RING

clutch joint

1шт.

30

57558D

PIN, clutch housing grease hole cover

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16 x 1/2"

1шт.

Q102

WASHER

plain, 13/64" I.D. x 1/2" O.D. x no. 18 ga.

1шт.

31

57559D

COVER, clutch housing grease hole

1шт.

32

57561D

VALVE SPRING

SPRING, clutch housing grease hole cover

1шт.

33

57562D

FELT, clutch housing cover corner (not used on tractors equipped with hydraulic "lift-all" attachment with engine-driven pump)

4шт.

34

57563DX

PLUG, clutch housing, w/rivet, 110638 and spring

5шт.

110638

RIVET

rd-hd., 3/16 x 5/16"

5шт.

35

64881D

PLUG, clutch housing dust seal (for sealing hydraulic lift mounting holes)

2шт.
