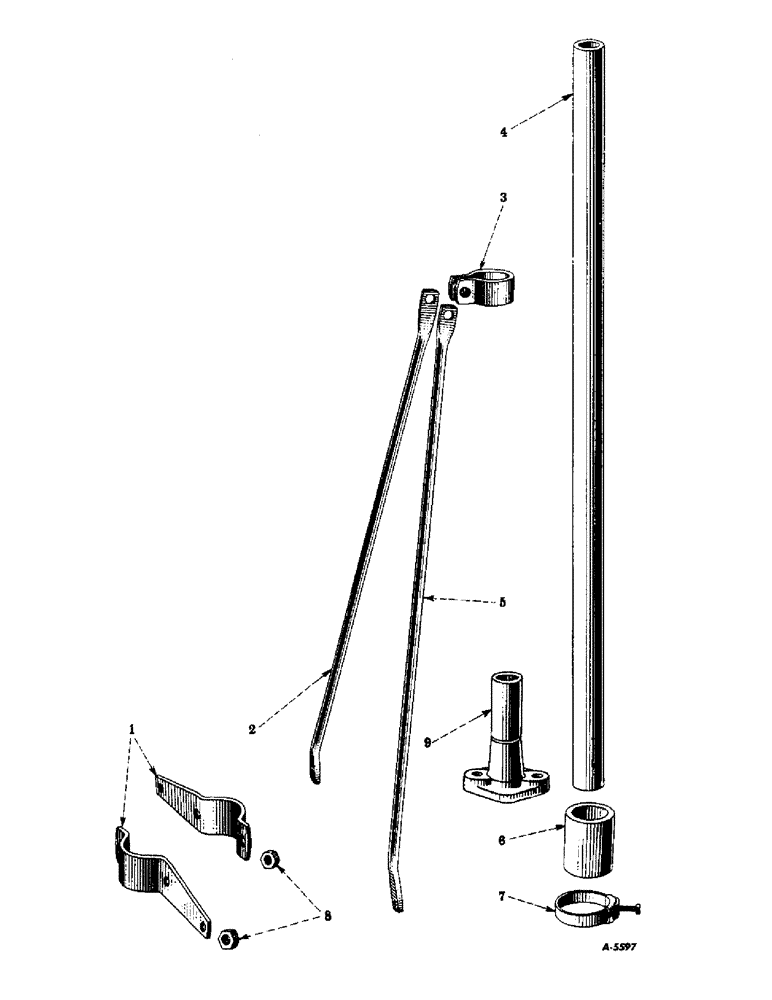

Запчасти Case IH SUPER M-TA (400) - ATTACHMENTS, AIR CLEANER EXTENSION PIPE, SPECIAL Attachments

62973D

ATTACHMENT, air cleaner pipe extension (super "M" and "MV")

1шт.

66754D

ATTACHMENT, air cleaner pipe extension (super "MD" and "MDV")

1шт.

1

62967D

CLAMP, extension pipe brace, lower

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

62968D

BRACE, extension, pipe, L.H. (super "M" and "MV")

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

66755

SPARE PART

BRACE, extension, pipe, L.H., complete (super "MD" and "MDV")

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

62972D

CLAMP, extension, pipe, brace, upper

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

62971D

EXTENSION, pipe

1шт.

5

62969D

BRACE, extension, pipe, R.H. (super "M" and "MV")

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

66756D

BRACE, extension, pipe, R.H. (super "MD" and "MDV")

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

45822DA

HOSE

extension, pipe (2-1/4" I.D. x 2-1/4" long, 8 ply)

1шт.

7

45813D

CLAMP

extension, pipe, hose

2шт.

8

93082

NUT, extension, lower brace clamp

2шт.

9

9591D

PIPE, exhaust (super "MD" and "MDV")

1шт.
