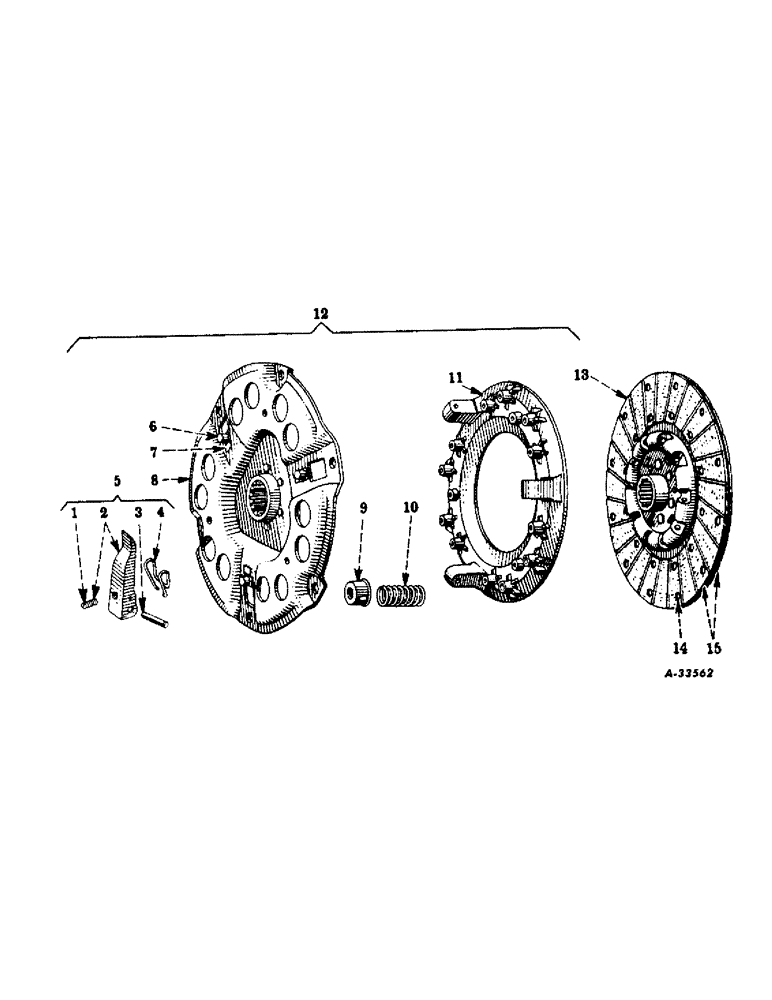

Запчасти Case IH SUPER M-TA (234) - CHASSIS, CLUTCH, ROCKFORD, FOR TRACTORS 60001 UP (12) - CHASSIS

1

353319R1

SCREW, adjusting, lever (Mfr. CL7590)

3шт.

114495

NUT, jam, hex., 7/16-20 NF

3шт.

2

360082R91

LEVER

release, clutch, w/nut, 114495 and screw, 353319R1 (Mfr. UCL9276)

3шт.

3

52846D

PIN

lever (Mfr. CL4404)

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

4

353318R1

SPRING, lever (Mfr. CL7098)

3шт.

5

360081R91

KIT

PACKAGE, lever, assembly (consists of (3) lever, assembly 360082R91, (3) pin 52846D, (3) pin 107762, (3) spring 353318R1)

1шт.

6

353314R1

SEAT, lever adjusting screw (Mfr. CL7100)

3шт.

7

353313R1

CLIP

lever spring (Mfr. CL7099)

3шт.

8

360080R91

PLATE

back, w/hub, and three clips, 353313R1 and three seats, 353314R1 (Mfr. UCL70822)

1шт.

9

353316R1

SPRING CUP

CUP, clutch pressure (Mfr. CL6847)

12шт.

10

361128R1

SPRING

clutch pressure (Mfr. CL505)

12шт.

11

353315R1

LARGE PLATE

PLATE, pressure (Mfr. CL7101)

1шт.

12

360079R91

PLATE

pressure, clutch, assembly (optional with 359121R91) (composed of (12) cup 353316R1, (1) lever, package 360081R91, (1) plate 360080R91, (1) plate 353315R1, (12) spring 361128R1) (Mfr. CLA70822)

1шт.

179882

PIN

SCREW, cap, hex-hd., 1/2-13 NC x 1-1/8"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

13

359016R91

DISC, driven, clutch, w/facing, 257819R21 (optional with 360117R91) (Mfr. UCL9274)

1шт.

13

360117R91

DISC, driven, clutch, w/facing, 257819R21 (optional with 359016R91) (Mfr. UCL9274)

1шт.

14

37508D

RIVET,Csk, .146" x 3/8", Brass

clutch facing

26шт.

15

257819R21

LINING

PACKAGE, clutch facing (two facings, w/twenty six rivets, 37508D)

1шт.
