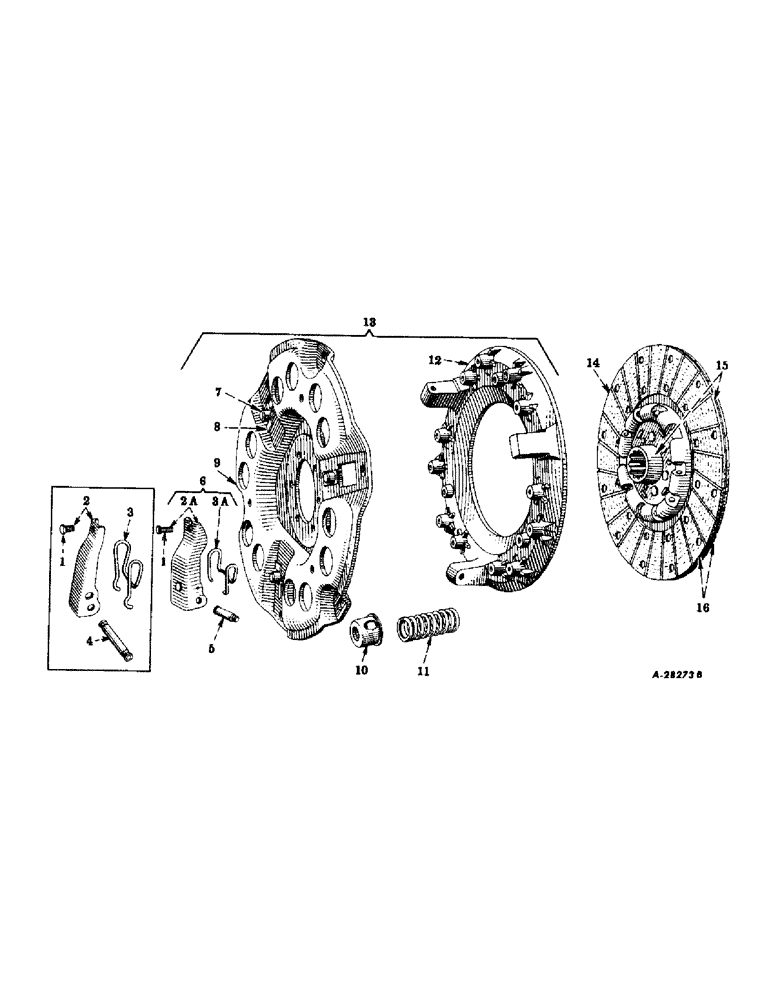

Запчасти Case IH SUPER M-TA (232) - CHASSIS, CLUTCH, ROCKFORD, FOR TRACTORS F501 TO F52627 AND L500001 TO L512541 (12) - CHASSIS

1

357301R1

ADJUSTMENT SCREW

adjusting (Mfr. CL8875)

3шт.

2

357300R91

LEVER

w/screw, 357301R1 (order 357304R94) (Mfr. UCL8792)

3шт.

2a

357932R92

LEVER

w/screw, 357301R1 (Mfr. UCL87921)

3шт.

3

357303R1

SPRING, lever (used only with 357300R91) (Mfr. CL8876)

3шт.

3a

353318R1

SPRING, lever (Mfr. CL7098)

3шт.

4

357302R1

PIN, pivot, clutch release lever (used only with 357300R91) (Mfr. CL8793)

3шт.

5

52846D

PIN

lever (Mfr. CL4404)

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

6

357304R94

LEVER

clutch, assembly (composed of (3) lever, assembly 357932R92, (3) pin 52846D, (3) pin 107762, (3) spring 353318R1) (Mfr. UCL87921C3)

1шт.

7

353314R1

SEAT, lever adjusting screw (Mfr. CL7100)

3шт.

8

353313R1

CLIP

lever spring (Mfr. CL7099)

3шт.

9

353312R92

PLATE, back, w/three clips, 353313R1 and three seats, 353314R1 (Mfr. UCL7082)

1шт.

10

353316R1

SPRING CUP

CUP, clutch pressure spring (Mfr. CL6847)

12шт.

11

361128R1

SPRING

clutch (will work for 20093V) (Mfr. CL505)

12шт.

12

353315R1

LARGE PLATE

PLATE, pressure (Mfr. CL7101)

1шт.

13

357299R93

PLATE, pressure, clutch, assembly (composed of (12) cup 353316R1, (1) lever, assembly 357304R94, (1) plate, assembly 353312R92, (1) plate 353315R1, (12) spring 361128R1) (Mfr. UCLA170822)

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

SCREW, cap, hex-hd., 1/2-13 NC x 1-1/8"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

14

37508D

RIVET,Csk, .146" x 3/8", Brass

clutch facing

26шт.

15

68757HC

DISC, driven, clutch, w/facing, 257819R21 (will work for 357307R91) (optional with 359168R91) (Mfr. UCL123832)

1шт.

15

359168R91

PLATE

DISC, driven, clutch, w/facing, 257819R21 (will work for 357307R91) (optional with 68757HC) (Mfr. UCL173832)

1шт.

16

257819R21

LINING

PACKAGE, clutch facing (two facings, w/twenty six rivets, 37508D)

1шт.
