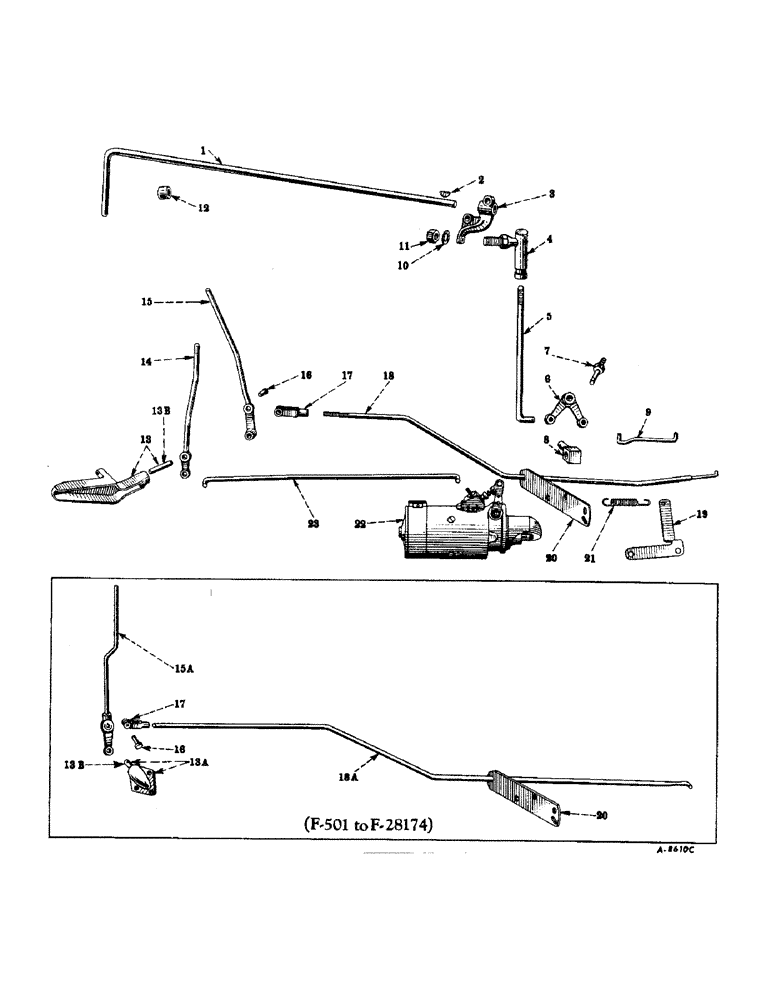

Запчасти Case IH SUPER M-TA (229) - CHASSIS, GOVERNOR AND STARTING MECHANISM CONTROLS, SUPER "MD" AND "MDV" (12) - CHASSIS

1

60933DB

SHAFT, governor control, Serial Range: F-501-F-52627

1шт.

1

358920R1

SHAFT, governor control, 60001 up

1шт.

2

114813

KEY

Woodruff, 10, 5/32 x 7/8" (governor control shaft)

1шт.

9

9127D

ARM, governor control shaft

1шт.

218437

NUT, jam, hex., 5/16-18NC

1шт.

280136

NUT,3/8"-16, G8

1шт.

102834

TUBE

SCREW, set, hdls-dog-pt., 5/16-18NC x 1-1/2"

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

61175D

JOINT, governor control rod

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

60934DA

ROD, governor control

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

6

60851DA

BELLCRANK, governor control rod

1шт.

7

60850D

STUD, governor control rod bellcrank

1шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

Q5035

WASHER

plain, 17/32 I.D. x 1" O.D. x no. 16 ga.

1шт.

8

60935D

BLOCK, governor control rod adjusting

1шт.

Q1597

WASHER

plain, 13/32 I.D. x 3/4" O.D. x no. 16 ga.

1шт.

9

60849D

ROD, governor control, upper

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

1шт.

10

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Follows ref #4 1/2"

1шт.

11

25-118

NUT,1/2"-20, G5

Follows reference no. 4

1шт.

12

60939D

SPACER, governor control shaft bearing

1шт.

84-55

SET SCREW,Hex Soc, 5/16"-24 x 5/16"

set, hex-socket-hd-cup-pt., 5/16-24NF x 5/16"

2шт.

13

358607R11

BRACKET, starting control hand lever, w/shaft, 60948D (see notes 1 and 3), F-28175 up

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Q1520

WASHER

plain, 17/32" I.D. x 1" O.D. x no 14 ga.

1шт.

13a

9129DX

BRACKET, starting control hand lever, w/shaft, 60948D (see note 2), Serial Range: F-501-F-28174

1шт.

280136

NUT,3/8"-16, G8

3шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

Q1520

WASHER

plain, 17/32" I.D. x 1" O.D. x no. 14 ga.

1шт.

13b

60948D

SHAFT, starting control hand lever

1шт.

14

358603R11

LEVER, starting switch control (see note 3), F-28175 up

1шт.

15

358605R11

LEVER, starting control, w/handle (see note 3), F-28175 up

1шт.

15a

60949DX

LEVER, starting control hand, w/handle (see note 2), Serial Range: F-501-F-28174

1шт.

16

358911R1

PIN, starting control rod adjustable yoke

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

17

358912R1

YOKE, adjustable, starting control rod

1шт.

18

358601R2

ROD, starting control (see note 3) (see note B)

1шт.

18

358921R1

ROD, starting control (see note 3) (see note C)

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

18a

356721R1

ROD, starting control (see note 2) (see note A)

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

19

357902R1

BRACKET, starting switch return spring (see note 3), F-28175 up

1шт.

NLS

NO LONGER SERVICED

SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

20

60940DB

BRACKET, governor control rod guide

1шт.

280136

NUT,3/8"-16, G8

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (see note 1)

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4" (see note 1)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

357945R1

SPRING, starting switch control rod return (see note 3), F-28175 up

1шт.

22

357908R91

MOTOR, cranking (Delco-Remy 1108982) (for components see list of parts under detail of "cranking motor") (see note 3), F-28175 up, Delco-Remy PN A-61061DA for F-500 to F-28174 but is no longer available.

1шт.

23

358600R1

ROD, starting switch control (see note 3) (see note B)

1шт.

23

358924R1

ROD, starting switch control (see note 3) (see note C)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

21933K

WASHER, plain, 15/32" I.D. x 13/16" O.D. x no. 16 ga.

2шт.

359033R1

SPACER, starting control hand lever (magneto ignition less starting and lighting), F-28175 up

1шт.
