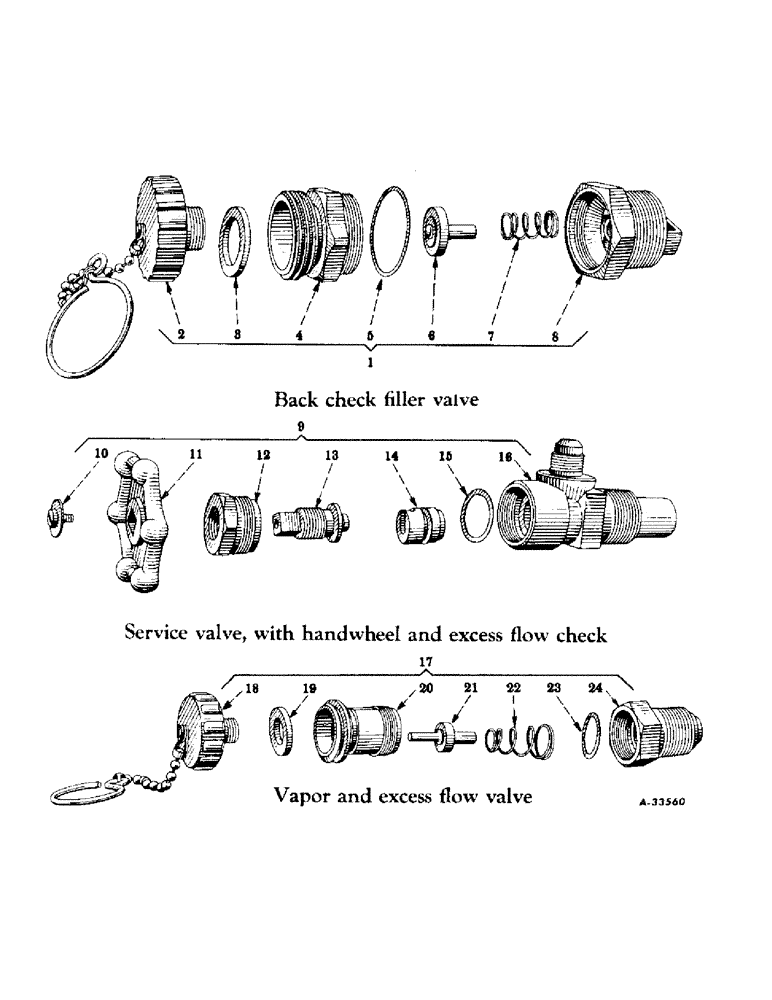

Запчасти Case IH SUPER M-TA (222) - CHASSIS, VALVES, SELWYN LANDERS CO., L. P. GAS, SUPER "MA" AND "MV", BACK CHECK FILLER VALVE (12) - CHASSIS

1

357065R92

VALVE, filler, back check (Mfr. 612C)

1шт.

2

359824R91

CAP, valve, w/chain and ring, 1-1/4" (Mfr. 6973C)

1шт.

3

359825R1

WASHER, (Mfr. 6972)

1шт.

4

359826R1

BODY, upper (hexagon) (used only with 35706R91) (Mfr. 6103)

1шт.

4

360484R1

BODY, upper (round) (used with 357065R92) (Mfr. 6123)

1шт.

5

359827R1

GASKET, (used with 359826R1) (Mfr. 6104)

1шт.

5

360485R1

GASKET, (used with 360484R1) (Mfr. 6124)

1шт.

6

359828R91

POPPET, (Mfr. 61020)

1шт.

7

359829R1

SPRING, (Mfr. 6108)

1шт.

8

BODY, lower (not serviced separately, order 357065R92)

1шт.

9

357069R91

VALVE, service, w/handwheel and excess flow check (Mfr. 1445B)

1шт.

10

359831R91

FASTENER, "sems" (Mfr. 14349)

1шт.

11

359832R1

HANDWHEEL, (Mfr. 143410)

1шт.

12

359833R1

BONNET, (Mfr. 14342)

1шт.

13

359834R1

STEM, (Mfr. 14345)

1шт.

14

359835R91

SEAT DISC AND RING, (Mfr. 143440)

1шт.

15

359821R1

GASKET, (Mfr. 304)

1шт.

16

BODY, lower (Not serviced separately, order 357069R91)

1шт.

17

357064R92

VALVE, vapor and excess flow (Mfr. 712C)

1шт.

18

359814R91

CAP, valve, w/chain and ring, 3/4" (Mfr. 7973C) , VAPOR AND EXCESS FLOW VALVE

1шт.

19

359815R1

WASHER, (Mfr. 7972) , VAPOR AND EXCESS FLOW VALVE

1шт.

20

359820R1

BODY, upper (Mfr. 7123) , VAPOR AND EXCESS FLOW VALVE

1шт.

21

359822R91

POPPER, (Mfr. 71220) , VAPOR AND EXCESS FLOW VALVE

1шт.

22

359823R1

SPRING, (Mfr. 7127A) , VAPOR AND EXCESS FLOW VALVE

1шт.

23

359821R1

GASKET, (Mfr. 304) , VAPOR AND EXCESS FLOW VALVE

1шт.

24

BODY, lower (not serviced separately, order 357064R92) , VAPOR AND EXCESS FLOW VALVE

1шт.
