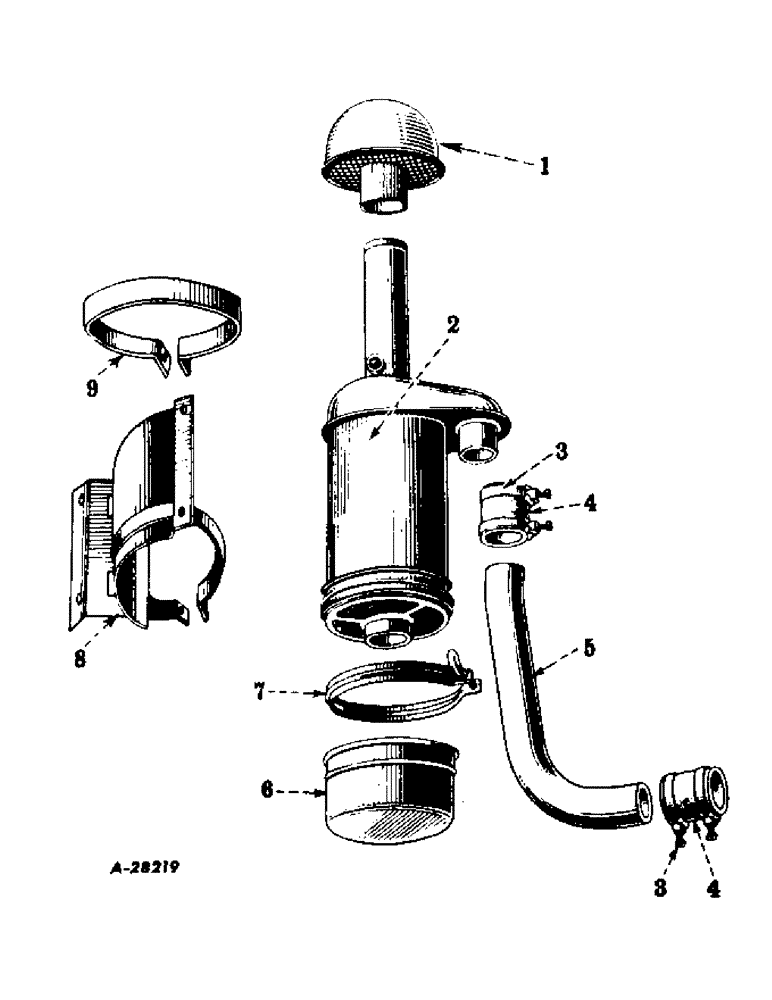

Запчасти Case IH SUPER M-TA (210) - CHASSIS, AIR CLEANER AND CONNECTIONS, SUPER "M" AND "MV" (12) - CHASSIS

357025R91

CLEANER, air, assembly (Donaldson) (gasoline, distillate, or kerosene) (composed of (1) body 357348R91, (1) clamp 52868D, (1) cup 52867DA) (Mfr. A6128)

1шт.

357561R91

CLEANER, air, assembly (Donaldson) (liquefied petroleum gas) (composed of (1) body 357592R91, (1) clamp 52868D, (1) cup 52867DA)

1шт.

357358R91

CLEANER, air, assembly (Donaldson) (for super "M" tractors equipped with cotton picker) (composed of (1) body 357361R91, (1) clamp 52868D, (1) cup 52867DA) (Mfr. A6127)

1шт.

1

353018R91

CAP

air intake (Mfr. X16811)

1шт.

2

357348R91

BODY, (gasoline, distillate, or kerosene) (Mfr. P13617)

1шт.

2

357592R91

BODY, air cleaner (liquefied petroleum gas) (Mfr. P13744)

1шт.

2

357361R91

BODY, (for super "M" tractors equipped with cotton picker mounting attachment) (Mfr. P13638)

1шт.

3

45813D

CLAMP

air cleaner pipe hose

4шт.

4

45822DA

HOSE

air cleaner pipe, 2-1/4" I.D. x 2-1/4" long, 8 ply (will work for 51940DA)

2шт.

1 Used on tractors equipped with liquefied petroleum gas attachment.

1шт.

4

357564R1

HOSE, air cleaner pipe, upper, 2-1/4" I.D. x 3-5/8" long, 8 ply (liquefied petroleum gas)

1шт.

5

357028R1

PIPE, air cleaner 2.25" OD, 14.75" Length

1шт.

6

52867DA

CUP

oil (Mfr. P3324)

1шт.

7

52868D

CLAMP, oil cup retaining (Mfr. P2862)

1шт.

8

60669D

BRACKET, air cleaner

1шт.

280136

NUT,3/8"-16, G8

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

60678DX

BAND, air cleaner bracket

2шт.

25-285

SQUARE NUT,Sq, 5/16"-18

sq-hd., 5/16-18 NC

2шт.

117296

SCREW, fil-hd., 5/16-18 NC x 1-1/2"

2шт.
