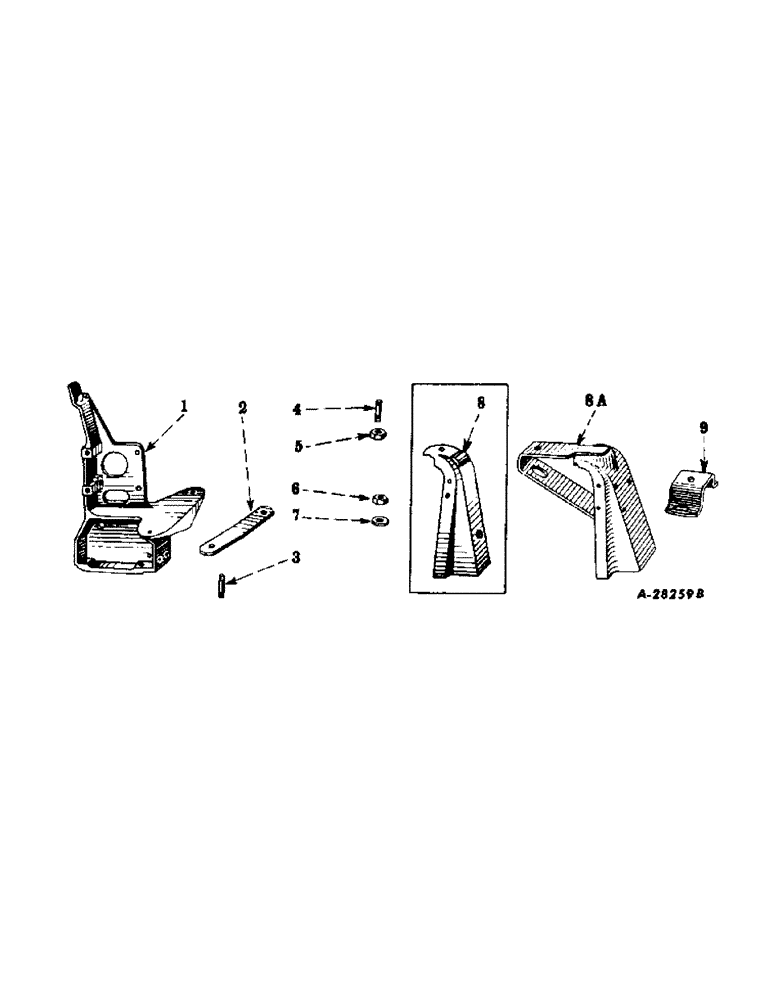

Запчасти Case IH SUPER M-TA (208) - CHASSIS, AIR CLEANER AND FUEL TANK SUPPORTS (12) - CHASSIS

1

9099DA

SUPPORT, fuel tank and air cleaner

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-3/8" (2 used - super "MD" and "MDV" F-28175 up)

4шт.

4 used super "MD" and "MDV" magneto ignition without starting and lighting.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (2 used - super "MD" & "MDV" F-28175 up) 7/16"

4шт.

4 used super "MD" and "MDV" magneto ignition without starting and lighting.

1шт.

2

60673D

PAD, fuel tank insulating, long

1шт.

3

60681D

STUD, fuel tank, front, F-501 to F-45477, Serial Range: L-500001-L-512541

2шт.

Not used on tractors equipped with liquefied petroleum gas attachment.

1шт.

3

358156R1

STUD, fuel tank, front R.H. (used with hydraulic remote control tractor attachment), F-501 to F-45477, Serial Range: L-500001-L-512541

1шт.

102646

PULLEY

NUT, slotted, hex-hd., 7/16-20NF

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

3

359566R1

STUD, fuel tank, front, F-45478 up

2шт.

Not used on tractors equipped with liquefied petroleum gas attachment.

1шт.

3

360700R1

STUD, fuel tank, front R.H. (used with hydraulic remote control tractor attachment), F-45478 up

1шт.

17081R1

NUT

lock, hex., zn-pltd., 7/16-20NF (optional with 82447R1)

2шт.

82447R1

NUT, lock, hex., cd-pltd., 7/16-20NF (optional with 17081R1)

2шт.

4

60682D

STUD, fuel tank, rear, F-501 to F-45477, Serial Range: L-500001-L-512541

1шт.

Not used on tractors equipped with liquefied petroleum gas attachment.

1шт.

102646

PULLEY

NUT, slotted, hex-hd., 7/16-20NF

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

4

359480R1

STUD, fuel tank rear, F-45478 up

1шт.

Not used on tractors equipped with liquefied petroleum gas attachment.

1шт.

17081R1

NUT

lock, hex., zn-pltd., 7/16-20NF (optional with 82447R1)

1шт.

82447R1

NUT, lock, hex., cd-pltd., 7/16-20NF (optional with 17081R1)

1шт.

5

60672D

GASKET

PAD, fuel tank insulating, large

1шт.

Not used on tractors equipped with liquefied petroleum gas attachment.

1шт.

6

60671D

INSULATOR BLOCK

PAD, fuel tank insulating, small

3шт.

Not used on tractors equipped with liquefied petroleum gas attachment.

1шт.

7

60683D

RETAINER

fuel tank insulating pad, small

3шт.

Not used on tractors equipped with liquefied petroleum gas attachment.

1шт.

8

51137DDX

SUPPORT, fuel tank, rear (not used on tractors equipped with hydraulic lift-all attachment with engine driven pump), F-501 to F-52627, Serial Range: L-500001-L-512541

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8a

358727R91

SUPPORT, fuel tank, rear (not used on tractors equipped with hydraulic lift-all attachment with engine driven pump), 60001 up

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

358454R1

SUPPORT, fuel tank, rear (tractors equipped with hydraulic lift-all attachment with engine driven pump)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

358265R1

SUPPORT, control rod (super "M" and "MV") (also liquefied petroleum gas) (illustrated with cranking motor), F-28175 up, Serial Range: L-504802-L-512541

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
