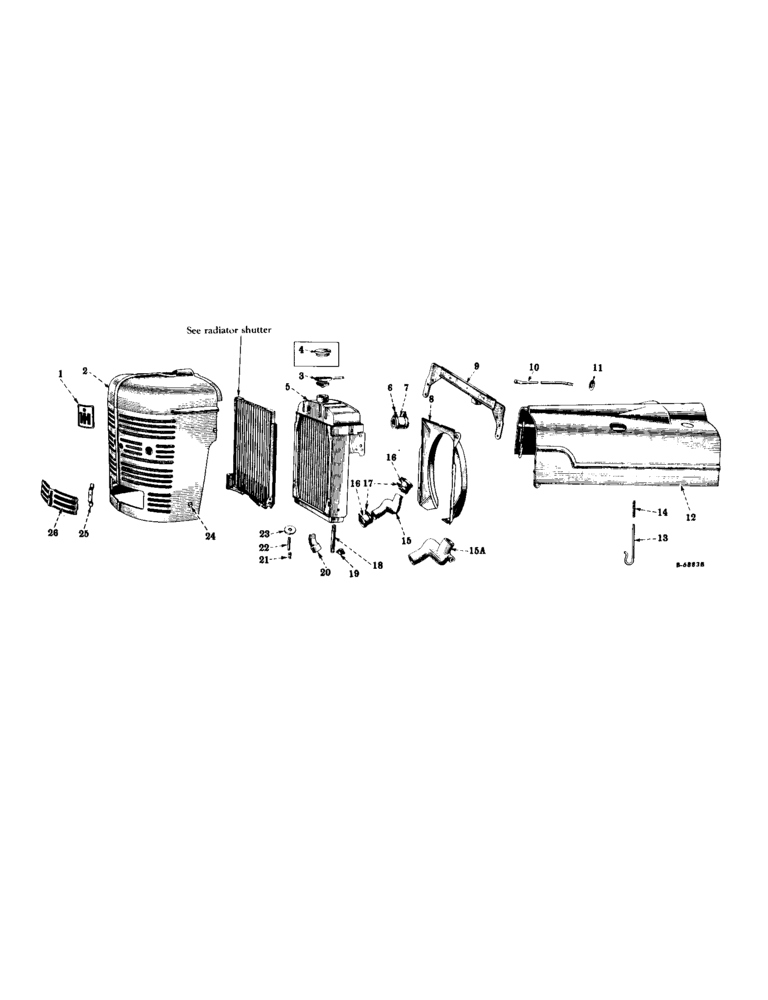

Запчасти Case IH SUPER M-TA (204) - CHASSIS, RADIATOR AND CONNECTIONS, GRILLE AND HOOD (12) - CHASSIS

1

357650R1

PLATE, name (IH)

1шт.

352581R1

SCREW, slotted-csk-fil-hd., no. 6 x 1/2"

2шт.

2

59516DE

GRILLE, radiator

1шт.

3

67448DD

CYLINDER END CAP

CAP, radiator (optional with 356710R91)

1шт.

3

356710R91

RADIATOR CAP

CAP, radiator (optional with 67448DD)

1шт.

4

352639R91

GASKET

radiator cap (used with 67448DC), F-501 to, Serial Range: L-500001-500587

1шт.

5

357158R92

RADIATOR, w/cap, 67448DD and two studs, 48225DA (optional with 357339R91)

1шт.

5

357339R91

RADIATOR, w/cap, 67448DD and two studs, 48225DA (optional with 357158R92)

1шт.

6

357870R91

CLAMP

radiator inlet hose (will work for 91406HA)

2шт.

7

63344D

HOSE

radiator inlet, 2-1/8" I.D. x 3-1/2" long, 3 ply (super "M" and "MV"), F-501 to F-52627, Serial Range: L-500001-L-512541

1шт.

7

250841R1

HOSE

radiator inlet pipe, 2-1/8" I.D. x 5-1/8" long, 3 ply (super "M" and "MV"), 60001 up

1шт.

7

55175D

HOSE ASSY.

HOSE, radiator inlet pipe, 2-1/8" I.D. x 2-3/4" long, 3 ply (super "MD" and "MDV")

1шт.

8

49534DBX

HOUSING, fan, w/extension (super "MD" and "MDV"), super "M" and "MV" - F-501 to F-52627, Serial Range: L-500001-L-512541

1шт.

8

51986DAX

HOUSING, fan, w/extension (super "M" and "MV"), 60001 up

1шт.

8

356075R91

HOUSING, fan, w/extension (for super "MD" tractors equipped with cotton picker)

1шт.

13539R1

BOLT,Sq Hd, 1/4" - 20 x 4 3/4"

machine, sq-hd., 1/4-20NC x 4-3/4"

4шт.

13000R1

NUT, hex., 1/4-20NC

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

68282D

TIE PLATE, radiator brace

1шт.

13000R1

NUT, hex., 1/4-20NC

4шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

10

68281D

TIE ROD, radiator (super "M" and "MV"), F-501 to F-52627, Serial Range: L-500001-L-512541

1шт.

10

69230D

TIE ROD, radiator (super "MD" and "MDV") (super "M" and "MV"), 60001 up

1шт.

280136

NUT,3/8"-16, G8

1шт.

103027

NUT, hex., 7/16-20NF

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

11

115550

LOCK WASHER,Int Tooth, 7/16"

WASHER, lock, internal tooth, 7/16" (radiator tie rod)

1шт.

12

50551DBX

HOOD (distillate or kerosene) (super "M" and "MV"), F-501 to F-52627, Serial Range: L-500001-L-512541

1шт.

12

56513DBX

HOOD (gasoline) (super "M" and "MV"), F-501 to F-52627, Serial Range: L-500001-L-512541

1шт.

12

357093R11

HOOD, w/four hooks, 50997D, four pins, 107762 and four springs, 48707DA (liquefied petroleum gas) (super "M" and "MV"), Serial Range: F-501-F-52627

1шт.

12

360523R11

HOOD, w/two hooks, 50997D, two hooks, 358199R1, four pins, 107762 and four springs, 48707DA (gasoline) (super "M" and "MV"), 60001 up

1шт.

12

360525R11

HOOD, w/two hooks, 50997D, two hooks, 358199R1, four pins, 107762 and four springs, 48707DA (distillate or kerosene) (super "M" and "MV") 60001 up

1шт.

12

60906DAX

HOOD (super "MD" and "MDV")

1шт.

103129

BEARING CONE

wing, 3/8-16NC (hood hold-down)

1шт.

60707D

WASHER, wing nut (hood hold-down)

1шт.

13

50997D

HOOK

hood clamp (4 used - F-501 to F-52627) (4 used -, Serial Range: L-500001-L-512541)

2шт.

13

358199R1

HOOK

E, hood clamp, front, 60001 up

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

4шт.

14

48707DA

SPRING

hood clamp hook

4шт.

15

6774D

TUBE

PIPE, radiator outlet (gasoline, distillate or kerosene) (super "M" and super "MV"), F-501 to F-52627, Serial Range: L-500001-L-512541

1шт.

15

8192D

PIPE, radiator outlet (gasoline, distillate or kerosene) (super "M" and "MV"), 60001 up

1шт.

15

9227D

PIPE, radiator outlet (super "MD" and "MDV")

1шт.

15a

357089R91

PIPE, radiator outlet (liquefied petroleum gas) (super "M" and super "MV"), Serial Range: F-501-F-52627

1шт.

16

12876DA

HOSE

radiator outlet, 2" I.D. x 2-5/8" long, 3 ply

2шт.

17

357870R91

CLAMP

radiator outlet hose (will work for 91406HA)

4шт.

18

190699

PIPE,Nipple, 3/8" NPT x 6"

radiator drain, 3/8" standard pipe, 6" long, threaded both ends

1шт.

18

192194

PIPE, radiator drain, 3/8" standard pipe, 8" long, threaded both ends (tractors equipped with wide front axle in short wheel base position) Nipple, 3/8" NPT x 8"

1шт.

19

13047DA

PLUG

CAP, radiator drain pipe

1шт.

20

120702

ELBOW,45 Degree, 3/8" NPT Street

street, 3/8" (45deg.) (radiator drain pipe) (for tractors equipped with wide front axle in short wheel base position)

1шт.

21

67205D

SPRING

radiator hold-down

2шт.

22

48825DA

STUD, radiator mounting

2шт.

125357

NUT, hex., castellated, cd-pltd., 7/16-20NF

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

Q1515

WASHER

plain, 1/2" I.D. x 7/8" O.D. x no. 16 ga.

4шт.

23

18464D

PAD, radiator

2шт.

24

56668D

SCREW

radiator grille fastening

4шт.

25

45452D

PLATE, lock, radiator grille insert

1шт.

26

50204DXA

FILTER SCREEN

INSERT, w/screen, radiator grille

1шт.

26

50204DXAGV

INSERT

Value, Radiator Grille Insert

1шт.

110534

SCREW

fil-hd., no. 10-24 x 7/8"

1шт.

114614

WASHER

lock, external-tooth, csk-hd., no. 10 (radiator grille insert)

1шт.

656830R92

COVER, exhaust pipe opening (used with orchard type exhaust pipe attachments - for hole in hood) (also used on tractors equipped with cotton picker)

1шт.

135234

GUARD

RIVET, wagon - box-hd., 3/32 x 5/16"

2шт.
