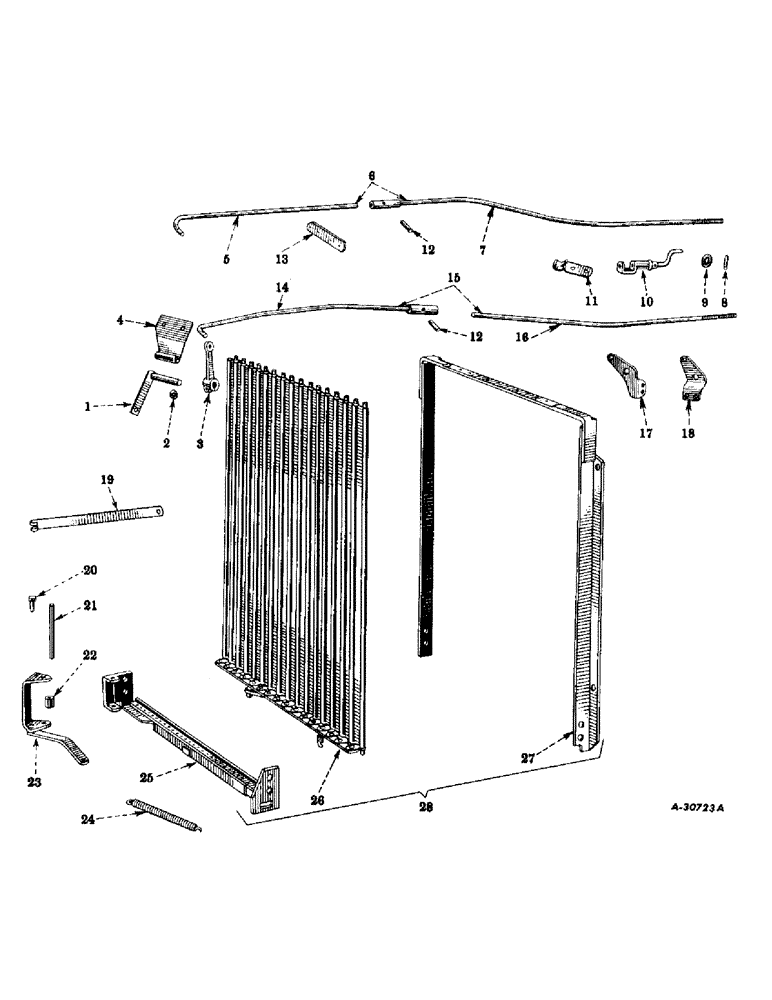

Запчасти Case IH SUPER M-TA (200) - CHASSIS, RADIATOR SHUTTER AND CONTROLS (12) - CHASSIS

57572DC

ATTACHMENT, radiator shutter, standard equipment on super "M" and "MV" with distillate or kerosene engine, special for super "M" and "MV" equipped with gasoline engine

1шт.

For tractors F-501 to F-52627 and L500001 to L512541.

1шт.

359227R91

ATTACHMENT, radiator shutter (standard equipment on super "M" and "MV" with distillate or kerosene engine) (special for super "M" and "MV" equipped with gasoline engine) 60001 up

1шт.

355930R91

ATTACHMENT, radiator shutter, special, super "MD" and "MDV"

1шт.

For tractors F-501 to F-28174 and L-500001 to 504801.

1шт.

358672R91

ATTACHMENT, radiator shutter, special, super "MD" and "MDV"

1шт.

For tractors F-28175 to F-52627 and L-504802 to L-512541.

1шт.

359229R91

ATTACHMENT, radiator shutter (special) (super "MD" and "MDV") 60001 up

1шт.

49098DR

1шт.

SHUTTER, radiator, assembly (Hardy Mfg. Corp.) (composed of (1) frame 52829D, (1) bellcrank 51620D, (4) nut 13000R1, (1) pin 51619D, (2) pin 112526, (4) screw 113955, (1) shutter 52827D, (1) spacer 55328D, (1) spring 37730D, (1) tie bar 52830D, (4) washer 103319) (Mfr. 16300)

1шт.

1

353763R91

ARM, radiator shutter control bellcrank, lower w/pin, W6185 and pin, 107763 (super "M" and "MV")

1шт.

1

353764R91

ARM, radiator shutter control bellcrank, lower w/pin, W6185 and pin, 107763 (super "MD" and "MDV")

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

W6185

PIN, ctd-hd., drilled, 5/16 x 9/16"

1шт.

2

48869D

KEY, radiator shutter control bellcrank lever arm

1шт.

3

6739D

ARM, radiator shutter control bellcrank lever, upper (will work for 351843R2) (super "M" and "MV")

1шт.

3

8934D

ARM, radiator shutter control bellcrank lever, upper (super "MD" and "MDV")

1шт.

13000R1

NUT, hex., 1/4-20NC

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

355900R1

BRACKET, radiator shutter bellcrank (super "MD" and "MDV")

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

56097DX

ROD, radiator shutter control rear (front section), w/pin, 142485 (super "M" and "MV")

1шт.

6

53040DR

ROD, radiator shutter control, rear, w/front section, 56097DX and rear section, 56098DX, super "M" and "MV"

1шт.

For tractors F-501 to F-52627 and L500001 to L512541.

1шт.

6

359232R91

ROD, radiator shutter control, rear, w/front section, 56097DX and rear section, 359234R11 (super "M" and "MV") 60001 up

1шт.

218437

NUT, jam, hex., 5/16-18NC

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

7

56098DX

ROD, radiator shutter control, rear, rear section, w/coupling, and pin, 142485 (super "M" and "MV"

1шт.

For tractors F-501 to F-52627 and L500001 to L512541.

1шт.

7

359234R11

ROD, radiator shutter control, rear (rear section), w/coupling, and pin, 142485 (super "M" and "MV") 60001 up

1шт.

8

9196T

PIN, radiator shutter control crank collar

1шт.

9

58264D

COLLAR, radiator shutter control crank (super "M" and "MV") (super "MD" and "MDV"), Serial Range: F-501-F-52627

1шт.

9

359179R1

COLLAR, radiator shutter control crank (super "MD" and "MDV") 60001 up

1шт.

10

6851DB

CRANK, radiator shutter control (optional with 351841R21)

1шт.

10

351841R21

CRANK, radiator shutter control (optional with 6851DB)

1шт.

11

56682D

BRACKET, radiator shutter control (super "M" and "MV") (super "MD" and "MDV"), Serial Range: F-501-F-28174)

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

12

142485

GROOVED PIN,1/8" x 5/8", Type A

Pin, Grooved, , radiator shutter control rod, rear, coupling 1/8" x 5/8", Type A

1шт.

13

60680DA

SUPPORT, radiator shutter control rear rod (part of standard super "M" and "MV" tractor)

1шт.

280136

NUT,3/8"-16, G8

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

1шт.

Not used on tractors equipped with hyd. lift-all attachment with engine driven pump.

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

1шт.

Not used on tractors equipped with hyd. lift-all attachment with engine driven pump.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

61715DX

ROD, radiator shutter control, rear (front section), w/coupling and pin, 142485 (super "MD" and "MDV")

1шт.

15

61714DR

ROD, radiator shutter control, rear, w/front section, 61715DX and rear section, 61716DX, super "MD" and "MDV"

1шт.

For tractors F-501 to F-28174 and L-500001 to 504801.

1шт.

15

358675R91

ROD, radiator shutter control, rear, w/front section, 61715DX and rear section, 358673R11, super "MD" and "MDV"

1шт.

For tractors F-28175 to F-52627 and L-504802 to L-512541.

1шт.

15

359233R91

ROD, radiator shutter control, rear, w/front section, 61715DX and rear section, 359235R11 (super "MD" and "MDV") 60001 up

1шт.

218437

NUT, jam, hex., 5/16-18 NC

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

16

61716DX

ROD, radiator shutter control, rear (rear section), w/pin, 142485, super "MD" and "MDV"

1шт.

For tractors F-501 to F-28174 and L-500001 to 504801.

1шт.

16

358673R11

ROD, radiator shutter control, rear (rear section), w/pin, 142485 (super "MD" and "MDV") (see note B)

1шт.

For tractors F-28175 to F-52627 and L-504802 to L-512541.

1шт.

16

359235R11

ROD, radiator shutter control, rear (rear section), w/pin, 142485 (super "MD" and "MDV") 60001 up

1шт.

17

358599R1

BRACKET, radiator shutter control and choke rod (part of standard super "MD" and "MDV" tractor) (not used on tractors equipped with hydraulic lift-all attachment with engine driven pump) F28175 up

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

358611R1

BRACKET, radiator shutter control and choke rod (tractors equipped with hydraulic lift-all with engine driven pump) (super "MD" and "MDV") (not part of shutter attachment) F28175 up

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

49099D

ROD, radiator shutter control, front, super "M" and "MV"

1шт.

For tractors F-501 to F-52627 and L500001 to L512541.

1шт.

19

51989D

ROD, radiator shutter control, front (super "M" and "MV") F60001 up

1шт.

19

59231D

ROD, radiator shutter control, front (super "MD" and "MDV")

1шт.

20

53055D

CLEVIS PIN,1/4" x 1"

PIN, radiator shutter control rod, front

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16 x 1/2"

1шт.

95-11028

WASHER,1/4"

plain, 9/32" I.D. x 5/8" O.D. x no. 16 ga.

1шт.

21

51619D

PIN, bellcrank and link (Mfr. 16324)

1шт.

112526

PIN, cotter, 1/16 x 3/8"

2шт.

22

55328D

SPACER, bellcrank pin (Mfr. 16326)

1шт.

23

51620D

BELLCRANK, w/link (Mfr. 16363)

1шт.

24

37730D

SPRING, bellcrank and operating link (Mfr. 3173)

1шт.

25

52830D

TIE BAR, bottom, and bearing bar (Mfr. 17247)

1шт.

13000R1

NUT, hex., 1/4-20 NC

4шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

machine, slotted rd-hd., 1/4-20 NC x 1/2"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

26

52827D

SHUTTER, w/operating bar (Mfr. 17243)

1шт.

27

52829D

FRAME AND BEARING BAR, (Mfr. 17245)

1шт.

28

52828D

UNIT, shutter, assembly, composed of (1) frame 52829D, (4) nut 13000R1, (4) screw 113955, (1) shutter 52827D, (1) tie bar 52830D, (4) washer 103319 (Mfr. 16327)

1шт.
