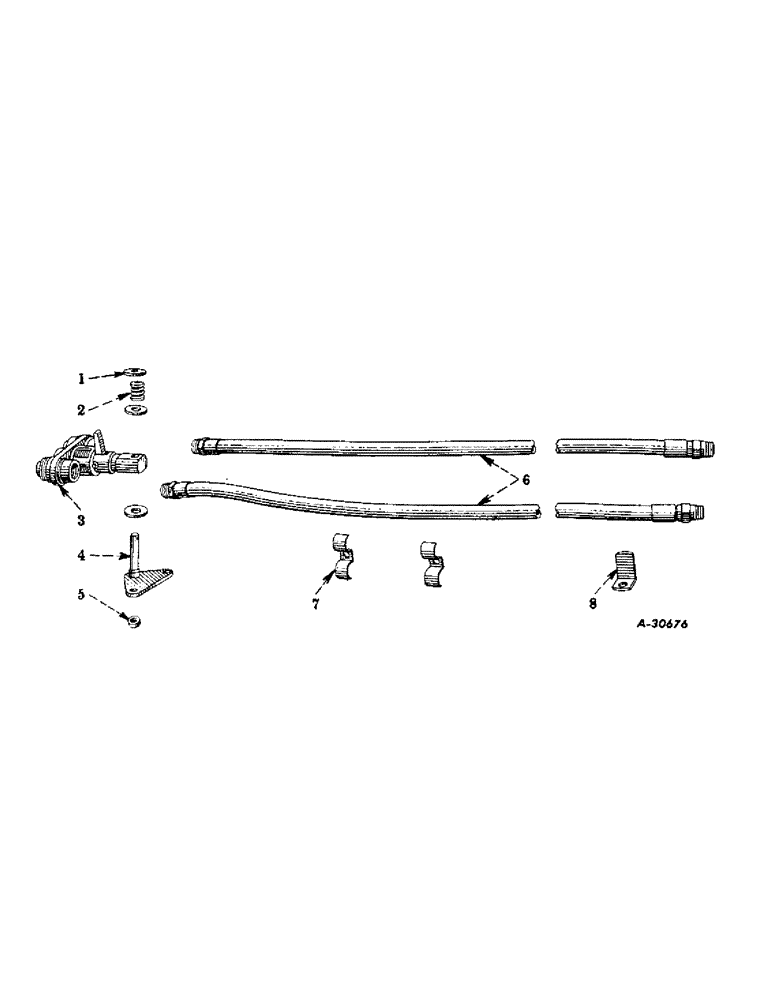

Запчасти Case IH SUPER M-TA (393) - HYDRAULIC SYSTEM, BREAK-AWAY COUPLING, FRONT SECTION, BRACKET, HOSE & CLAMPS, W/ENGINE DRIVEN PUMP (07) - HYDRAULIC SYSTEM

1

19849H

Follows reference no. 4

1шт.

2

353213R2

SPRING

break-away coupling bracket

1шт.

3

353215R91

COUPLING, break-away, front section (illustrated with break-away coupling)

1шт.

4

358482R91

BRACKET, break-away coupling

1шт.

220066

NUT, hex., 3/8-16NC

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19849H

WASHER, plain, 33/64" I.D. x 1-3/8" O.D. x no. 11 ga.

3шт.

5

353232R1

SPACER,3/8" Pipe x .344

break-away coupling bracket

1шт.

6

358479R91

HOSE, auxiliary control valve to coupling, 3/8" I.D. x 57-1/2"

2шт.

For tractors F-28175 to F-52627 and L-504802 to L-512541.

1шт.

Hoses are optional.

1шт.

6

359332R91

HOSE, auxiliary control valve to coupling, 3/8" I.D. x 57-1/2"

2шт.

For tractors F-28175 to F-52627 and L-504802 to L-512541.

1шт.

Hoses are optional.

1шт.

6

360902R91

HOSE, auxiliary control valve to coupling, 3/8" I.D. x 57-1/2"

2шт.

For tractors F-28175 to F-52627 and L-504802 to L-512541.

1шт.

Hoses are optional.

1шт.

6

359478R91

HOSE, auxiliary control valve to coupling, 3/8" I.D. x 60"

2шт.

For tractors 60001 up.

1шт.

Hoses are optional.

1шт.

6

360473R91

HOSE, auxiliary control valve to coupling, 3/8" I.D. x 60"

2шт.

For tractors 60001 up.

1шт.

Hoses are optional.

1шт.

6

361167R91

HOSE, auxiliary control valve to coupling, 3/8" I.D. x 60"

2шт.

For tractors 60001 up.

1шт.

Hoses are optional.

1шт.

7

358480R1

CLAMP, auxiliary control valve to coupling hose

2шт.

113954

SCREW

machine, slotted-rd-hd., 1/4-20NC x 3/8"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

358481R1

BRACKET, auxiliary control valve hose support

1шт.

355190R3

CAP, dust, break-away coupling, front section (illustrated with break-away coupling, assembly)

2шт.
