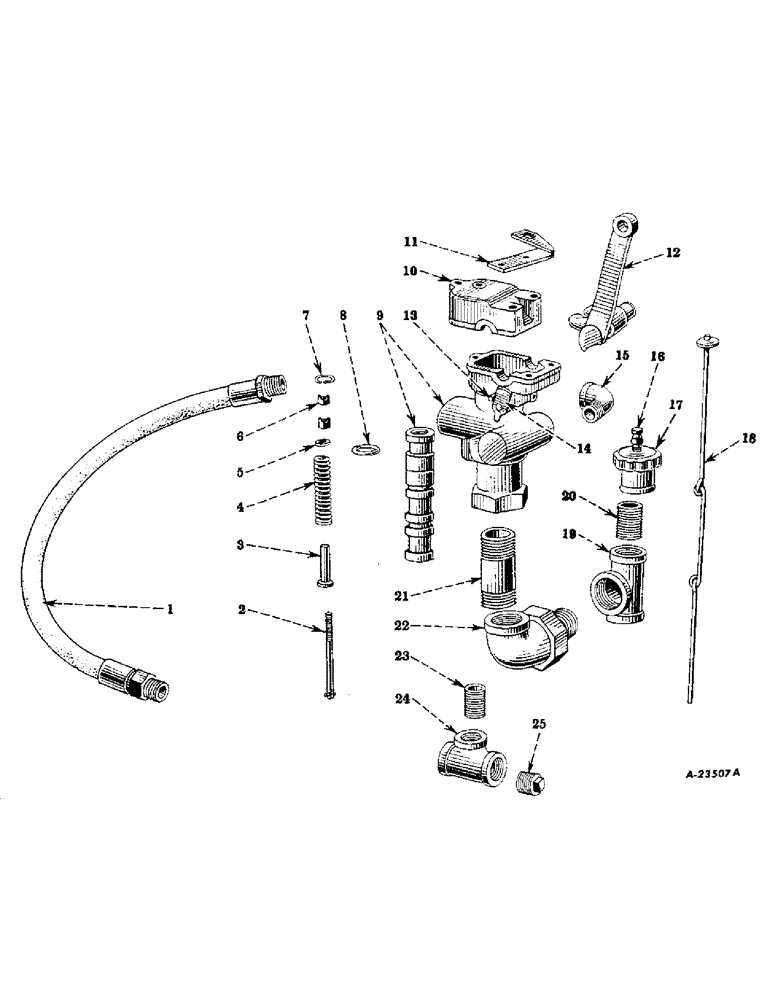

Запчасти Case IH SUPER M-TA (384) - HYDRAULIC SYSTEM, AUXILIARY CONTROL VALVE AND CONNECTIONS, COUNTER-DRIVEN PUMP, SPECIAL, (07) - HYDRAULIC SYSTEM

353097R94

VALVE, auxiliary control, assembly (reference nos. 2 to 14 inclusive) (less reference no. 11)

1шт.

1

353110R91

HOSE

lift-all to valve, 1/2" I.D. x 25" (optional with 359345R91)

1шт.

1

359345R91

HOSE

lift-all to valve, 1/2" I.D. x 25" (optional with 353110R91)

1шт.

2

352200R21

ROD, auxiliary control valve centering spring, w/pin

1шт.

220064

NUT

hex., 1/4-20NC

1шт.

3

352198R1

SLEEVE, auxiliary control valve centering spring

1шт.

4

352199R1

SPRING

centering, auxiliary control valve

1шт.

5

352201R2

WASHER, auxiliary control valve centering spring

1шт.

6

352203R1

SPACER, auxiliary control valve centering spring

2шт.

7

352202R1

LOCK, auxiliary control valve centering spring

1шт.

8

352024R2

O-RING,0.551" ID x 0.07" Width

SEAL, auxiliary control valve

1шт.

9

352196R31

BODY, auxiliary control valve, w/valve (order 353097R94)

1шт.

103874

VALVE SPRING

PLUG, pipe, C.I., sq-csk-hd., 1/2" (optional with 116566 and 444703)

1шт.

116566

PLUG

pipe, stl., sq-csk-hd., 1/2" (optional with 103874 and 444703)

1шт.

444703

PLUG,Hex Soc, 1/2"-14

pipe, stl., hex-csk-hd., 1/2" (optional with 103874 and 116566)

1шт.

10

352208R3

COVER, auxiliary control valve body (order 353097R94)

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

353107R92

BRACKET, control valve support

1шт.

220067

PIPE

NUT, hex., 7/16-14NC (liquefied petroleum gas)

1шт.

179865

BOLT,Hex, 7/16" - 14 x 1 7/8"

SCREW, cap, hex-hd., 7/16-14NC x 1-7/8" (liquefied petroleum gas)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (Liquefied petroleum gas) 7/16"

1шт.

12

353098R92

LEVER, shaft and yoke, w/pin, 17175R1

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

13

17183R1

LOCK PIN,Sl Spring, 5/32" x 5/8"

PIN, , Hand lever latch stop 5/32" x 5/8", Slotted

1шт.

14

352210R11

LATCH, w/shaft, hand lever

1шт.

15

108686

ELBOW,90 Degree, 1/2" NPT Street

street, 1/2 x 90deg.

1шт.

16

39677DA

VALVE

vent

1шт.

17

353124R11

CAP, breather

1шт.

18

353120R91

GAGE, oil

1шт.

19

218244

TEE, pipe, 3/4" plain, 3/4 x 3/4 x 1"

1шт.

20

NLS

NO LONGER SERVICED

NIPPLE, close, pipe, 3/4"

1шт.

21

219677

SHAFT SEAL

NIPPLE, cd-pltd., pipe, 1 x 3-1/2"

1шт.

22

356757R91

UNION, male, 90deg.

1шт.

23

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, close, pipe, 1/2"

1шт.

24

138105

TEE,1/2" NPT, Fem

pipe, 1/2"

1шт.

25

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

358156R1

STUD, fuel tank, front, R.H. (illustrated with fuel tank support)

1шт.
