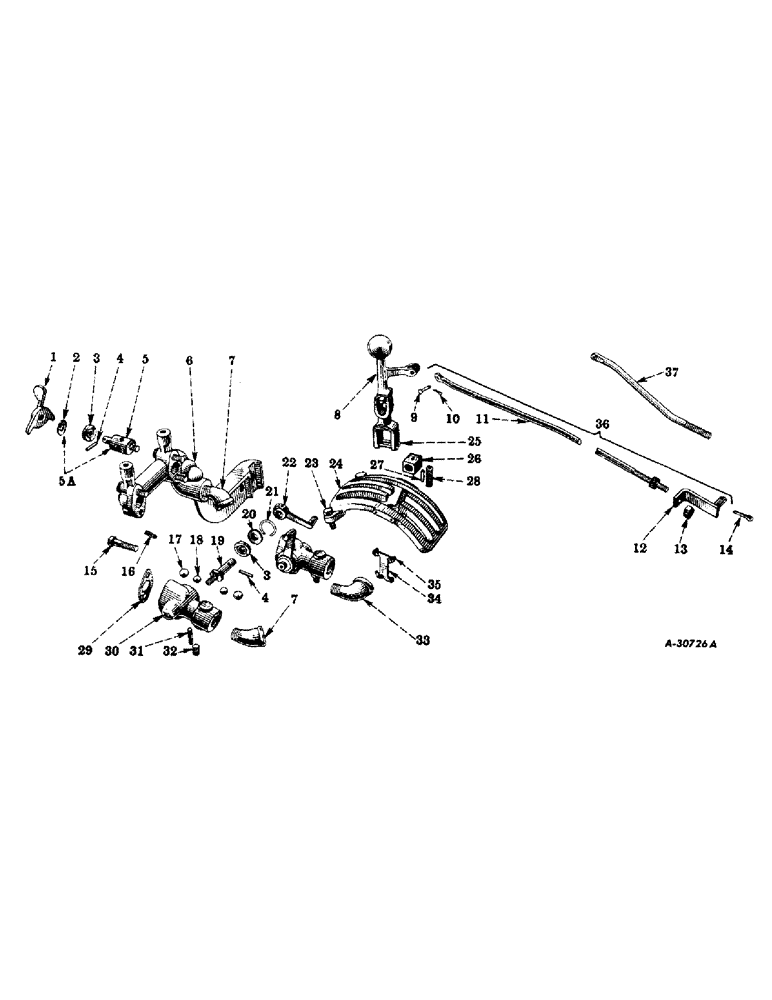

Запчасти Case IH SUPER M-TA (380) - HYDRAULIC SYSTEM, SELECTIVE LIFT CONTROL, SPECIAL (07) - HYDRAULIC SYSTEM

15300EX

CONTROL, selective lift, assembly (tractors equipped with countershaft-driven pump)

1шт.

358485R91

CONTROL, selective lift, assembly (tractors equipped with engine- driven pump)

1шт.

358438R91

CONTROL, selective lift, assembly (super "M" and "MV" tractors equipped with engine-driven pump and liquefied petroleum gas)

1шт.

359322R91

1шт.

CONTROL, selective lift, assembly (tractors equipped with engine- driven pump, w/or w/o liquefied petroleum gas) (composed of (4) ball D2617,(4) ball 9915T, (2) bearing 15286E, (1) block 15283E, (2) gasket 15292E, (2) housing 5075E, (1) lever 5076E, (1) lever 5077E, (2) lever 5078E, (1) manifold 5074E, (3) oil seal 13944L, (1) pin 142507, (3) pin 142508, (2) plug 103865, (1) quadrant 5073E, (2) ring 15288E, (2) rivet 107164, (4) screw 110499, (2) screw 179839, (4) screw 179864, (1) shaft 15284E, (1) shaft 1

1шт.

1

5077E

LEVER, adjustment valve

1шт.

2

15289EA

WASHER, adjustment valve

1шт.

3

13944L

SEAL

OIL SEAL

3шт.

4

38-31220

PIN,4.75mm OD x 31.75mm L, Coiled

groove, 3/16 x 1-1/4"

3шт.

5

15287EA

VALVE, adjustment

1шт.

5a

351905R91

VALVE, adjustment, 15287EA, w/washer, 15289EA (will work for 15287E or 15289E)

1шт.

6

5074E

MANIFOLD, valve housing

1шт.

13415R1

BOLT, machine, 7/16-14NC x 3"

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

7

137894

ELBOW,45 Degree, 1/2" NPT Street

street, 1/2" (45deg.) (tractors equipped with countershaft- driven pump)

2шт.

7

144120

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

street, zn-pltd., 1/2" (45deg.) (tractors equipped with engine-driven pump)

2шт.

8

5076E

LEVER, selector

1шт.

9

15295E

PIN, control rod, dld., 3/16 x 1"

1шт.

10

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

11

15297E

ROD, control (tractors equipped with countershaft-driven pump)

1шт.

12

15301EX

END, adjusting, control rod (tractors equipped with countershaft- driven pump)

1шт.

13

280136

NUT,3/8"-16, G8

(Tractors equipped with countershaft-driven pump) 3/8"-16, G8

2шт.

14

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), (Tractors equipped with countershaft-driven pump) 1/8" x 3/4"

1шт.

15

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-3/4"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

15291E

STOP, manifold ball

2шт.

17

D2617

BALL

steel, 5/8" diam.

4шт.

18

9915T

BALL,7/16 Dia

steel, 7/16" diam.

4шт.

19

15284E

SHAFT, valve, right

1шт.

19

15285E

SHAFT, valve, left

1шт.

20

15286E

BEARING, valve shaft

2шт.

21

15288E

RING, snap, valve housing

2шт.

22

5078E

LEVER, valve

2шт.

23

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

5073E

QUADRANT, selector lever

1шт.

25

107164

X

RIVET, truss-hd., 3/16 x 1-3/8"

2шт.

26

15283E

BLOCK, selector lever pivot

1шт.

27

142507

GROOVED PIN

Pin, Grooved, 3/16" x 7/8", Type A

1шт.

28

15293E

SPRING, selector lever

1шт.

29

15292E

GASKET, valve housing

2шт.

30

5075E

HOUSING, valve

2шт.

31

15294E

STOP, valve housing ball

2шт.

32

103865

PLUG, pipe, 1/8"

2шт.

33

108686

ELBOW,90 Degree, 1/2" NPT Street

street, 1/2" (90deg.) (tractors equipped with countershaft- driven pump)

1шт.

33

127961

DEFLECTOR

street, zn-pltd., 1/2" (90deg.) (tractors equipped with engine-driven pump)

1шт.

34

15290E

SPRING, valve lever stop

2шт.

35

110499

CAPSCREW,Rd Hd, #10 - 24 x 3/8"

SCREW, slotted-rd-hd., no. 10-24NC x 3/8"

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

36

15296EX

ROD, control, 15297E, w/end, 15301EX and two nuts, 13002R1 (tractors equipped with countershaft-driven pump)

1шт.

37

358487R1

ROD, control (tractors equipped with engine-driven pump)

1шт.

37

359364R1

ROD, control (super "M" and "MV" tractors equipped with engine-driven pump and liquefied petroleum gas)

1шт.

351130R92

HOSE, selective lift to reservoir, 3/8" I.D. x 35-1/2" (will work for 355209R91) (optional with 360114R91) (tractors with countershaft-driven pump)

1шт.

360114R91

HOSE, selective lift to reservoir, 3/8" I.D. x 35-1/2" (will work for 355209R91) (optional with 351130R92) (tractors with countershaft-driven pump)

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe (Tractors equipped with engine-driven pump) Sq Hd, 1/2"-14 NPTF

1шт.
