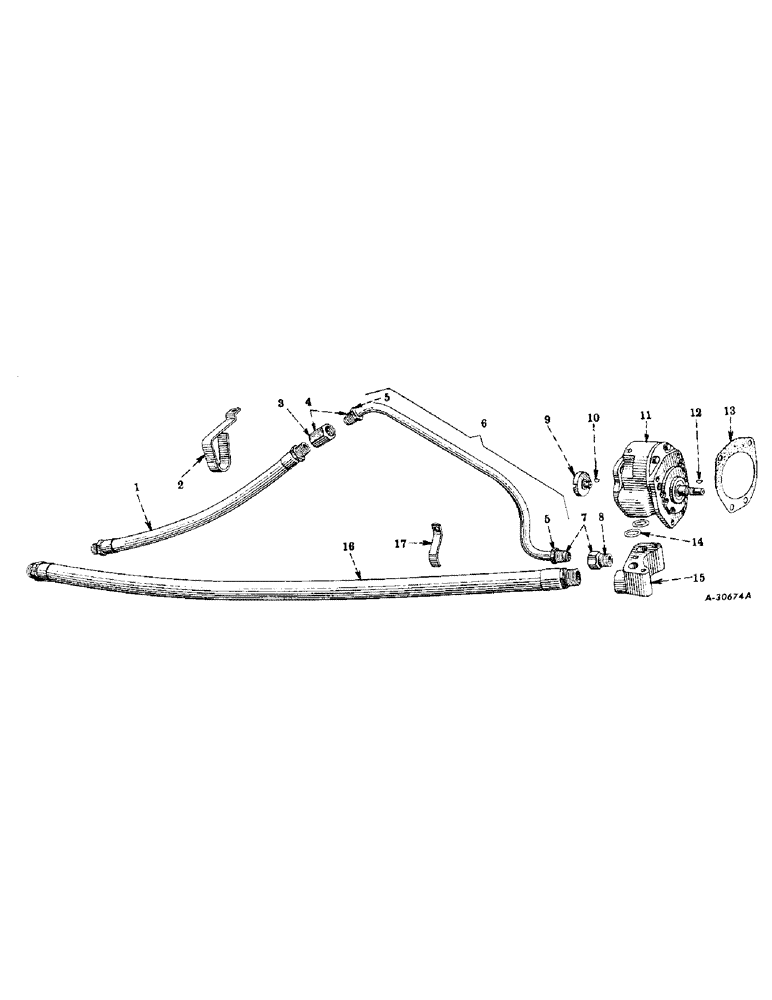

Запчасти Case IH SUPER M-TA (370) - HYDRAULIC SYSTEM, HYD. LIFT-ALL ATTACHMENT W/ENGINE-DRIVEN PUMP, SPECIAL, HYD. PUMP, FLANGE & HOSES (07) - HYDRAULIC SYSTEM

1

358680R91

HOSE, pressure, hydraulic pump, 3/4" I.D. x 25-1/2" (see note B)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

1

359632R91

HOSE, pressure, hydraulic pump, 3/4" I.D. x 25-1/2" (see note B)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

1

360314R91

HOSE, pressure, hydraulic pump, 3/4" I.D. x 25-1/2" (see note B)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

1

359458R91

HOSE, pressure, hydraulic pump, 3/4" I.D. x 30-1/2" (see note C)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

1

360108R91

HOSE, pressure, hydraulic pump, 3/4" I.D. x 30-1/2" (see note C)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

1

358692R91

HOSE, pressure, hydraulic pump, front, 3/4" I.D. x 9-1/2" (see note 1) (see note B)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

1

359631R91

HOSE, pressure, hydraulic pump, front, 3/4" I.D. x 9-1/2" (see note 1) (see note B)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

1

359474R91

HOSE, pressure, hydraulic pump, front, 3/4" I.D. x 10-3/4" (see note 1) (see note C)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

1

360110R91

HOSE, pressure, hydraulic pump, front, 3/4" I.D. x 10-3/4" (see note 1) (see note C)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

2

358465R2

SUPPORT, pressure and suction hose, rear (not used on tractors equipped with remote control tractor attachment)

1шт.

3

358684R1

COUPLING, hydraulic pump high pressure tube

1шт.

4

358684R11

COUPLING, hydraulic pump high pressure tube, 358684R1, w/nut, 359492R1

1шт.

5

359482R1

NUT, hydraulic pump high pressure tube

2шт.

6

358682R11

TUBE, hydraulic pump high pressure, w/two nuts, 359492R1

1шт.

7

358683R1

CONNECTOR, hydraulic pump high pressure tube, 358683R1, w/nut, 359492R1

1шт.

8

358683R1

CONNECTOR, hydraulic pump high pressure tube

1шт.

9

358200R1

COUPLING, magneto, hydraulic pump (Pesco 05-995)

1шт.

189768

KEY

Woodruff, no. 212, 3/32 x 3/8"

1шт.

100874

ASSEMBLY

SCREW, machine, slotted-fl-hd., no. 10-32NF x 1-1/4"

1шт.

114614

WASHER

lock, external-tooth, no. 10

1шт.

10

189768

KEY

Follows reference no. 9

1шт.

11

355554R92

PUMP, gear, hydraulic (Pesco 05-2168-020-02) (includes coupling, 358200R1, key, 189768, screw, 100874 and washer, 114614)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

1шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3-3/4"

2шт.

12

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

13

261203R1

GASKET

hydraulic pump

1шт.

14

350818R1

O-RING,0.984" ID x 0.139" Width

RING, seal, pump flange

2шт.

15

358678R1

FLANGE, hydraulic pump

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 2-3/4"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

16

358679R91

HOSE, suction, hydraulic pump, 1" I.D. x 53" (see note B)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

16

360097R91

HOSE, suction, hydraulic pump, 1" I.D. x 53" (see note B)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

16

360308R91

HOSE, suction, hydraulic pump, 1" I.D. x 53" (see note B)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

16

359456R91

HOSE, suction, hydraulic pump, 1" I.D. x 58" (see note C)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

16

360106R91

HOSE, suction, hydraulic pump, 1" I.D. x 58" (see note C)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

16

360310R91

HOSE, suction, hydraulic pump, 1" I.D. x 58" (see note C)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

16

358477R91

HOSE, suction, hydraulic pump, front, 1" I.D. x 36" (see note 1) (see note B)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

16

360101R91

HOSE, suction, hydraulic pump, front, 1" I.D. x 36" (see note 1) (see note B)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

16

360307R91

HOSE, suction, hydraulic pump, front, 1" I.D. x 36" (see note 1) (see note B)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

16

360112R91

HOSE, suction, hydraulic pump, front, 1" I.D. x 37-1/4" (see note 1) (see note C)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

16

360311R91

HOSE, suction, hydraulic pump, front, 1" I.D. x 37-1/4" (see note 1) (see note C)

1шт.

NOTE 1 - For tractors equipped with hydraulic remote control tractor attachment NOTE B - For tractors F-28175 to F-52627 and L-504802 to L-512541 NOTE C - For tractors 60001 up

1шт.

17

358681R1

SUPPORT, hydraulic pump suction hose, front

1шт.

32445D

STUD

hydraulic pump

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

120930

WASHER

lock, external-tooth 3/8"

1шт.

356889R91

GASKET KIT

PACKAGE, hydraulic pump gasket and seal ring (composed of (1) gasket 261203R1, (1) gasket 354952R1, (1) gasket 356884R1 (NSS), (2) ring 350818R1, (2) ring 356885R1 (NSS), (1) seal 353185R1 (NSS), (2) oil seal 356887R91 (NSS), (2) washer 356886R1 (NSS)

1шт.
