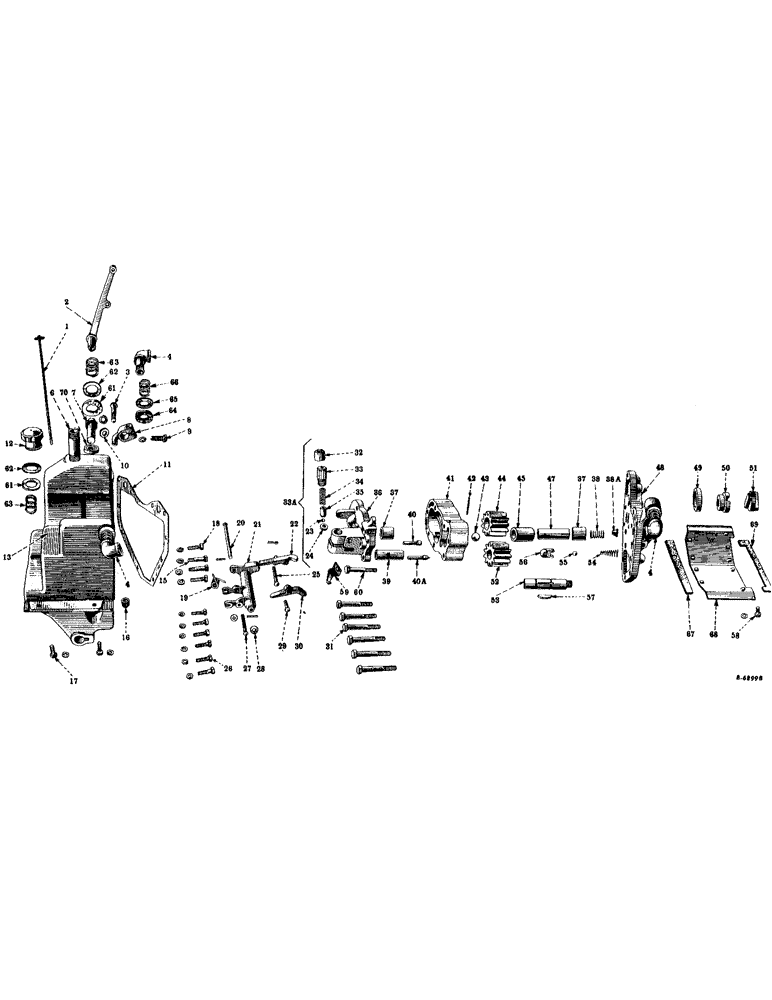

Запчасти Case IH SUPER M-TA (364) - HYDRAULIC SYSTEM, HYDRAULIC LIFT-ALL ATTACHMENT, SPECIAL, PUMP UNIT, COUNTERSHAFT-DRIVEN (07) - HYDRAULIC SYSTEM

1

15158EX

GAUGE

GAGE, oil (for use with breather cap, 5047EX)

1шт.

2

5044EB

LEVER, control, outer

1шт.

3

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

4

15078EB

ELBOW, oil outlet

3шт.

6

16067R1

NIPPLE, pipe, 3/4 x 3-1/4"

1шт.

7

15089EA

SHAFT, control

1шт.

8

5032E

LEVER, inner control shaft

1шт.

9

NLS

NO LONGER SERVICED

SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

10

15010E

KEY, control shaft

1шт.

11

15081E

GASKET

reservoir

1шт.

12

5047EX

CAP

breather (use oil gage, 15158EX)

1шт.

13

5027EE

RESERVOIR, oil

1шт.

15

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-3/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

16

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

3шт.

17

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, 7/16-14NC x 1-1/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

19

15068EB

SPRING

cam valve and piston lever

1шт.

20

15086E

PIN, dld., 3/8 x 6-3/4"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21

5031EA

LEVER, cam and piston valve

1шт.

22

5024EA

CLIP, locking

1шт.

23

16012R1

BALL

steel, 3/8" dia.

1шт.

24

15073E

WASHER

SEAT, ball pressure

1шт.

25

PO14564

AXLE PIN

PIN, headed, dld., 5/16 x 2-3/4"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

26

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

27

Q3533

HEADED PIN,5/16" x 3"

PIN, dld., 5/16 x 3"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

28

Q101

WASHER

plain, 5/16" I.D. x 3/4" O.D. x no. 18 ga.

2шт.

29

15074E

PIN, slotted, cam plate, 5/16 x 1-1/2"

1шт.

30

5020E

PLATE, cam

1шт.

31

355116R1

Follows reference no. 36

6шт.

32

15063EC

CAP, relief valve

1шт.

33

15062E

BODY, relief valve

1шт.

33a

358356R91

VALVE

relief, assembly (will work for 15062EX) (composed of (1) ball 16012R1, (1) body 15062E, (1) cap 15063EC, (1) seat 15073E (1) sleeve 358358R1, (1) spring 15258E)

1шт.

34

15258E

SPRING

relief valve

1шт.

35

358358R1

SLEEVE

relief valve spring

1шт.

36

352429R11

COVER, pump, w/bearing, 550850R91

1шт.

355116R1

SCREW, cap, hex-hd., 1/2NC no. 3 x 3-1/4" (special)

6шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, cap, 1/2 x 3-1/2" hex-hd., 13NC x 3-1/2"

1шт.

37

550850R91

NEEDLE BEARING

pump drive shaft (Torrington B-1616X)

1шт.

38

15056E

SPRING

hold-up ball, F-28817 to F-27466 also F-34846 up

1шт.

F - 2 used - F-501 to F-22816 also F-27467 to F-34845 L - 2 used on tractors not equipped with differential check valve.

1шт.

38a

352783R1

STOP

hold-up ball, F-22817 to F-27466 also F-34846 up

1шт.

F - 2 used - F-501 to F-22816 also F-27467 to F-34845 L - 2 used on tractors not equipped with differential check valve.

1шт.

39

15061EA

PISTON

1шт.

40

15066E

PIN, hold-up ball lift, F-22817 to F-27466 also F-34846 up

1шт.

F - 2 used - F-501 to F-22816 also F-27467 to F-34845 L - 2 used on tractors not equipped with differential check valve.

1шт.

40a

356683R1

PIN, lift, differential check valve

1шт.

F-22817 to F-27466 also F-34846 up L - tractors not so equipped may order complete list of new parts, valve, 356682R1, pin, 356683R1, spring, 356684R1 and ball, 16013R1 for replacement.

1шт.

41

352437R91

BODY

pump, w/shim package, 352431R91

1шт.

42

15257E

SPRING

locking clip

1шт.

43

16024R1

BALL

stl., 3/4" dia., F-22817 to F-27466 also F-34846 up

1шт.

F - 2 used - F-501 to F-22816 also F-27467 to F-34845 L - 2 used on tractors not equipped with differential check valve.

1шт.

44

15052EA

GEAR, pump-driven (11 teeth) (order 352428R93)

1шт.

45

357883R1

BUSHING

pump-driven gear (will work for 550839R91)

1шт.

47

352423R1

PIN

STUD, pump-driven gear

1шт.

48

352430R11

PLATE, back, assembly (composed of (1) bearing 550850R91, (1) plate 352430R1 (NSS), (1) oil seal 43509D, (1) stud 352423R1)

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

6шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

2шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

49

43509D

OIL SEAL

OIL SEAL (optional with 357970R91 or 357976R91)

1шт.

49

357970R91

SEAL

OIL SEAL (optional with 43509D or 357976R91)

1шт.

49

357976R91

SEAL

OIL SEAL (optional with 43509D or 357970R91)

1шт.

50

15060EA

COUPLING

female, pump shaft

1шт.

51

15080E

DOG, driving

1шт.

52

15051EA

GEAR, pump drive (11 teeth) (order 352428R93)

1шт.

53

352420R2

SHAFT

pump drive

1шт.

54

356684R1

SPRING

differential check valve

1шт.

F-22817 to F-27466 also F-34846 up L - tractors not so equipped may order complete list of new parts, valve, 356682R1, pin, 356683R1, spring, 356684R1 and ball, 16013R1 for replacement.

1шт.

55

16013R1

BALL

differential check valve

1шт.

F-22817 to F-27466 also F-34846 up L - tractors not so equipped may order complete list of new parts, valve, 356682R1, pin, 356683R1, spring, 356684R1 and ball, 16013R1 for replacement.

1шт.

56

356682R1

VALVE

differential check

1шт.

F-22817 to F-27466 also F-34846 up L - tractors not so equipped may order complete list of new parts, valve, 356682R1, pin, 356683R1, spring, 356684R1 and ball, 16013R1 for replacement.

1шт.

57

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

KEY, Woodruff, no. 126, 3/16 x 2-1/8"

1шт.

58

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 3/8-16NC x7/8"

2шт.

59

15265E

BRACKET, bearing retainer

1шт.

60

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3-1/2"

1шт.

61

15163E

WASHER,1.03" ID x 2" OD x 0.125" Thk

felt, filler pipe and operator's control rod

2шт.

62

Q357

WASHER, 1-3/32" I.D. x 2" O.D. x no. 18 ga.

3шт.

63

15240E

SPRING

filler pipe and operator's control rod dust seal

2шт.

64

15162E

SEALING WASHER

WASHER, felt, oil outlet elbow

3шт.

65

Q3691

WASHER, plain, 29/32" I.D. x 2" O.D. x no. 22 ga.

3шт.

66

15164EA

SPRING, oil outlet elbow dust seal (3-1/2" coils)

3шт.

67

15179EA

STRIP, rear cover plate rear

1шт.

68

15083EA

PLATE, rear cover

1шт.

69

15178EA

STRIP

felt, rear cover plate front

1шт.

70

494027R1

OIL SEAL, control shaft (used with shaft 15089EA)

1шт.

15259E

GASKET

relief valve (1/64" vellumoid)

1шт.

352428R93

GEAR

PACKAGE, pump gear (consists of (1) bushing 357882R1 (NSS), (1) gear 15051EA (NSS), (1) gear 15052EA (NSS), (1) key 144542, (1) shaft 352420R2)

1шт.

352431R91

SHIM KIT

PACKAGE, shim, pump body

1шт.
