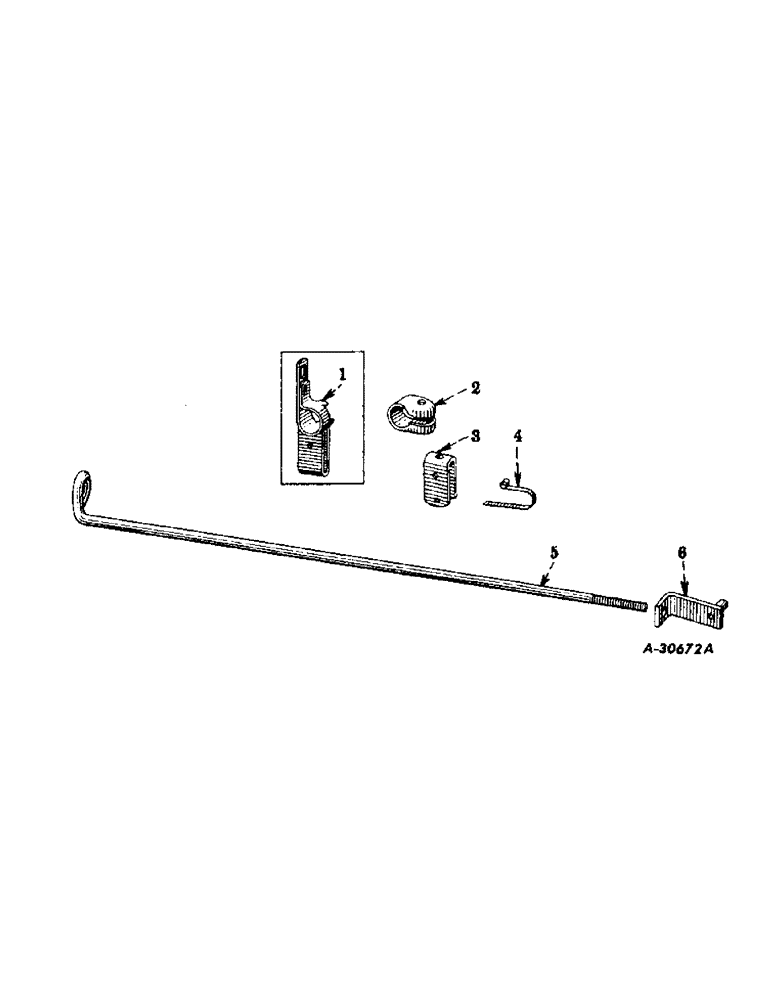

Запчасти Case IH SUPER M-TA (363) - HYDRAULIC SYSTEM, HYD. LIFT-ALL ATTACHMENT, W/ENGINE DRIVEN PUMP, SPECIAL, CONTROL ROD & SUPPORTS (07) - HYDRAULIC SYSTEM

1

358455R91

SUPPORT, control rod (not used on tractors equipped with liquefied petroleum gas) (order 360873R91)

1шт.

220065

NUT, hex., 5/16-18NC

1шт.

179813

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

356543R1

CLAMP

control rod

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

181321

BOLT,Hex, 1/4" - 28 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 1-3/4"

1шт.

95-11028

WASHER,1/4"

plain, 3/32" I.D. x 5/8" O.D. x no. 16 ga.

1шт.

3

359750R1

SUPPORT, control rod

1шт.

17054R1

LOCK PIN,3/16" x 7/8", Slotted

Pin, 3/16" x 7/8", Slotted

2шт.

4

15137E

SPRING

control rod

1шт.

5

358458R11

ROD, control

1шт.

5

359361R11

ROD, control (super "M" and "MV") (liquefied petroleum gas)

1шт.

6

15301EX

END, adjusting, control rod

1шт.

280136

NUT,3/8"-16, G8

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

127507H

WASHER

plain, 13/32" I.D. x 7/8" O.D. x no. 7 ga.

1шт.

360873R91

PACKAGE, service, operator's control rod support (will work for 358455R91) (consists of (1) clamp 356543R1, (1) nut 103025, (2) pin 17054R1, (1) screw 181345, (1) support 359750R1, (1) support 359709R1)

1шт.

359709R91

SUPPORT, hydraulic remote control rod (illustrated with hydraulic remote control rod and connections)

1шт.
