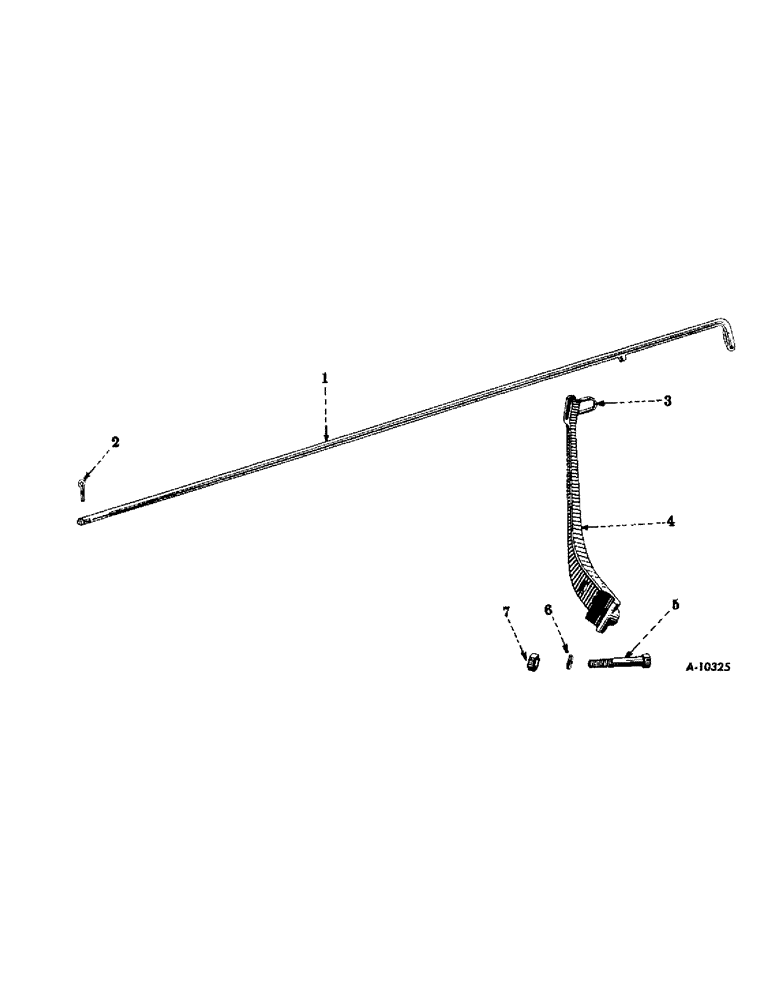

Запчасти Case IH SUPER M-TA (362) - HYDRAULIC SYSTEM, HYD. LIFT-ALL ATTACH., W/COUNTERSHAFT-DRIVEN PUMP, SPECIAL, CONTROL ROD & BRACKET (07) - HYDRAULIC SYSTEM

1

15092EX

ROD, control

1шт.

2

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

3

15137E

SPRING

control rod

1шт.

4

5013EAX

BRACKET, control rod, 5013EA, w/rivet, 107162 and spring, 15137E

1шт.

107162

WASHER

RIVET, truss-hd., 3/16 x 1-1/8"

1шт.

5

12406R1

SCREW, cap, hex-hd., 7/16-14NC x 2-7/8"

1шт.

6

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

7

114773

NUT, hex, 7/16"

1шт.
