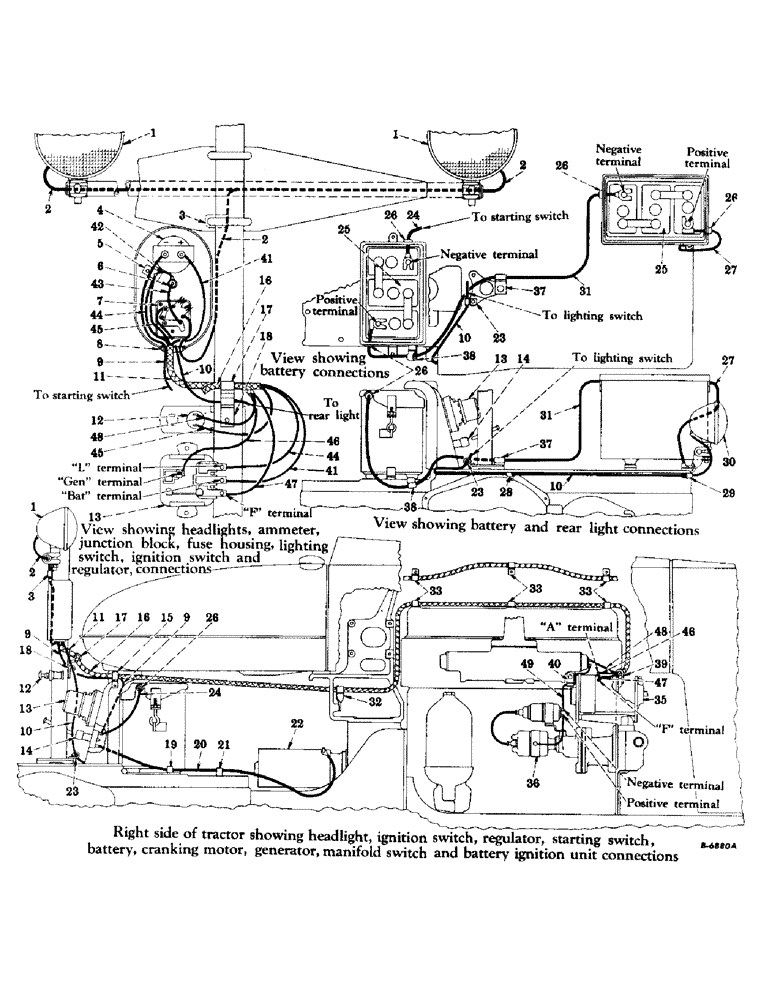

Запчасти Case IH SUPER M-TA (186) - ELECTRICAL SYSTEM, DIESEL ENGINE, ELECTRIC STARTING AND LIGHTING, BATTERY IGNITION (06) - ELECTRICAL SYSTEMS

1

61225DB

LAMP

HEADLIGHT (guide lamp no. 873-25) (for components see list of parts under detail fo "headlights or rear light")

2шт.

220068

NUT, hex., 1/2-13NC

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

52973DA

HARNESS

headlight cable

1шт.

3

350742R1

CLIP (on lower "U" bolt of headlight support bracket)

1шт.

4

42383DC

AMMETER

(AC-1501438) (includes clamp, 250466R92, four nut, 120614 and two washer, 120217) (optional with 354473R91)

1шт.

4

354473R91

AMMETER

(Rochester 4010-C6) (includes clamp, 352154R91, four nut, 120614, two washer, 120217 and two washer, 352265R1) (optional with 42383DC)

1шт.

4

360053R91

INDICATOR

charge (Rochester Mfg. 4015-C1) (includes clamp, 360054R91, four nut, 120614, two washer, 120217 and two washer, 352265R1)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

42915D

BLOCK

junction, instrument panel

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

110503

SCREW, machine, slotted-rd-hd., no. 10-24NC x 7/8"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

6

354232R91

BOX

HOUSING, fuse w/knob 356445R91 (Bussman Mfg. Co.)

1шт.

7

SWITCH, lighting (Delco-Remy 1994043) (for components see list of parts under detail of "lighting switch")

1шт.

8

52062D

GROMMET

on instrument panel cover

1шт.

9

358120R91

CABLE

ammeter to starting switch

1шт.

10

358121R91

CABLE

switch to rear light (will work for 61599D)

1шт.

11

355703R91

HARNESS, regulator cable

1шт.

12

62801DC

SWITCH

battery ignition (for components see list of parts under detail of "battery ignition switch")

1шт.

13

355701R91

REGULATOR

voltage (Delco-Remy 1118381) (for components see list of parts under detail of "voltage regulator")

1шт.

13000R1

NUT, hex., 1/4-20NC

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

356913R91

SWITCH

starting

1шт.

13000R1

NUT, hex., 1/4-20NC

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

slotted-rd-hd., 1/4-20NC x 1/2"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

56273D

CLIP (on rear fuel tank support, upper hole, right side)

1шт.

13000R1

NUT, hex., 1/4-20NC

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

355702R91

HARNESS, cable

1шт.

17

355704R1

CLIP (on control bracket mounting bolt)

1шт.

18

355098R1

CLIP (on control bracket mounting bolt)

1шт.

19

56277D

CLIP (on main frame cover, front bolt)

1шт.

20

62510DA

CABLE ASSY.

CABLE (starting switch to cranking motor)

1шт.

21

56277D

CLIP (on main frame cover, front bolt)

1шт.

22

61061DA

MOTOR, cranking (Delco-Remy 1108913) (bendix type) (for components see list of parts under detail of "cranking motor")

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

23

355098R1

CLIP (on steering post base, L.H. front mounting bolt)

1шт.

24

62509DB

CABLE

battery to starting switch

1шт.

24

360455R91

CABLE, battery to starting switch (used with hydraulic seat suspension and battery box package 360454R91)

1шт.

25

60910DC

BATTERY (Auto-Lite 2H-105R3) (optional with 356862R91)

2шт.

25

356862R91

BATTERY (Globe-Union 2HI) (optional with 60910DC)

2шт.

26

24179D

GROMMET,5/8" ID x 7/8" Groove Dia

battery box

4шт.

27

62507DA

CABLE

, Serial Range: battery-ground

1шт.

27

39265DA

CABLE, battery to ground (tractors with remote control)

1шт.

28

351794R1

CLIP (on brake housing mounting bolt, upper bolt, rear)

1шт.

29

351794R1

CLIP (on rear frame cover)

1шт.

280136

NUT,3/8"-16, G8

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

30

61225DB

LAMP

LIGHT, rear (guide lamp 873-25) (for components see list of parts under detail of "headlights or rear light")

1шт.

220068

NUT, hex., 1/2-13NC

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

31

62508DA

CABLE, Serial Range: battery-battery

1шт.

32

62505D

CLIP (on fuel tank front support)

1шт.

33

355097R1

CLIPS (on valve cover studs)

3шт.

35

355694R91

GENERATOR (Delco-Remy 1100964) (for components see list of parts under detail of "generator")

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

36

356610R91

UNIT, battery ignition (for components see list of parts under detail of "battery ignition" unit)

1шт.

37

62512D

CLIP (on steering post base bolt, rear)

1шт.

38

62511D

CLIP (on third bolt from front of rear frame cover, left side)

1шт.

39

355098R1

CLIP (on water pump upper R.H. mounting bolt)

1шт.

40

263308R91

CLIP (on front lower mounting bolt of intake manifold)

1шт.

446211

WASHER, plain, 7/16" I.D. x 7/8" O.D. x 1/16"

1шт.

41

CABLE, regulator "BAT" terminal to ammeter (natural with black and red cross tracers) (order 355702R91)

1шт.

42

CABLE, fuse housing to junction block (used with 354232R91)

1шт.

43

CABLE, fuse housing to lighting switch (used with 354232R91)

1шт.

44

CABLE, regulator "L" terminal to junction block (natural with green cross tracers) (order 355702R91)

1шт.

45

CABLE, ignition switch to junction block (natural with black cross tracers) (order 355702R91)

1шт.

46

CABLE, regulator "GEN" terminal to generator "A" terminal (natural with red cross tracers) (order 355702R91)

1шт.

47

CABLE, regulator "F" terminal to generator "F" terminal (natural with black tracers) (order 355702R91)

1шт.

48

CABLE, ignition switch to manifold switch (order 355702R91)

1шт.

49

266768R91

CABLE, manifold switch to coil (will work for 254272R11)

1шт.

356062R91

BOLT

AND NUT, battery to ground cable

1шт.

356062R91

BOLT

AND NUT, battery to starting switch cable

1шт.

250466R92

CLAMP, ammeter (AC-1501309) (used with ammeter, 42383DC)

1шт.

352154R91

CLAMP, ammeter (Rochester 4000-3) (used with ammeter, 354473R91)

1шт.

360054R91

CLAMP, charge indicator (Rochester 4015-D) (used with indicator, 360053R91)

1шт.

359165R91

COVER, electrical instrument mounting panel (will work for 51765DAX)

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10815V

FUSE

10 ampere

1шт.

354262R1

PANEL, electric instrument mounting

1шт.

432465

PLUG, dust, fuse housing hole (see note)

1шт.

432491

PLUG, dust, lighting switch hole (see note)

1шт.

355705R91

ROD, choke control

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16 x 1/2"

1шт.

Q1249

ROD, starting switch control

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

51063DA

SCREW

electrical instrument mounting panel

2шт.

225-10108

NUT,#8-32

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

354260R1

SPACER,1/8" Pipe x 7/16"

instrument panel junction block

1шт.

352265R1

WASHER, mounting clamp (Rochester 4000-28-C) (used with ammeter, 354473R91 and indicator, 360053R91)

1шт.
