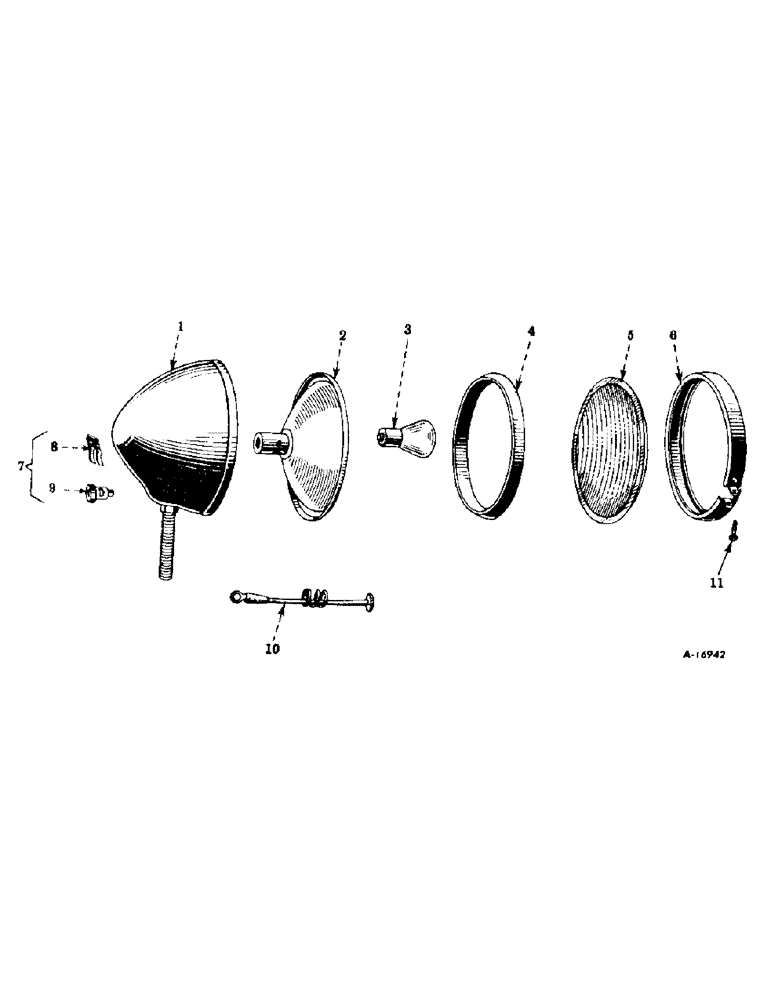

Запчасти Case IH SUPER M (178) - ELECTRICAL SYSTEM, DIESEL ENGINE, HEADLIGHT OR REAR LIGHT, CONVENTIONAL, GUIDE LAMP CORP. (06) - ELECTRICAL SYSTEMS

61225DB

LAMP

HEADLIGHT OR REAR LIGHT, assembly (12 volt) (Mfr. 873-25)

1шт.

220068

NUT, hex., 1/2-13NC

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

1

53522DA

BODY (Mfr. 5939959)

1шт.

2

53523D

REFLECTOR (Mfr. 923119)

1шт.

3

A41264

BULB,#1156, 12V

LAMP (32 candle power, 12/16 volt) (Mfr. 1143)

1шт.

4

53527D

GASKET

(Mfr. 924639)

1шт.

5

350478R1

LENS

(Mfr. 5936059)

1шт.

6

53525DA

MOLDING

MOULDING (Mfr. 5939960)

1шт.

7

68417D

INSULATOR

PLATE, terminal, assembly (composed of (1) plate 79407H, (2) screw 121749, (1) spring 79408H, (2) washer 138530) (Mfr. 5935509)

1шт.

8

79408H

SPRING, terminal plate (Mfr. 922785)

1шт.

9

79407H

PLATE

terminal (Mfr. 922786)

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

slotted-rd-hd., cd-pltd., no. 8-32NC x 5/16" (Mfr. 121749)

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, (Mfr. 138530) Int Tooth, #8

2шт.

10

53524D

CABLE (Mfr. 924209)

1шт.

11

53526D

SCREW

moulding (Mfr. 912048)

1шт.
