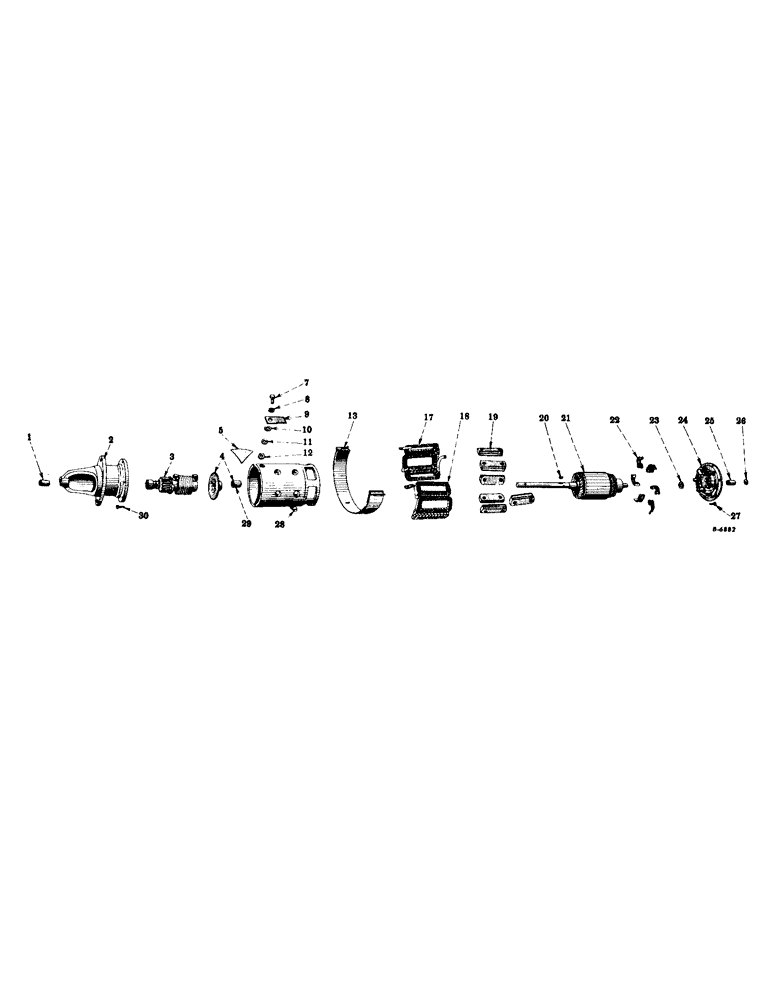

Запчасти Case IH SUPER M (174) - ELECTRICAL SYSTEM, DIESEL ENGINE, CRANKING MOTOR, DELCO-REMY, FOR TRACTORS F-501 TO F-28174 (06) - ELECTRICAL SYSTEMS

61061DA

MOTOR, cranking (Mfr. 1108913)

1шт.

1

BUSHING, drive housing (Mfr. 812410)

1шт.

2

HOUSING, drive, w/bushing, 812410 (Mfr. 1878774)

1шт.

3

DRIVE, motor (composed of (1) gear and shaft 1883676, (1) head 1850037, (1) ring 1861234, (1) screw 1850040, (1) screw 1850039, (1) spring 1853477, (2) washer 805057) (Mfr. 1883648)

1шт.

4

BEARING, center, w/bushing, 820148 (Mfr. 820149)

1шт.

SCREW, slotted-rd-hd., blued, no. 10-32NF x 5/16" (Mfr.142210)

2шт.

WASHER, lock, medium, no. 10 (special) (Mfr. 802731)

2шт.

5

STRIP, insulation, field coil (Mfr. 1868810)

1шт.

7

STUD, terminal (Mfr. 826938)

1шт.

NUT, hex., cd-pltd., 3/8-16NC

1шт.

WASHER, lock, light, 3/8" (Mfr. 110730)

2шт.

8

WASHER, insulating, terminal stud (Mfr. 1904669)

3шт.

9

STRIP, insulation, field coil (Mfr. 33345)

1шт.

10

WASHER, insulating, terminal stud (Mfr. 1861076)

2шт.

11

WASHER, terminal stud, plain (Mfr. 805790)

2шт.

12

NUT, terminal stud (Mfr. 805258)

1шт.

13

BAND, cover (Mfr. 1880355)

1шт.

17

COIL, field, L.H. (Mfr. 38279)

1шт.

18

COIL, field, R.H. (Mfr. 38278)

1шт.

19

SHOE, pole (Mfr. 36497)

6шт.

20

KEY, Woodruff, 6, 5/32, x 5/8"

1шт.

21

ARMATURE (Mfr. 1857480)

1шт.

22

BRUSH (Mfr. 38367)

6шт.

SCREW, slotted-rd-hd., cd-pltd., no. 8-32NC x .5/16" (Mfr. 121749)

6шт.

WASHER, lock, medium, no. 8 (Mfr. 106496)

6шт.

23

WASHER, space, commutator end (Mfr. 817051)

1шт.

24

FRAME, end, commutator (Mfr. 38290)

1шт.

25

BUSHING, commutator end frame (Mfr. 38296)

1шт.

26

PLUG, commutator end frame

1шт.

27

SCREW, attaching, commutator end frame

6шт.

WASHER, lock, medium, no. 10

6шт.

28

SCREW, pole shoe (Mfr. 1843646)

12шт.

29

BUSHING, center bearing (Mfr. 820148)

1шт.

30

SCREW, attaching, drive housing (Mfr. 37872)

6шт.

WASHER, lock, medium, no. 10 (Mfr. 106497)

6шт.

GEAR AND SHAFT, motor drive (Mfr. 1883676)

1шт.

HEAD, motor drive (Mfr. 1850037)

1шт.

RING, take-up, motor drive (Mfr. 1861234)

1шт.

SCREW, motor drive spring (at head) (Mfr. 1850040)

1шт.

SCREW, motor drive spring (shaft end)

1шт.

SPRING, motor drive (Mfr. 1853477)

1шт.

WASHER, lock, drive spring screw (Mfr. 805057)

2шт.
