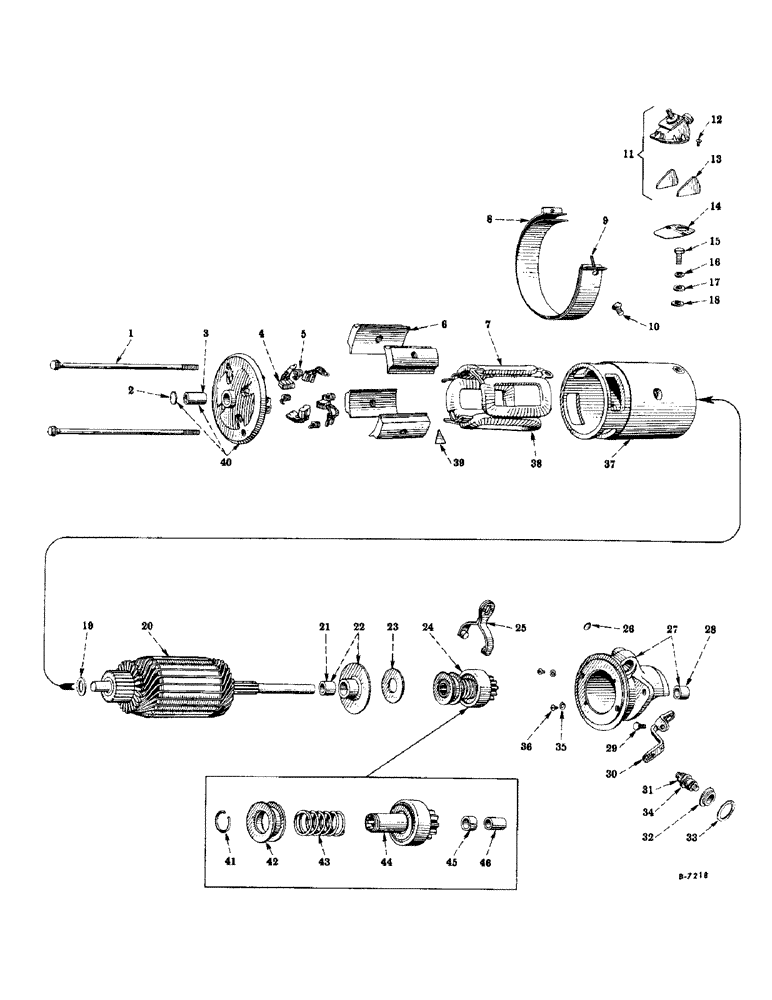

Запчасти Case IH SUPER M (170) - ELECTRICAL SYSTEM, DIESEL ENGINE, CRANKING MOTOR, DELCO-REMY, FOR TRACTORS F-28175 UP (06) - ELECTRICAL SYSTEMS

357908R91

MOTOR, cranking (Mfr. 1108982)

1шт.

BOLT, thru (Mfr. 812291)

2шт.

WASHER, lock, cd-pltd., 5/16" (Mfr. 120214)

2шт.

2

PLUG, commutator end frame (Mfr. 1865182)

1шт.

3

BUSHING, commutator end frame (Mfr. 810620)

1шт.

4

BRUSH (Mfr. 1906909)

4шт.

SCREW, slotted-rd-hd., cd-pltd., no. 8-32NC x 5/16" (Mfr. 121749)

4шт.

WASHER, lock, cd-pltd., no. 8

4шт.

5

SPRING, brush (Mfr. 1961785)

4шт.

6

SHOE, pole (Mfr. 1909481)

4шт.

7

COIL, field, upper (2 coils) (Mfr. 1918510)

1шт.

8

BAND, cover (Mfr. 1889664)

1шт.

9

SCREW, mach., slotted-rd-hd., cd-pltd., no. 10-32NF (Mfr. 132926)

1шт.

10

SCREW, pole shoe (Mfr. 1843646)

4шт.

11

SWITCH, starting (composed of (2) insulator 816911, (1) nut 134566, (1) switch (NSS), (1) washer 120381, (1) washer 812622) (Mfr. 1924754)

1шт.

NUT, hex., cd-pltd., 3/8NC (Mfr. 134566)

1шт.

WASHER, lock, cd-pltd., 3/8" (Mfr. 120381)

1шт.

WASHER, plain, switch terminal (Mfr. 812622)

1шт.

12

SCREW, switch attaching (Mfr. 1904613)

2шт.

WASHER, lock, cd-pltd., no. 10 (Mfr. 120217)

2шт.

13

INSULATOR, switch side (Mfr. 816911)

2шт.

14

GASKET, starting switch (Mfr. 1912376)

1шт.

15

TERMINAL (Mfr. 1909809)

1шт.

NUT, terminal (Mfr. 805258)

1шт.

WASHER, plain, terminal (Mfr. 812622)

2шт.

16

WASHER, insulating, terminal (9/16" O.D.) (Mfr. 1904669)

3шт.

17

WASHER, insulating, terminal (outside) (Mfr. 1842057)

1шт.

18

WASHER, insulating, terminal (inside) (3/4" O.D.) (Mfr. 1861076)

1шт.

19

WASHER, space, commutator end (Mfr. 833602)

1шт.

20

ARMATURE (Mfr. 1918929)

1шт.

21

BUSHING, center bearing (Mfr. 820148)

1шт.

22

BEARING, center, w/bushing, 820148 (Mfr. 820149)

1шт.

23

WASHER, space, drive end (Mfr. 1884025)

1шт.

24

DRIVE, motor (composed of (1) bushing 37535, (1) bushing 37522, (1) collar 1838436, (1) gear and shaft (NSS), (1) spring 37517, (1) wire 37521) (Mfr. 1912835)

1шт.

25

LEVER, shift, lower (Mfr. 1910848)

1шт.

26

PLUG, expansion (on drive housing) (Mfr. 454648)

1шт.

27

HOUSING, motor drive, w/bushing, 810620 (Mfr. 1924751)

1шт.

28

BUSHING, motor drive housing (Mfr. 810620)

1шт.

29

SCREW, adjusting, shift lever (Mfr. 1918537)

1шт.

NUT, shift lever adjusting screw (Mfr. 134551)

1шт.

WASHER, lock, medium, cd-pltd., 1/4"

1шт.

30

LEVER, shift, upper (Mfr. 1924752)

1шт.

31

SHAFT, lever (Mfr. 1924753)

1шт.

NUT, upper lever (Mfr. 812479)

1шт.

WASHER, plain, upper lever nut (Mfr. 812622)

1шт.

WASHER, lock, light, cd-pltd., 3/8" (Mfr. 120381)

1шт.

WASHER, plain, lever shaft attaching nut (Mfr. 807736)

1шт.

32

NUT, attaching, lever shaft (Mfr. 1924765)

1шт.

33

GASKET, lever shaft attaching nut (Mfr. 1916267)

1шт.

34

RING, packing, lever shaft (Mfr. 1911165)

1шт.

35

WASHER, lock, center bearing attaching screw (Mfr. 1880781)

2шт.

36

SCREW, attaching, center bearing (Mfr. 1904613)

2шт.

37

FRAME (not serviced separately)

1шт.

38

COIL, field, lower (2 coils) (Mfr. 1918516)

1шт.

39

INSULATOR, field coil (Triangle) (Mfr. 1913534)

2шт.

40

FRAME, end, commutator, w/bushing, 810620, pin, 809062 and plug, 1865182 (Mfr. 1924757)

1шт.

41

WIRE, lock, motor drive (Mfr. 37521)

1шт.

42

COLLAR, motor drive (Mfr. 1838436)

1шт.

43

SPRING, motor drive (Mfr. 37517)

1шт.

44

GEAR AND SHAFT (not serviced separately, order 1912835)

1шт.

45

BUSHING, steel, split, motor drive (Mfr. 37522)

1шт.

46

BUSHING, oilless, motor drive (Mfr. 37535)

1шт.

PIN, dowel, drive end (Mfr. 809593)

1шт.

PIN, dowel, commutator end frame (Mfr. 809062)

1шт.
