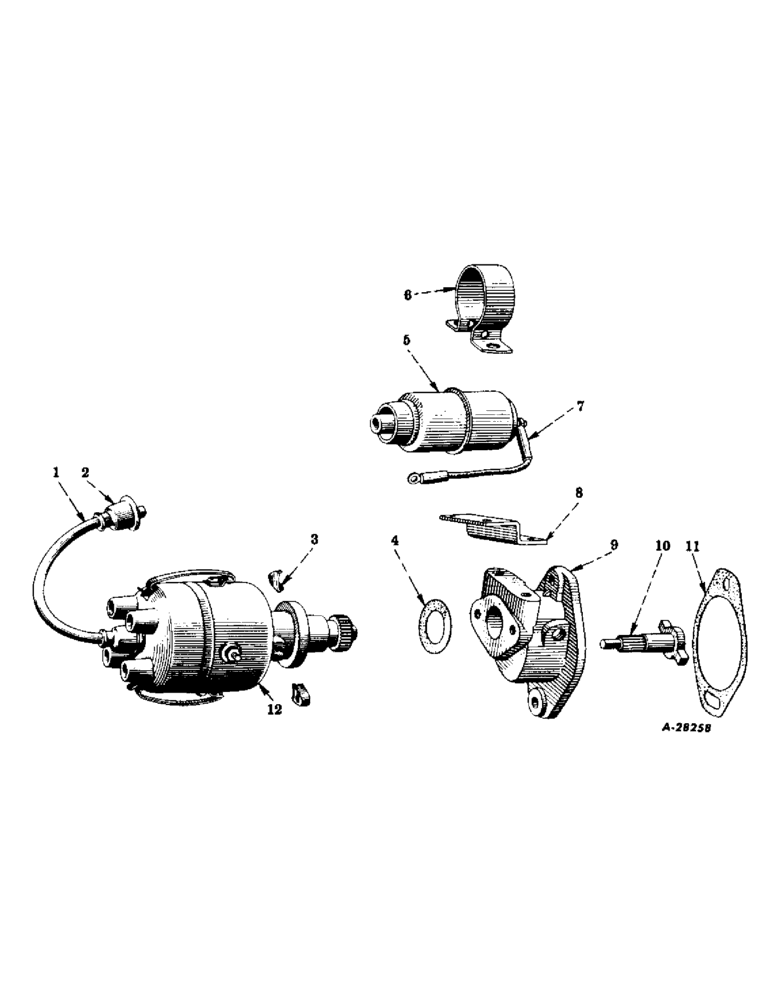

Запчасти Case IH SUPER M (154) - ELECTRICAL SYSTEM, DIESEL ENGINE, BATTERY IGNITION UNIT (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
356610R91
UNIT, battery ignition (less reference no. 11)
1шт.
1
356686R92
CABLE
secondary, coil to distributor, w/two nipples, 251553R1
1шт.
2
251553R1
BOOT
NIPPLE
2шт.
3
353937R1
CLIP
CLAMP, distributor
2шт.
180078
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
SCREW, cap, hex-hd., cd-pltd., 5/16-18NC x 7/8"
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
4
353936R2
GASKET
distributor
1шт.
5
353875R91
COIL
ignition (12 volt)
1шт.
5
396547R93GV
COIL
Value, Ignition Coil
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
2шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
6
353889R1
CLAMP
coil
1шт.
220070
FITTING
NUT, hex., cd-pltd., 5/16-18NC
2шт.
120611
NUT,#10 - 32
square, cd-pltd., no. 10-32NF
1шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
SCREW, cap, hex-hd., cd-pltd., 5/16-18NC x 5/8"
2шт.
132926
SCREW,Sl Rnd Hd, #10 - 32 x 1/4"
slotted-rd-hd., cd-pltd., no. 10-32NF x 1-1/4"
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, plain, cd-pltd., 5/16"
4шт.
7
353942R11
CABLE, primary, Serial Range: coil-distributor
1шт.
8
353941R1
BRACKET, ignition coil
1шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
SCREW, cap, hex-hd., cd-pltd., 5/16-18NC x 5/8"
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120393
BEARING WASHER,5/16", SAE
WASHER, plain, cd-pltd., 5/16"
2шт.
9
353933R11
HOUSING, distributor drive
1шт.
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
PLUG, PIPE, Slotted, Headless, 1/8" NPT
1шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
cap, hex-hd., 3/8-16NC x 1-1/4"
1шт.
179846
LEVER
hex-hd., 3/8-16NC x 1-7/8"
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
10
353934R11
SHAFT
distributor drive
1шт.
11
55780DD
GASKET
distributor drive housing
1шт.
12
356657R91
DISTRIBUTOR
assembly
1шт.
Выбрано товаров: 32
