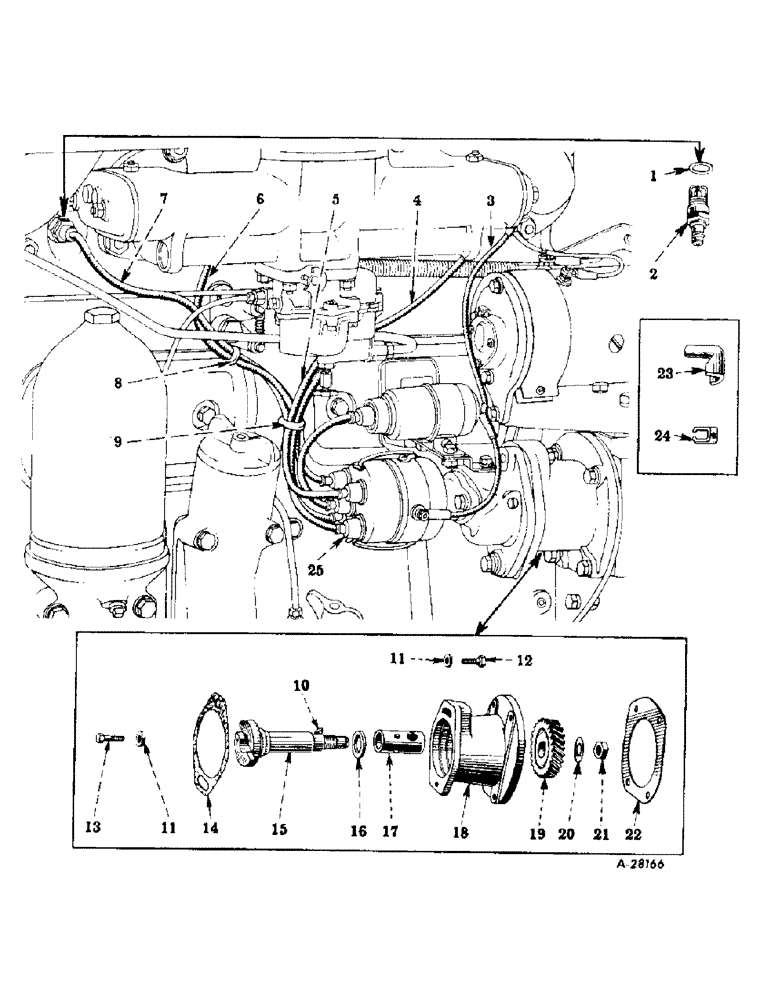

Запчасти Case IH SUPER M (152) - ELECTRICAL SYSTEM - DIESEL ENGINE, SPARK PLUGS, CABLES, DISTRIBUTOR OR MAGNETO DRIVE AND BRACKET (06) - ELECTRICAL SYSTEMS

1

37762H

GASKET

spark plug

4шт.

2

262456R91

HEATER PLUG

PLUG, spark (Champion 49)

4шт.

2

50309DC

PLUG, spark (AC 18-A)

4шт.

2

258938R93

SPARK PLUG

PLUG, spark (Auto-Lite BT-15)

4шт.

3

266768R91

CABLE, coil to manifold switch (will work for 254272R11)

1шт.

4

266783R91

CABLE, spark plug, no. 1, w/nipple, 251553R1 (will work for 65342D)

1шт.

5

266778R91

CABLE, spark plug, no. 2, w/nipple, 251553R1 (will work for 65323D)

1шт.

6

266780R91

CABLE, spark plug, no. 3, w/nipple, 251553R1 (will work for 65333D)

1шт.

7

267826R91

CABLE, spark plug, no. 4, w/nipple, 251553R1 (will work for 65334D)

1шт.

8

263314R1

RING, rubber, 3/8" I.D.

2шт.

9

263313R1

RING, rubber, 9/16" I.D.

1шт.

10

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

Distributor unit drive gear #3, 1/8" x 1/2", HT

1шт.

11

24523D

WASHER

battery ignition bolt (2 used with magneto ignition)

1шт.

12

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

hex-hd., 3/8-16NC x 1-7/8" (See note)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (used with battery ignition)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

(Used with magneto ignition) Hex, 3/8"-16 x 1 1/2", G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

55780DD

GASKET

distributor or magneto flange

1шт.

15

352560R1

SHAFT, distributor or magneto drive (see note)

1шт.

16

352080R91

SEAL

OIL SEAL, distributor or magneto drive shaft (optional with 358839R91) (see note)

1шт.

16

358839R91

SEAL

OIL SEAL, distributor or magneto drive shaft (optional with 352080R91) (see note)

1шт.

17

24473DA

BUSHING

distributor or magneto drive shaft (see note)

1шт.

18

261206R11

BRACKET, distributor or magneto, w/bushing, 24473DA and oil seal, 352080R91 (see note)

1шт.

179842

SPACER

cap, hex-hd., 3/8-16NC x 1-3/8"

4шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external tooth, 3/8"

4шт.

19

261220R1

GEAR, distributor or magneto drive

1шт.

20

45003D

WASHER

LOCK, distributor or magneto gear nut

1шт.

21

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

22

261203R1

GASKET

distributor or magneto (see note)

1шт.

23

84319H

TERMINAL CONNECTOR

TERMINAL, spark plug cable (snap-on-type)

4шт.

24

37291D

TERMINAL CONNECTOR

TERMINAL, spark plug cable (push-type)

4шт.

25

251553R1

BOOT

NIPPLE, spark plug cable

4шт.
