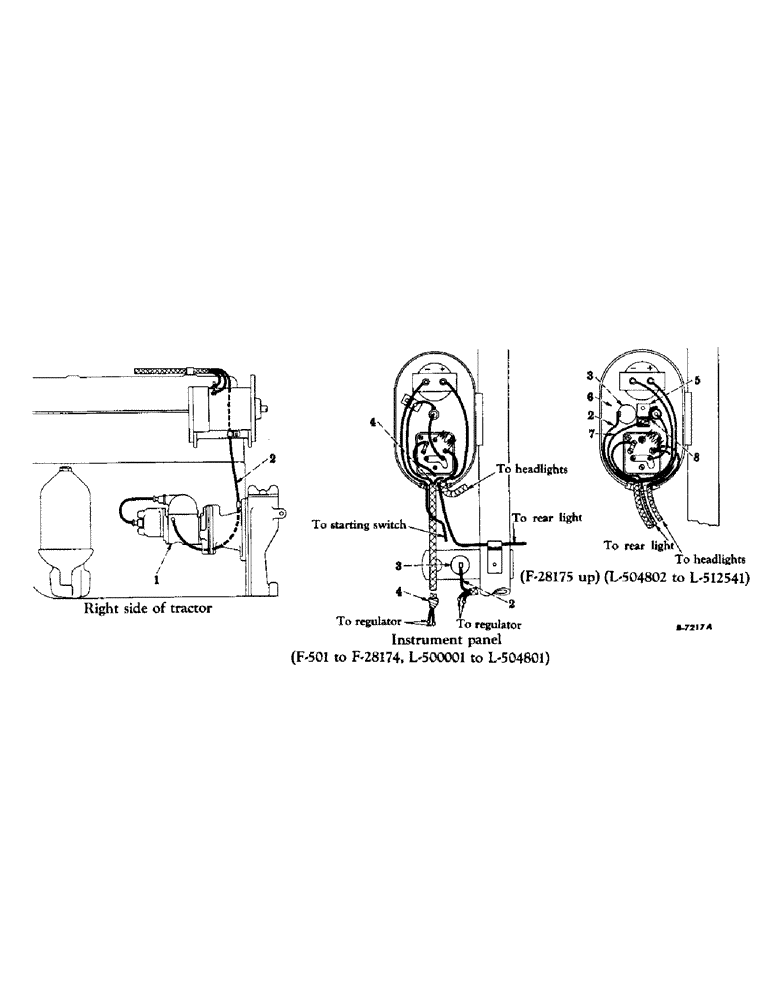

Запчасти Case IH SUPER M (150) - ELECTRICAL SYSTEM, CARBURETED ENGINE, ELECTRICAL STARTING AND LIGHTING, MAGNETO IGNITION (06) - ELECTRICAL SYSTEMS

54438DF

ATTACHMENT, starting and lighting (see note A)

1шт.

359295R92

ATTACHMENT, starting and lighting (see note B)

1шт.

359564R92

ATTACHMENT

starting and lighting (see note C)

1шт.

1

351218R92

MAGNETO

assembly (for component parts see list of parts under detail of "magneto")

1шт.

2

CABLE, ignition switch to magneto (order 354296R91) (see note A)

1шт.

2

CABLE, ignition switch to magneto (order 358286R91) (see note B)

1шт.

2

CABLE, ignition switch to magneto (order 358992R91) (see note C)

1шт.

3

54207DB

SWITCH

magneto ignition, assembly (for component parts see list of parts under detail of "magneto ignition switch")

1шт.

4

CABLE, natural with black cross tracers (taped) (not used with magneto ignition)

1шт.

5

42915D

BLOCK

junction

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

110531

SCREW

slotted rd-hd., no. 10-24NC x 7/8"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

6

358440R1

PANEL, instrument

1шт.

7

CABLE, junction block to regulator "L" terminal (natural with green cross tracers) (order 358286R91) (see note B)

1шт.

7

CABLE, junction block to regulator "L" terminal (natural with green cross tracers) (order 358992R91) (see note C)

1шт.

8

CABLE, fuse housing to junction block (used with fuse housing)

1шт.
