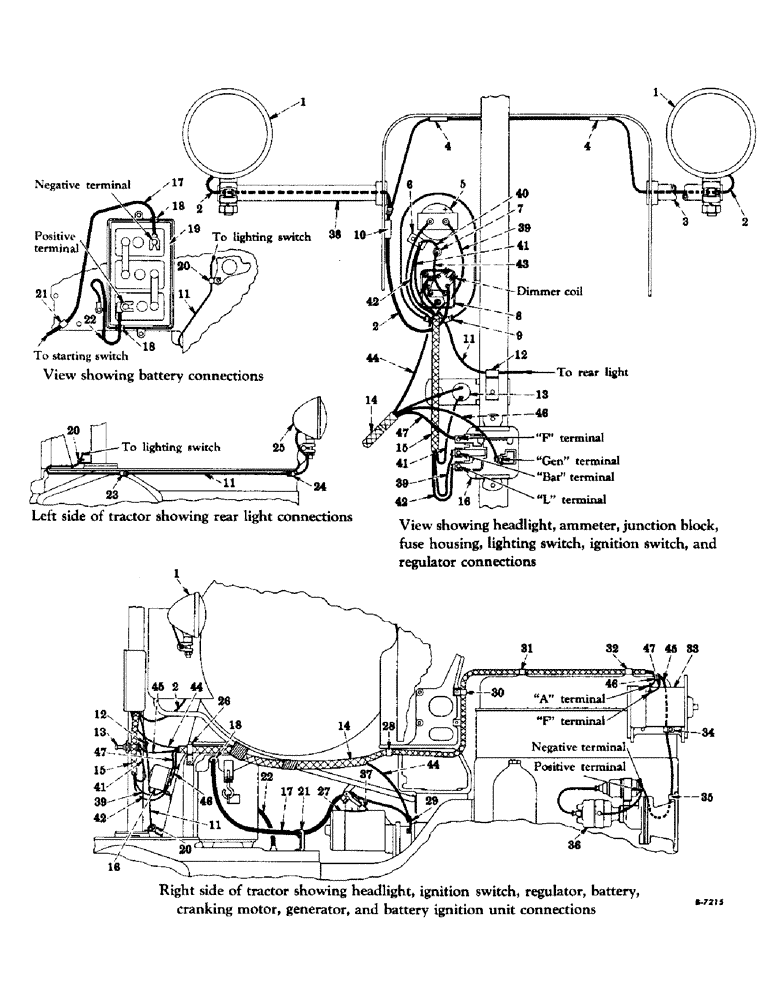

Запчасти Case IH SUPER M (142) - ELECTRICAL SYSTEM, CARBURETED ENGINE, ELECTRICAL STARTING AND LIGHTING, BATTERY IGNITION (06) - ELECTRICAL SYSTEMS

1

45640DB

LAMP

HEADLIGHT (guide lamp 873-24) (for components see list of parts under detail of "headlights or rear light")

2шт.

2

357097R91

HARNESS, headlight cable

1шт.

3

357072R1F

PIPE, headlight support, R.H.

1шт.

4

352107R91

CLIP, headlight cable (on valve guard top)

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

slotted-rd-hd., 1/4-20NC x 1/2"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

42383DC

AMMETER

(AC-1501438) (includes clamp, 250466R92, four nut, 120614 and two washers, 120217) (optional with 354473R91)

1шт.

5

354473R91

AMMETER

(Rochester 4010-C6) (includes clamp, 352154R91, four nut, 120614, two washers, 120217 and two washers, 352265R1) (optional with 42383DC)

1шт.

5

360053R91

INDICATOR

charge (Rochester Mfg. 4015-C1) (includes clamp, 360054R91, four nut, 120614, two washers, 120217 and two washers, 352265R1)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

42915D

BLOCK

junction, instrument panel

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

110503

SCREW, machine, slotted-rd-hd., no. 10-24NC x 7/8"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

7

354232R91

BOX

HOUSING, fuse, w/knob 356445R91 (Bussman Mfg. Co.)

1шт.

8

SWITCH, lighting, assembly (Delco-Remy 1994038) (for components see list of parts under detail of "lighting switch")

1шт.

9

52062D

GROMMET

on electrical instrument mounting panel cover

1шт.

10

355097R1

CLIP, headlight cable (on fuel filter mounting bolt)

1шт.

11

358121R91

CABLE

switch to rear light (will work for 61599D)

1шт.

12

355098R1

CLIP, cable (on control bracket mounting bolt)

1шт.

13

62801DC

SWITCH

battery ignition (for components see list of parts under detail of "battery ignition switch")

1шт.

14

357649R91

HARNESS, cable

1шт.

15

354297R91

HARNESS

voltage regulator cable

1шт.

16

354234R91

REGULATOR

voltage (Delco-Remy 1118308) (for components see list of parts under detail of "voltage regulator)

1шт.

17

357095R91

CABLE, battery to starting switch

1шт.

17

360455R91

CABLE, battery to starting switch (used with hydraulic seat suspension and battery box package, 360454R91)

1шт.

18

24179D

GROMMET,5/8" ID x 7/8" Groove Dia

on battery box

2шт.

19

61137DC

BATTERY (Auto-Lite 3H-135-R3) (optional with 355779R92)

1шт.

19

355779R92

BATTERY (Globe-Union 3H-1491) (optional with 61137DC)

1шт.

20

355098R1

CLIP, on steering post base

1шт.

21

354294R1

CLIP, battery to starting switch cable (on main frame cover right rear bolt)

1шт.

22

53102DA

CABLE

, Serial Range: battery-ground

1шт.

23

351794R1

CLIP, on brake housing mounting bolt

1шт.

24

351794R1

CLIP, on rear frame cover

1шт.

280136

NUT,3/8"-16, G8

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

45640DB

LAMP

LIGHT, rear (conventional) (guide lamp 873-24) (for components see list of parts under detail of "headlights or rear light")

1шт.

25

357884R91

LIGHT, rear (sealed beam) (guide lamp 926115) (for components see list of parts under detail of "headlights or rear light")

1шт.

26

56273D

CLIP, on rear fuel tank support (upper hole right side)

1шт.

13000R1

NUT, hex., 1/4-20NC

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

357094R91

MOTOR, cranking (Delco-Remy 1108461) (for components see list of parts under detail of "cranking motor")

1шт.

280136

NUT,3/8"-16, G8

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

110730

LOCK WASHER

WASHER, lock, medium, 3/8"

1шт.

142186H

WASHER

terminal

1шт.

28

355098R1

CLIP, cable harness (on fuel tank mounting bolt)

1шт.

29

62302D

CLIP

on cranking motor mounting bolt

1шт.

30

355097R1

CLIP, on steering shaft support

1шт.

31

355097R1

CLIP, on rear valve cover stud

1шт.

32

355097R1

CLIP, on front valve cover stud

1шт.

33

354237R91

GENERATOR, w/o pulley, assembly (Delco-Remy 1100501) (for components see list of parts under detail of "generator")

1шт.

34

61387D

CLIP, on ignition cable

1шт.

35

61813D

CLIP

on ignition cable (on distributor bracket-top L.H. mounting bolt)

1шт.

36

357934R91

UNIT, battery ignition (for components see list of parts under detail of "battery ignition" unit)

1шт.

37

SWITCH, starting, assembly (Delco-Remy 1918405) (for components see list of parts under detail of "starting switch")

1шт.

38

357071R1

PIPE, headlight support, L.H.

1шт.

39

CABLE, regulator "BAT" terminal to ammeter (natural with black and red cross tracers) (order 354297R91)

1шт.

40

CABLE, fuse housing to junction block (used with 354232R91)

1шт.

41

CABLE, ignition switch to junction block (natural with black cross tracers) (order 354297R91)

1шт.

42

CABLE, regulator "L" terminal to junction block (natural with green cross tracers) (order 354297R91)

1шт.

43

CABLE, fuse housing to lighting switch (used with 354232R91)

1шт.

44

CABLE, ammeter to starting switch (black with yellow tracers) (order 357649R91)

1шт.

45

CABLE, ignition switch to coil (black) (order 357649R91)

1шт.

46

CABLE, regulator "GEN" terminal to generator "A" terminal (natural with red cross tracers) (order 357649R91)

1шт.

47

CABLE, regulator "F" terminal to generator "F" terminal (natural with black tracers) (order 357649R91)

1шт.

356062R91

BOLT

AND NUT

2шт.

357699R1

BRACKET, starting switch pull rod

1шт.

359165R91

COVER, electrical instrument mounting panel (will work for 51765DAX)

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

250466R92

CLAMP, ammeter (AC 1501309) (used with ammeter, 42383DC)

1шт.

352154R91

CLAMP, ammeter (Rochester R.M. 4000-3) (used with ammeter, 354473R91)

1шт.

360054R91

CLAMP, charge indicator (Rochester 4015-D) (used with indicator, 360053R91)

1шт.

106653

FUSE

(cartridge type SFE-20) (6-volt, 20 amps)

1шт.

356445R91

KNOB

fuse housing

1шт.

354262R1

PANEL, mounting, electrical instrument

1шт.

357698R1

ROD, pull, starting switch (illustrated with cranking motor and rod)

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16" x 1/2"

1шт.

51063DA

SCREW

electrical instrument mounting panel

2шт.

225-10108

NUT,#8-32

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

354260R1

SPACER,1/8" Pipe x 7/16"

junction block

1шт.

352265R1

WASHER, mounting, clamp (Rochester 4000-28-C) (used with ammeter, 354473R91 and indicator, 360053R91)

2шт.
