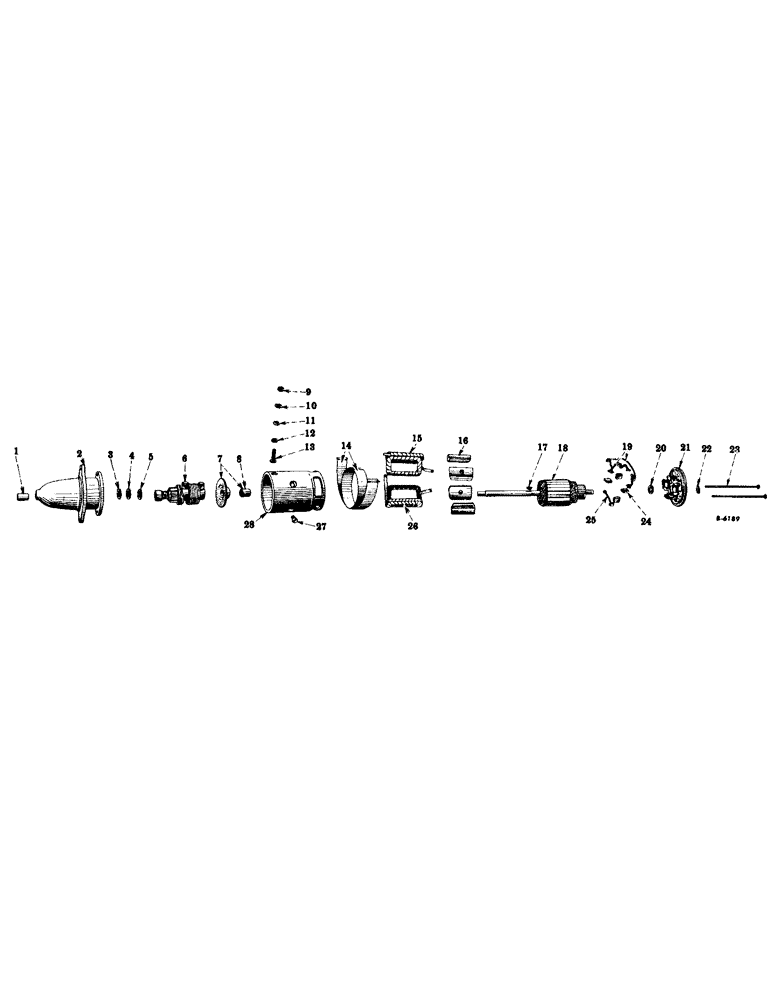

Запчасти Case IH SUPER M (118) - ELECTRICAL SYSTEM, CARBURETED ENGINE, CRANKING MOTOR, DELCO-REMY, GASOLINE, DISTILLATE OR KEROSENE (06) - ELECTRICAL SYSTEMS

63608D

MOTOR, cranking (Mfr. 1107448) (see note A)

1шт.

1

BUSHING, drive housing (Mfr. 810620)

1шт.

2

HOUSING, drive, w/bushing, 810620 (Mfr. 1887109)

1шт.

3

WASHER, space, drive end (Mfr. 833602)

1шт.

4

WASHER, space, drive end (Mfr. 809815)

1шт.

5

WASHER, space, drive end (Mfr. 1849774)

1шт.

6

DRIVE, motor (composed of (1) gear and shaft 1855629, (1) head 1848530, (1) screw 1850810, (1) screw 1850811, (1) spring 1860639, (2) washer 805057) (Mfr. 1868804)

1шт.

7

BEARING, center w/bushing, 1838670 (Mfr. 1838667)

1шт.

SCREW, slotted, rd-hd., blued, no. 10-32NF x 5/16" (Mfr. 142210)

2шт.

WASHER, lock, medium, no. 10 (special) (Mfr. 802731)

2шт.

8

BUSHING, center bearing (Mfr. 1838670)

1шт.

9

NUT, terminal stud (Mfr. 805258)

2шт.

10

WASHER, terminal stud, plain (Mfr. 805790)

1шт.

11

WASHER, insulting terminal stud (Mfr. 1861076)

2шт.

12

WASHER, insulating, terminal stud (Mfr. 1904669)

2шт.

13

STUD, terminal (Mfr. 826938)

1шт.

WASHER, lock, light, 3/8" (Mfr. 110730)

2шт.

14

BAND, cover (Mfr. 1886923)

1шт.

SCREW, slotted-rd-hd., cd-pltd., no. 10-32NF x 1-1/4" (Mfr. 132926)

1шт.

NUT, hex., no. 10-32 (Mfr. 103088)

1шт.

15

COIL, field, upper (Mfr. 1878635)

1шт.

16

SHOE, pole (Mfr. 810601)

4шт.

17

KEY, Woodruff, 6, 5/32 x 5/8" (Mfr. 124546)

1шт.

18

ARMATURE (Mfr. 818002)

1шт.

19

LEAD, connector, brush (Mfr. 819362)

1шт.

SCREW, slotted, rd-hd., cd-pltd., no. 10-32NF x 1/4" (Mfr. 132892)

2шт.

WASHER, lock, medium, no. 10 (Mfr. 106497)

2шт.

20

WASHER, space, commutator end (Mfr. 833602)

1шт.

21

FRAME, end, commutator (Mfr. 1881627)

1шт.

22

PLUG, commutator end frame (Mfr. 1865182)

1шт.

23

BOLT, thru (Mfr. 809053)

2шт.

WASHER, lock, medium, 1/4" (Mfr. 103319)

2шт.

24

BRUSH (Mfr. 811553)

4шт.

115903

SCREW

slotted, rd-hd., blued, no. 6-32NC x 1/2" (Mfr. 115903)

4шт.

106495

Lock, (Mfr. 106495) #6

4шт.

25

LEAD, ground, brush (Mfr. 813554)

2шт.

SCREW, slotted, rd-hd., cd-pltd., no. 8-32NC x 1/4" (Mfr. 122159)

2шт.

WASHER, lock, medium, no. 8 (Mfr. 106496)

2шт.

26

COIL, field, lower (Mfr. 1878636)

1шт.

27

SCREW, pole shoe (Mfr. 1881869)

4шт.

28

FRAME (not serviced separately)

1шт.

GEAR AND SHAFT, motor drive (Mfr. 1848530)

1шт.

OILER, commutator end frame (Mfr. 1880642)

1шт.

SCREW, motor drive spring (at head) (Mfr. 1850811)

1шт.

SCREW, motor drive spring (shaft end) (Mfr. 1850810)

1шт.

SPRING, motor drive (Mfr. 1860639)

1шт.

WASHER, lock, drive spring screw (Mfr. 805057)

2шт.

WICK, oil, commutator frame oiler

1шт.
