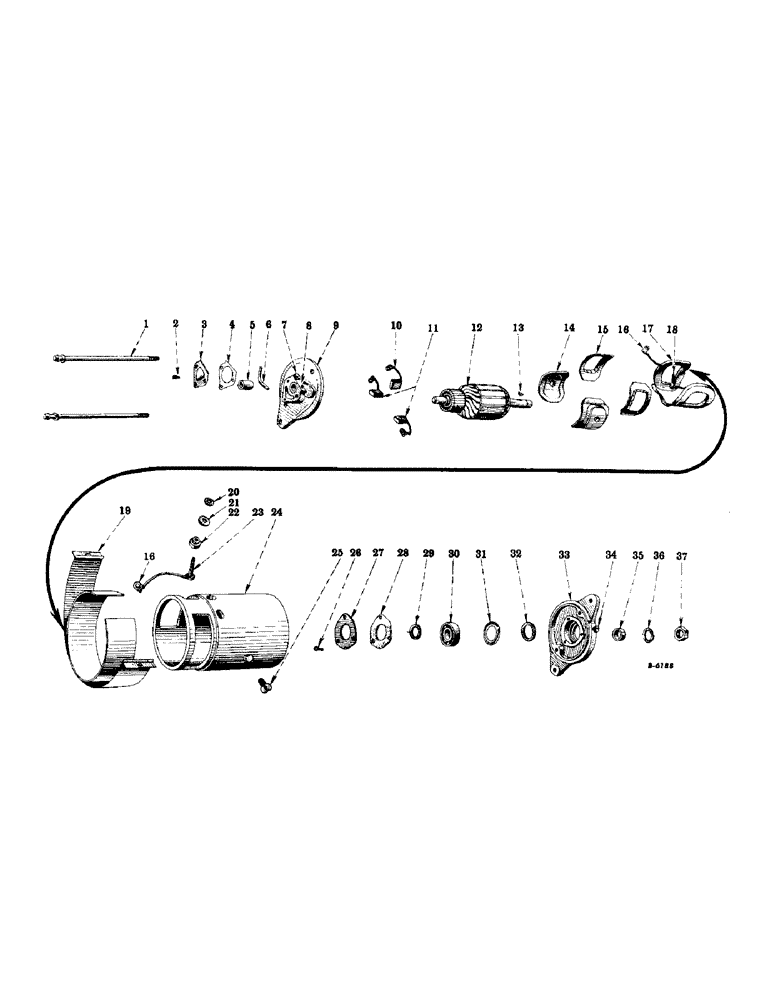

Запчасти Case IH SUPER M (110) - ELECTRICAL SYSTEM, CARBURETED ENGINE, GENERATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

354237R91

GENERATOR, assembly (Mfr. 1100501)

1шт.

1

BOLT, thru (Mfr. 815018)

2шт.

WASHER, lock, heavy, cd-pltd., 5/16" (Mfr. 120638)

2шт.

2

SCREW, commutator end cover plate (Mfr. 1886496)

3шт.

WASHER, lock, medium, no. 8 (Mfr. 106496)

3шт.

3

PLATE, commutator end cover (Mfr. 820524)

1шт.

4

GASKET, commutator end cover plate (Mfr. 817220)

1шт.

5

BUSHING, commutator end (Mfr. 812823)

1шт.

6

WICK, oil, commutator end (Mfr. 804076)

1шт.

7

OILER, commutator end (Mfr. 1880635)

1шт.

8

PLUG, oil wick, commutator end (Mfr. 816315)

1шт.

9

FRAME, commutator end, assembly (composed of (1) bushing 812823, (1) plug 816315, (1) wick 804076) (Mfr. 1913564)

1шт.

10

BRUSH, third (Mfr. 1850768)

1шт.

SCREW, slotted, rd-hd., cd-pltd., no. 6-32NC x 1/4" (Mfr. 132688)

1шт.

WASHER, lock, brush lead attaching screw (Mfr. 1904377)

1шт.

11

BRUSH, main (Mfr. 1906923)

2шт.

SCREW, slotted, rd-hd., cd-pltd., no. 6-32NC x 1/4" (Mfr. 132688)

2шт.

WASHER, lock, brush lead attaching screw (Mfr. 1904377)

2шт.

12

ARMATURE, (Mfr. 1913560)

1шт.

13

KEY, Woodruff, ni-stl., no. 5, 1/8 x 5/8" (drive end)

1шт.

14

SHOE, pole (Mfr. 1914618)

2шт.

15

INSULATOR, field coil (Mfr. 1914491)

2шт.

16

TERMINAL, type "K" (Mfr. 200182)

2шт.

17

COIL SET, field (Mfr. 1913554)

1шт.

18

STUD, terminal (Mfr. 1858751)

1шт.

NUT, hex., cd-pltd., no. 12-24NC (Mfr. 121743)

2шт.

WASHER, lock, terminal stud (Mfr. 1904661)

2шт.

19

BAND, cover (Mfr. 1872638)

1шт.

SCREW, slotted, rd-hd., cd-ptd., no. 10-32NF x 1-1/2" (Mfr. 132930)

1шт.

NUT, hex., cd-pltd., no. 10-32NF (Mfr. 120614)

1шт.

20

WASHER, terminal stud (Mfr. 1881409)

2шт.

21

WASHER, insulating, terminal stud (Mfr. 1858753)

2шт.

22

BUSHING, insulating, terminal stud (Mfr. 1885090)

2шт.

23

STUD AND LEAD, terminal (Mfr. 1858754)

1шт.

NUT, hex., cd-pltd., no. 12-24NC (Mfr. 121743)

2шт.

WASHER, lock, terminal stud (Mfr. 1904661)

2шт.

24

FRAME (not serviced separately)

1шт.

25

SCREW, pole shoe (Mfr. 1843646)

2шт.

26

SCREW, retainer plate (Mfr. 1904370)

3шт.

WASHER, lock, medium, no. 10 (special) (Mfr. 802731)

3шт.

27

PLATE, ball bearing retainer (Mfr. 1911263)

1шт.

28

GASKET, ball bearing retainer plate (Mfr. 1912008)

1шт.

29

WASHER, space, drive end (Mfr. 809945)

1шт.

30

BEARING, ball, drive end (Mfr. 954378)

1шт.

31

RETAINER, drive end felt washer (Mfr. 819104)

1шт.

32

WASHER, felt, drive end (Mfr. 809961)

1шт.

33

FRAME, drive end, w/oiler, 1880641 (Mfr. 1873830)

1шт.

34

1880641

OILER

drive end bearing

1шт.

35

SPACER, pulley (Mfr. 817224)

1шт.

36

WASHER, lock, drive end shaft nut (Mfr. 804000)

1шт.

37

NUT, drive end shaft (Mfr. 1914308)

1шт.
