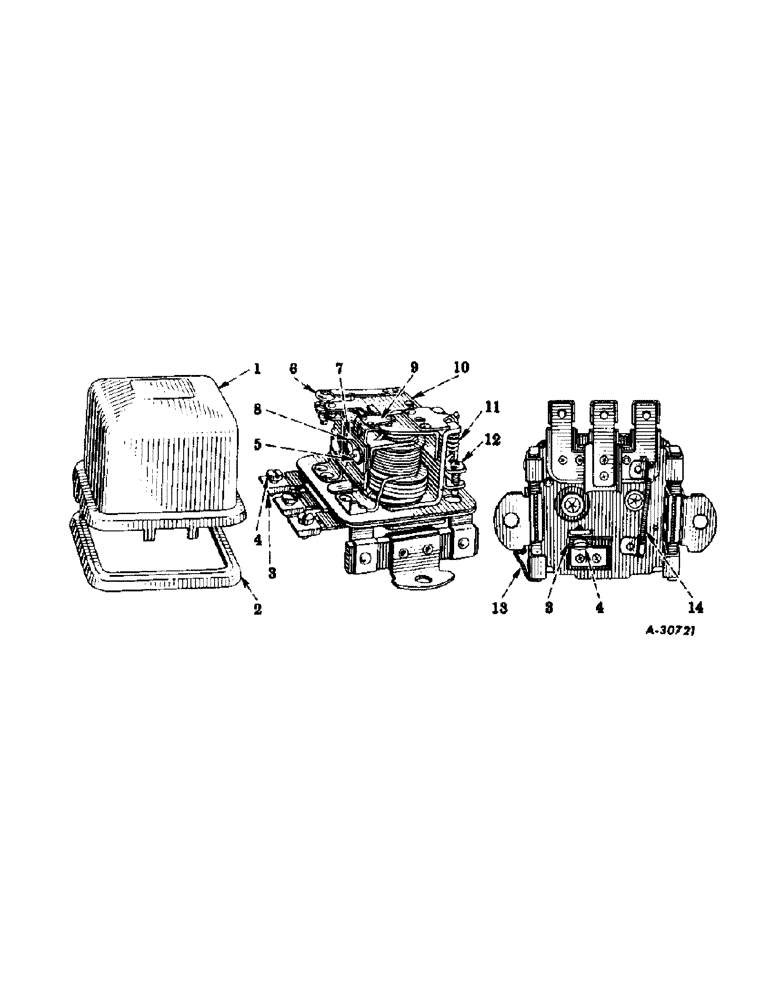

Запчасти Case IH SUPER M (109) - ELECTRICAL SYSTEM, CARBURETED ENGINE, VOLTAGE REGULATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

354234R91

REGULATOR

voltage (Delco-Remy) (Mfr. 1118308)

1шт.

1

COVER (Mfr. 1909034)

1шт.

2

GASKET, cover (Mfr. 1909035)

1шт.

3

CLAMP, terminal (Mfr. 1868137)

4шт.

4

SCREW, terminal (Mfr. 1864099)

4шт.

5

SCREW, regulator contact attaching (Mfr. 1878516)

2шт.

6

SCREW, adjusting relay armature (Mfr. 1912159)

1шт.

7

WASHER, insulating regulator contact attaching screw (Mfr. 1878507)

2шт.

8

WASHER, lock, regulator contact attaching screw (Mfr. 1878505)

1шт.

9

CONTACT AND SUPPORT, regulator (Mfr. 1878517)

1шт.

10

ARMATURE, relay (Mfr. 1878780)

1шт.

SCREW, relay armature (Mfr. 1904817)

2шт.

WASHER, lock, relay armature attaching screw

2шт.

11

SPRING, regulator armature (Mfr. 1912176)

1шт.

12

SCREW, regulator armature adjusting (Mfr. 1912365)

1шт.

13

LEAD, assembly, ground (Mfr. 1885467)

1шт.

14

RESISTOR, "F" terminal to ground (Mfr. 1885297)

1шт.

BUSHING, insulating regulator contact attaching screw (Mfr. 1878506)

2шт.

PACKAGE, shock mounting (Mfr. 1913064)

1шт.
