Запчасти Case IH SUPER M (108) - ELECTRICAL SYSTEM, CARBURETED ENGINE, GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

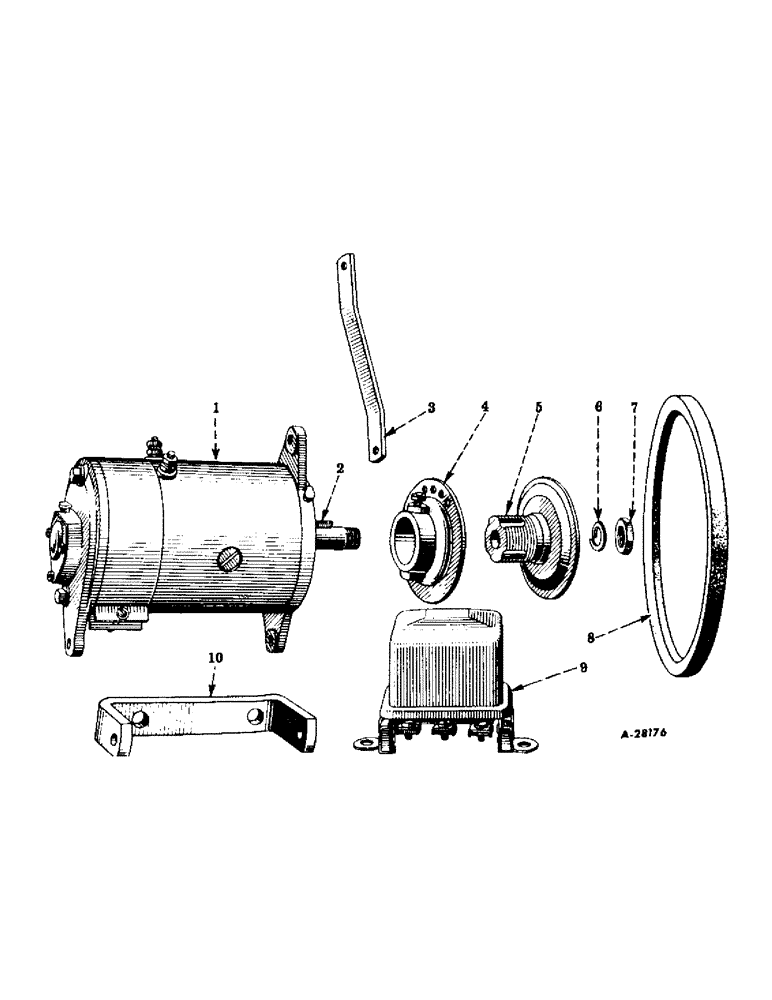

Схема запчастей Case IH SUPER M - (108) - ELECTRICAL SYSTEM, CARBURETED ENGINE, GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS
1
2
7
9
3
10
6
5
4
8

Артикул

Название

Примечание

Количество

1

354237R91

SPARE PART GENERATOR, w/o pulley, assembly (Delco-Remy 1100501) (for components see list of parts under detail of "generator")

1шт.

1

103821A1R

REMAN-GENERATOR

Generator

1шт.

1

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

1

87497945R

REMAN-ALTERNATOR

Kit to convert reman generator 103821R to an alternator. Kit includes: instruction sheet, hardware kit, 12 v. resistor ballast, wire harness, mounting brkt., tension brkt., reman alternator 12 volt 63 amp w/pulley & regulator.

1шт.

1

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

220065

NUT, hex., 5/16-18NC

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Drive end #5, 1/8" x 5/8", HT

1шт.

3

49343DA

SPARE PART BRACE, generator

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

6746DX

HUB

FLANGE, generator pulley, w/nut, 218436 and screw, 102820

1шт.

218436

SEAL

NUT, jam. hex., 1/4-20NC

1шт.

NLS

NO LONGER SERVICED

set, hdls., dog-pt., 1/4-20NC x 7/8"

1шт.

5

6745DA

HUB

SPARE PART HUB, generator pulley

1шт.

6

139679H

WASHER, lock, drive end shaft nut

1шт.

7

354490R1

SPARE PART NUT, drive end shaft

1шт.

8

49341D

V-BELT,0.53" W

Generator

1шт.

9

354234R91

REGULATOR

REGULATOR, voltage (Delco-Remy 1118308) (for components see list of parts under detail of "voltage regulator")

1шт.

13000R1

NUT, hex., 1/4-20NC, L-504802 to L512541, F-28175 up

2шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

BOLT, , F-501 to F28174, L-500001 to L-504801 Hex, 1/4"-20 x 3/8", G5, Full Thd

2шт.

179806

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 1/4-20NC x 2-1/4", F-28175 up, L-504802 to L-512541

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

50243D

SPARE PART BRACKET, generator

1шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
