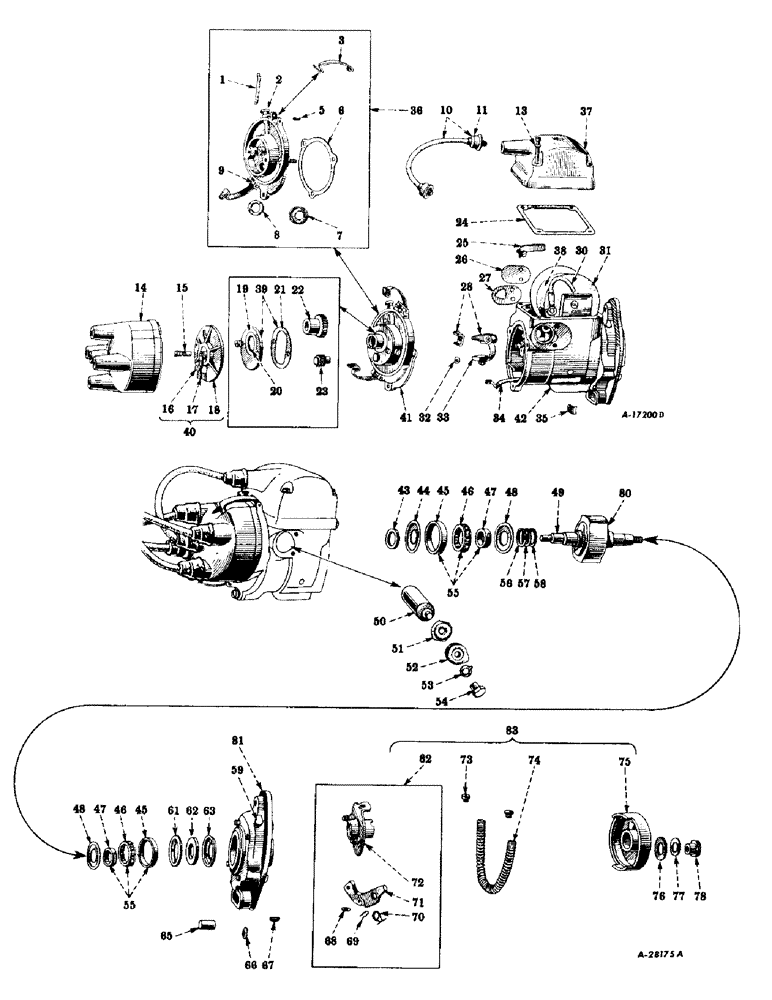

Запчасти Case IH SUPER M (100) - ELECTRICAL SYSTEM, CARBURETED ENGINE, MAGNETO, INTERNATIONAL TYPE H-4 (06) - ELECTRICAL SYSTEMS

351218R92

MAGNETO

assembly

1шт.

1

E4216

FELT, oil well

1шт.

2

E4295

OILER

1шт.

3

51666D

SPRING, distributor cap

2шт.

5

47424D

PIN, locating, distributor cap

1шт.

6

47408D

GASKET

distributor body

1шт.

7

49424D

RETAINER, distributor body felt seal

1шт.

8

49423D

SEAL, felt, distributor body

1шт.

9

51667D

PIN, distributor cap spring

2шт.

10

356686R92

CABLE

coil to distributor, w/two nipples, 251553R1

1шт.

11

251553R1

BOOT

NIPPLE, coil to distributor cable

2шт.

13

38609DA

WASHER, mounting, coil cover

4шт.

14

47413DXC

CAP

distributor

1шт.

14

47413DYC

CAP

distributor, 47413DXC, w/brush, 21350DXA

1шт.

15

21350DXA

BRUSH, distributor, w/spring (optional with 32032DXA or 356622R11)

1шт.

15

32032DXA

BRUSH

distributor, w/spring (optional with 21350DXA or 356622R11)

1шт.

15

356622R11

BRUSH, distributor, w/spring (optional with 21350DXA or 32032DXA)

1шт.

16

47427D

NUT

distributor rotor

1шт.

131181

WASHER, lock, light, cd-pltd., no. 6

1шт.

17

47428DA

ARM

distributor

1шт.

18

47425DX

ROTOR, distributor

1шт.

19

49417D

RETAINER, distributor gear cover felt seal

1шт.

20

49418D

SEAL, felt, distributor gear cover

1шт.

21

49419D

GASKET

distributor gear cover

1шт.

22

49420DX

PINION

GEAR, distributor (24 teeth)

1шт.

23

47417DX

PINION

rotor

1шт.

24

47453D

GASKET

coil cover

1шт.

25

47452D

STRAP, secondary leadout

1шт.

436652

SCREW, slotted-pan-hd., no. 4-48NF x 5/16"

1шт.

131093

WASHER, lock, heavy, cd-pltd., no. 4

1шт.

26

55015D

COVER, condenser hole

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

slotted-rd-hd., cd-pltd., no. 8-32NC x 3/8"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

27

48472DA

GASKET

condenser hole cover

1шт.

28

353171R91

CONTACT

PACKAGE, breaker arm and stationary point

1шт.

436692

SCREW,Slotted Pan Hd, #8-32 x 5/16"

slotted-pan-hd., cd-pltd., no. 8-32NC x 5/16"

1шт.

30

47442D

TUBE, primary to condenser leadout

1шт.

31

49593D

INSULATOR, coil end

2шт.

32

21394D

WASHER

stationary point support

1шт.

33

47432D

ANCHOR

spring

1шт.

120622

NUT,#8-32

1шт.

133482

SCREW, slotted-fil-hd., cd-pltd., no. 8-32NC x 3/8"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

34

47433DX

CABLE

primary leadout

1шт.

35

48339D

CLIP, condenser

1шт.

NLS

NO LONGER SERVICED

slotted-fil-hd., cd-pltd., no. 8-32NC x 1-1/4"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

36

6483DAY

BODY, distributor, assembly (composed of (1) body 6483DA (NSS), (2) pin 51667D, (1) felt E4216, (1) retainer 49424D, (1) gasket 47408D, (1) seal 49423D, (1) oiler E4295, (1) shaft 47486D (NSS), (1) pin 47424D, (2) spring 51666D)

1шт.

37

47449DAY

COVER ASSY

COVER, coil, w/strap, assembly (composed of (1) cover 47449DA (NSS), (1) insert 47451D (NSS), (1) screw 436652, (1) strap 47452D, (1) washer 131093)

1шт.

131997

SCREW, slotted-fil-hd., cd-pltd., no. 8-32NC x 1-1/2"

4шт.

38

21314DX

CORE

coil, w/two screws, 133495

1шт.

38

47439DAX

COIL ASSY.

COIL AND CORE, assembly (composed of (1) coil 57926DX, (1) core 21314D, (2) screw 133495)

1шт.

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

slotted-fil-hd., cd-pltd., no. 8-32 x 5/8"

2шт.

38

57926DX

COIL

1шт.

COIL, w/insulators, assembly (composed of (1) coil 57926D (NSS), (1) strip 47448D (NSS), (2) insulator 47446D (NSS), (1) tape 51466D (NSS), (2) insulator 49593D, (1) terminal 47445D (NSS), (1) patch 47447D (NSS), (1) terminal 49448D (NSS), (1) patch 51465D (NSS), (1) tube 25977D (NSS), (2) screw 133495, (1) tube 47442D, (1) sticker 27534D (NSS), (1) winding 47440DA (NSS)

1шт.

39

49416DX

COVER, distributor gear, assembly (composed of (1) cover 49416D (NSS), (1) gasket 49419D, (1) retainer 49417D, (1) seal 49418D)

1шт.

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

slotted-rd-hd., cd-pltd., no. 8-32NC x 1/2"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

40

47425DY

CAP

ROTOR, distributor, assembly (composed of (1) arm 47428DA, (1) nut 47427D, (1) rotor 47425DX, (1) washer 131181)

1шт.

41

56066DA

DISTRIBUTOR, assembly (composed of (1) body 6483DAY, (1) cover 49416DX, (1) gear 49420DX, (1) pinion 47417DX, (2) screw 132760, (2) washer 121841)

1шт.

131124

HYD CONNECTOR

SCREW, slotted-fil-hd., cd-pltd., no. 10-32NF x 3/4"

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

42

6482DAY

FRAME, assembly (composed of (1) cover 55015D, (1) felt E4226, (1) frame 6482DAX (NSS), (1) gasket 48472DA, (1) post 47485D (NSS), (1) race ST601, (1) retainer 47454D, (2) screw 121832, (2) washer 121841)

1шт.

43

E4226

FELT, bearing

1шт.

44

47454D

RETAINER, bearing felt, inner

1шт.

45

ST601

RACE

outer, rotor shaft ball bearing (IH-15-0)

2шт.

46

ST602

BEARING

RETAINER, rotor shaft ball bearing, w/balls (IH-15-R.U.)

2шт.

47

ST600

BEARING

RACE, inner, rotor shaft ball bearing (IH-15-1)

2шт.

48

E4A324

FLINGER, oil

2шт.

49

60094D

CAM, breaker

1шт.

50

21409DB

CONDENSER

1шт.

51

47438DA

WASHER, short circuiting terminal, inner

1шт.

52

48341D

WASHER, short circuiting terminal, outer

1шт.

53

48342DA

WASHER, lock, short circuiting terminal

1шт.

54

48340DA

TERMINAL, short circuiting

1шт.

132100

SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"

SCREW, slotted-fil-hd,., cd-pltd., no. 10-32NF x 5/16"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

55

ST307

BALL BEARING,0.5906" ID x 1.378" OD x 0.315"

BEARING, ball, rotor shaft (IH-M-15)

2шт.

56

E4A305

SHIM, rotor, light

1шт.

57

E4212

SHIM, rotor, medium

1шт.

58

E4A372

SHIM, rotor, heavy

1шт.

59

27311D

OILER, impulse coupling

1шт.

61

47474D

WASHER, oil retainer, inner (order 353051R91)

1шт.

62

47475DA

OIL SEAL (order 353051R91)

1шт.

63

47473D

WASHER, oil retainer, outer (order 353051R91)

1шт.

65

47468DA

PIN, stop, impulse coupling

1шт.

66

114616

WASHER

lock, external-tooth-ck., 1/4"

4шт.

67

106749

KEY

Woodruff, no. 3, 1/8 x 1/2"

1шт.

68

47461D

WASHER, pawl pin, C-264, Serial Range: 501-102570

1шт.

68

24610D

WASHER, pawl pin, C-264 102571 up

1шт.

69

47462D

RING, snap, pawl pin, C-264, Serial Range: 501-102570

2шт.

69

30114D

RING, snap, pawl pin, C-264 102571 up

2шт.

70

51303D

VALVE SPRING

SPRING, pawl

2шт.

71

51304D

PAWL

C-264, Serial Range: 501-102570

2шт.

71

351367R91

PAWL, C-264 102571 up

2шт.

72

47293DX

MEMBER, magneto, C-264, Serial Range: 501-102570

1шт.

72

351366R91

MEMBER, magneto, C-264 102571 up

1шт.

73

251555R1

BUTTON

spring end

2шт.

74

47822D

SPRING

coupling, magneto

1шт.

75

47292DX

MEMBER, drive, C-264, Serial Range: 501-102570

1шт.

75

251558R11

MEMBER, drive, C-264 102571 up

1шт.

76

24603D

WASHER, lock, magneto drive member

1шт.

77

251591R1

WASHER, lock, impulse coupling, cd-pltd., 1/2"

1шт.

78

47470D

NUT, coupling, impulse

1шт.

80

47455DAR

ROTOR, assembly (composed of (1) cam 60094D, (2) retainer ST602, (2) filinger E4A324, (1) rotor 47457DAC (NSS), (1) keeper 57314D, (AR) shim E4212, (1) key 106749, (AR) shim E4A305, (2) race ST600, (AR) shim E4A372)

1шт.

81

6515DAX

FLANGE, mounting, assembly (composed of (1) flange 6515DA (NSS), (1) oiler 27311D, (1) oil seal 353050R! (NSS), (1) pin 47468DA, (1) race (IH) ST601, (1) washer 353052R1 (NSS), (1) washer 353053R1 (NSS)

1шт.

173464

SCREW, slotted, fil-hd., 1/4-20NC x 9/16"

4шт.

82

47293DY

MEMBER

magneto, w/pawls, assembly, C-264 501 to 102570 (composed of (1) member 47293DX, (1) pawl 51304D, (2) ring 47462D, (2) spring 51303D, (1) washer 47461D)

1шт.

82

351434R91

MEMBER, magneto, w/pawls, assembly, C-264 102571 up (composed of (1) member 351366R91, (2) pawl 351367R91, (2) ring 30114D, (2) spring 51303D, (2) washer 24610D)

1шт.

83

351365R91

ROTOR

UNIT, rotating, assembly (will work for 47293DZ) (composed of (2) button 251555R1, (1) member 251558R11, (1) member 351434R91, (1) spring 47822D)

1шт.

21314D

CORE

w/two screws, 133495

1шт.

57755D

GAGE, breaker point

1шт.

57314D

KEEPER, magneto

1шт.

353051R91

HOLDER

PACKAGE, service, oil seal (consists of (1) seal 353050R1 (NSS), (1) shim 353054R1 (NSS), (2) shim E412, (2) shim E4A305, (2) shim E4A372, (1) washer 353052R1 (NSS), (1) washer 353053R1 (NSS)

1шт.

69398D

VARNISH, insulating, electrical (1 pint) (special)

1шт.
