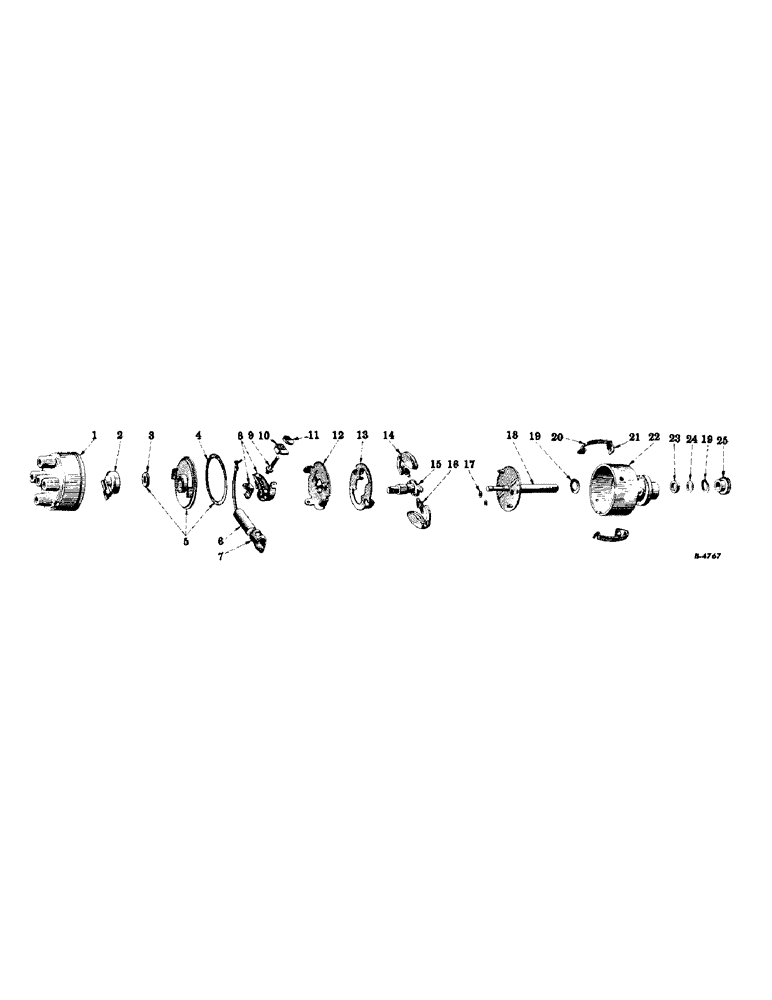

Запчасти Case IH SUPER M (098) - ELECTRICAL SYSTEM, CARBURETED ENGINE, BATTERY IGNITION DISTRIBUTOR (06) - ELECTRICAL SYSTEMS

357935R91

OIL DISTRIBUTOR

DISTRIBUTOR, assembly (will work for 354900R91)

1шт.

New Distributor breakdown, cap & rotor is 70925C1, condenser A48371 and points 531456R1

1шт.

1

351693R91

CAP

distributor

1шт.

2

353896R91

ROTOR ASSY.

ROTOR, distributor

1шт.

3

353901R2

FELT SEAL

felt, breaker cover

1шт.

4

352284R2

GASKET

breaker cover

1шт.

5

353900R11

COVER

breaker, w/seal, 353901R2 and gasket, 352284R2

1шт.

6

353903R92

CONDENSER

1шт.

7

353905R1

CLAMP

condenser

1шт.

131949

DECAL KIT

slotted-fil-hd., cd-pltd., no. 8-32NC x 3/16"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

8

353172R91

BREAKER

PACKAGE, breaker arm and stationary point

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

slotted-pan-hd., cd-pltd., no. 8-32NC x 3/16"

1шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

10

353906R1

PLUG

INSULATOR, spring anchor, terminal

1шт.

11

251538R1

WASHER

insulating, terminal

1шт.

12

352277R11

PLATE

breaker

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

slotted-rd-hd., cd-pltd., no. 8-32NC x 3/8"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

352301R1

GUARD

governor weight

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

slotted-fil-hd., cd-pltd., no. 8-32NC x 3/16"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353915R91

ARM

weight

2шт.

15

355724R91

PACKAGE

CAM, w/felt 355460R1

1шт.

16

358108R91

SPRING

governor (set of two) (will work for 353918R1 and 354903R1)

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

354901R1

SHAFT, distributor

1шт.

19

352298R1

THRUST WASHER

thrust, distributor

2шт.

20

353894R1

VALVE SPRING

SPRING, distributor cap

2шт.

21

353895R1

SUPPORT

distributor cap spring

2шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

slotted-rd-hd., cd-pltd., no. 8-32NC x 3/8"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

22

353898R11

HOUSING

distributor, w/oil seal, 252739R1, retainer, 353899R1 and plug, 125947

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

pipe, slotted, cd-pltd., 1/8"

1шт.

23

353899R1

STOP

RETAINER, oil seal, distributor shaft

1шт.

24

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

OIL SEAL, distributor shaft

1шт.

25

353902R1

GEAR

distributor

1шт.

354552R1

HARDWARE

PIN, distributor gear

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

21394D

WASHER

stationary point and terminal

3шт.
