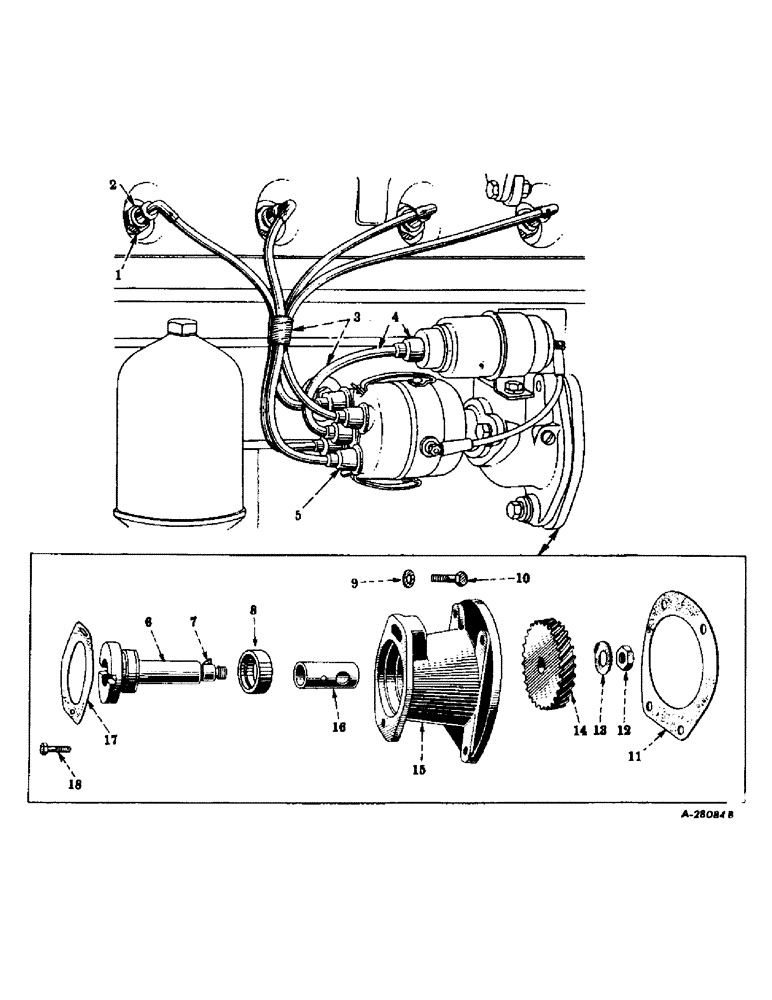

Запчасти Case IH SUPER M (094) - ELECTRICAL SYSTEM, CARBURETED ENGINE, SPARK PLUGS, DISTRIBUTOR OR MAGNETO DRIVE AND BRACKET (06) - ELECTRICAL SYSTEMS

1

37762H

GASKET

spark plug

4шт.

2

353976R91

SPARK PLUG

PLUG, spark (Champion 15-A) , NORMAL SERVICE

4шт.

2

353982R91

PLUG, spark (AC-85-S-COM) , NORMAL SERVICE

4шт.

2

359276R91

SPARK PLUG

PLUG, spark (Auto-Lite BT-8) , NORMAL SERVICE

4шт.

2

355261R91

SPARK PLUG

PLUG, spark (Champion C-15) , LIGHT OR MODERATE SERVICE

4шт.

2

353985R91

PLUG, spark (AC-88-S-COM) , LIGHT OR MODERATE SERVICE

4шт.

2

359277R91

PLUG, spark (Auto-Lite BT-10) , LIGHT OR MODERATE SERVICE

4шт.

2

353978R91

PLUG, spark (Champion H-17-A) , SEVERE SERVICE

4шт.

2

353983R91

PLUG, spark (AC-83-S-COM) , SEVERE SERVICE

4шт.

2

359275R91

PLUG, spark (Auto-Lite BT-4) , SEVERE SERVICE

4шт.

2

353977R91

SPARK PLUG

PLUG, spark (Champion H-16-A) , EXTREMELY SEVERE SERVICE

4шт.

2

353986R91

SPARK PLUG

PLUG, spark (AC-81-S-COM) , EXTREMELY SEVERE SERVICE

4шт.

2

359274R91

PLUG, spark (Auto-Lite BT-3) , EXTREMELY SEVERE SERVICE

4шт.

3

356691R92

CABLE

PACKAGE, service, ignition cable (consists of spark plug cable, assembly with cable, 356686R92 and four nipples, 251553R1) , EXTREMELY SEVERE SERVICE

1шт.

4

356686R92

CABLE

secondary, coil to distributor, w/two nipples, 251553R1 , SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

5

251553R1

BOOT

NIPPLE, spark plug cable , EXTREMELY SEVERE SERVICE

4шт.

6

352079R1

SHAFT

distributor or magneto drive (see note) , SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

Spark plugs - Extremely Severe Service Jam, 5/8"-18, G5

1шт.

6

352560R1

SHAFT, distributor or magneto drive (used with service meter attachment) (see note), SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

Spark plugs - Extremely Severe Service Jam, 5/8"-18, G5

1шт.

7

106749

KEY

Woodruff, 3, 1/8 x 1/2" (distributor or magneto drive gear) (see note), SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

8

352080R91

SEAL

OIL SEAL, distributor or magneto drive shaft (optional with 358839R91) (see note), SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

8

358839R91

SEAL

OIL SEAL, distributor or magneto drive shaft (optional with 352080R91) (see note), SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

9

24523D

WASHER

distributor or magneto bolt (two used with magneto ignition), SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

10

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

hex-hd., 3/8-16NC x 1-7/8" (See note), SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Spark plugs - Extremely severe service 3/8"

1шт.

11

354952R3

GASKET

distributor or magneto bracket (see note) (Replaces 354952R1), SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

12

114498

JAM NUT,Jam, 5/8"-18, G5

Spark plugs - Extremely Severe Service, Follows Ref. #11 Jam, 5/8"-18, G5

1шт.

13

45003D

WASHER

LOCK, distributor or magneto gear nut, SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

14

48819D

GEAR

distributor or magneto drive (29 teeth), SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

15

354951R11

BRACKET, distributor or magneto, w/bushing, 24473DA and oil seal, 352080R91 (see note), SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8", SPARK PLUGS - EXTREMELY SEVERE SERVICE

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Spark plugs - Extremely severe service 3/8"

4шт.

16

24473DA

BUSHING

distributor or magneto shaft (see note), SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

17

55780DD

GASKET

distributor or magneto flange, SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

18

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (used with battery ignition), SPARK PLUGS - EXTREMELY SEVERE SERVICE

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Spark plugs - Extremely severe service 3/8"

1шт.

18

NLS

NO LONGER SERVICED

(Used with magneto ignition), SPARK PLUGS - EXTREMELY SEVERE SERVICE Hex, 3/8"-16 x 1 1/2", G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Spark plugs - Extremely severe service 3/8"

1шт.
