Запчасти Case IH SUPER M (092) - DIESEL ENGINE, WATER TRAP (01) - ENGINE

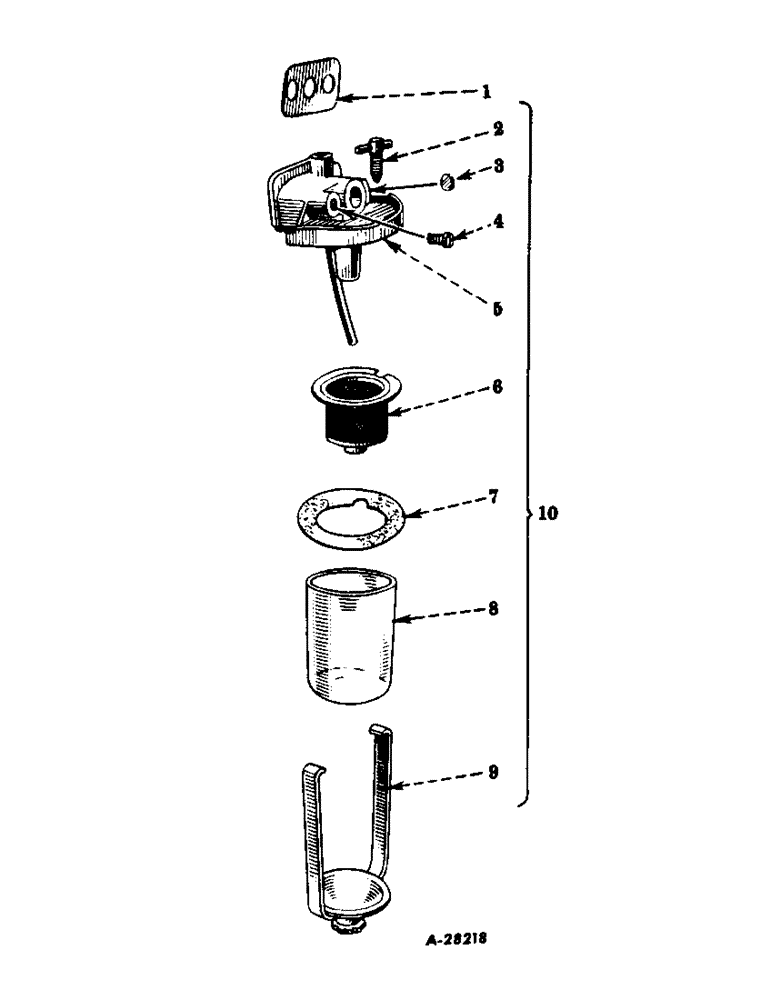

Схема запчастей Case IH SUPER M - (092) - DIESEL ENGINE, WATER TRAP (01) - ENGINE
3
1
2
5
8
4
6
9
10
7

Артикул

Название

Примечание

Количество

1

51527DC

GASKET

water trap

1шт.

2

251347R11

SCREW, water trap drain

1шт.

3

24805D

PLUG

expansion, water trap top, 3/8"

1шт.

4

60871DA

SCREW, water trap vent

1шт.

5

251380R91

TOP

water trap, w/drain pipe and plug, 24805D

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

6

251348R91

SCREEN

water trap

1шт.

7

260708R2

GASKET

water trap bowl (will work for 251352R1)

1шт.

8

60877D

BOWL

water trap

1шт.

9

60878DX

BALL

BAIL, water trap

1шт.

10

251355R91

TRAP

water, assembly

1шт.

Выбрано товаров: 12
