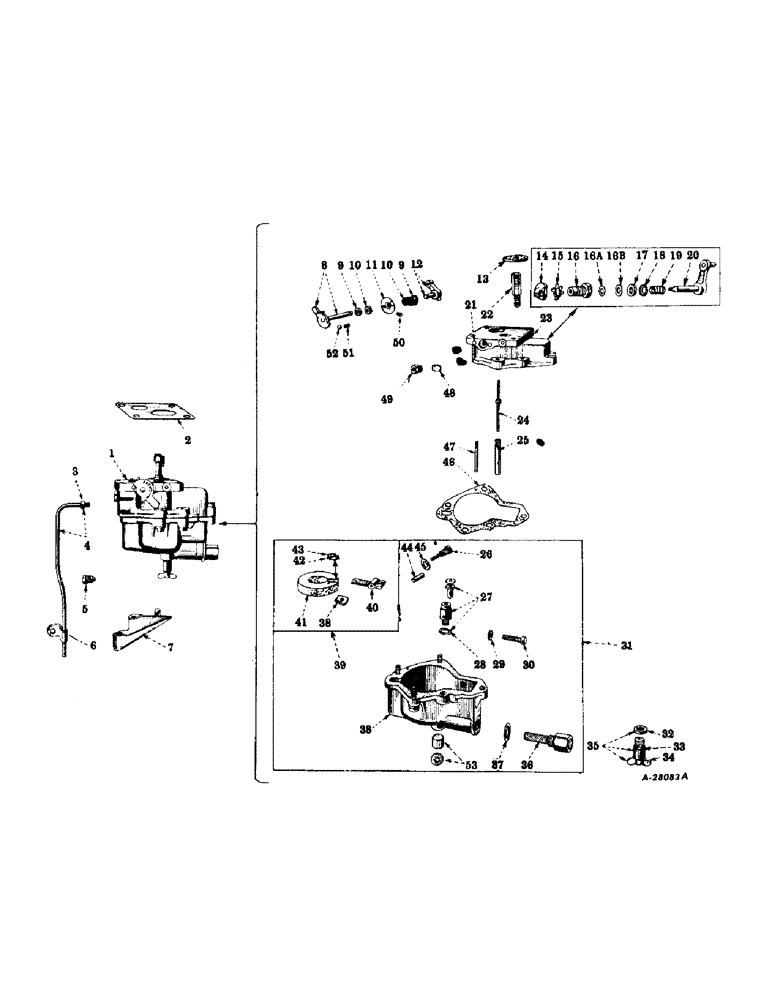

Запчасти Case IH SUPER M (082) - DIESEL ENGINE, CARBURETOR, INTERNATIONAL MODEL F-8, FOR STARTING ON GASOLINE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
53873DH
CARBURETOR, assembly (less reference no. 2)
1шт.
2
53459DA
GASKET
carburetor
1шт.
3
25038HA
TUBE NUT,3/8"-24
NUT, carburetor drain tube
1шт.
4
58859DX
TUBE, carburetor drain, w/nut, 25038HA
1шт.
5
61338D
PLUG, primer connection
1шт.
6
50821D
CLIP, carburetor drain tube
1шт.
7
58843DX
TROUGH, carburetor drain, w/support and clip
1шт.
8
56537DAX
LEVER, choke valve, outer, w/shaft, long
1шт.
9
45148D
SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk
RETAINER, choke valve dust seal
2шт.
10
45149DA
SEAL
dust, choke valve
2шт.
11
356850R11
PLATE, choke valve, w/guide and spring
1шт.
12
56538DAX
SHAFT, choke valve, short, w/lever and pin
1шт.
13
250097R1
VALVE, air
1шт.
NLS
NO LONGER SERVICED
slotted-fil-hd., cd-pltd., no. 10-32 x 1/2"
1шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
14
32582D
CAM, locking shaft
1шт.
15
352352R1
LOCK, locking shaft bearing
1шт.
16
51735D
BEARING, locking shaft
1шт.
16a
359158R1
O-RING,0.301" ID x 0.07" Width
-011, 70 Duro, .031" ID x .070" Thk, Locking shaft
1шт.
16b
363454R1
WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk
locking shaft
1шт.
17
32588D
LOCK WASHER
dust, locking shaft
1шт.
18
32587D
RETAINER, locking shaft dust washer
1шт.
19
32586D
SPRING, locking shaft dust washer
1шт.
20
51732D
SHAFT, locking, w/lever and pin
1шт.
120622
NUT,#8-32
1шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
1шт.
21
45110D
PIN
stop, starting lever
2шт.
22
250098R1
SPACER, air valve
1шт.
23
8479DCX
BODY, carburetor, assembly (composed of (1) body 8974DC (NSS), (2) pin 45110D, (2) retainer 45148D, (2) seal (45149DA)
1шт.
24
53837DX
NOZZLE, w/tube
1шт.
25
55660DB
WELL, metering
1шт.
26
32576DX
PIVOT AND SCREW, float
1шт.
27
32581DXB
CAGE
VALVE, needle and cage, w/gasket
1шт.
28
59241D
GASKET
needle valve cage
1шт.
29
492-11012
LOCK WASHER,#12
Washer, Lock, , Follows Ref #38 #12
1шт.
30
132203
Follows reference no. 38 Slotted Fil Hd, #12-24 x 7/8"
1шт.
31
35691DA
BOWL, fuel, assembly (composed of (1) bowl 5051DX, (1) pivot 32576DX, (1) float 251652R91, (1) retainer 29902DX, (1) gasket 18377D, (1) value 32581DXB, (1) gasket 25948D)
1шт.
32
58837D
NUT, lock, carburetor drain valve
1шт.
33
64932D
BODY, carburetor drain valve
1шт.
34
64536DA
STEM
carburetor drain valve
1шт.
35
58840DAX
PLUG
VALVE, carburetor drain, w/body, 64932D, nut, 58837D and stem, 64536DA
1шт.
36
29902DX
SCREEN
RETAINER, strainer, w/screen
1шт.
37
18377D
GASKET
strainer screen
1шт.
38
5051DX
BOWL, fuel, w/spacer (optional with 9390DX)
1шт.
132203
SCREW, fil-hd., cd-pltd., no. 12-24 x 7/8" Slotted Fil Hd, #12-24 x 7/8"
5шт.
492-11012
LOCK WASHER,#12
Washer, Lock, #12
5шт.
38
9390DX
BOWL, fuel, w/spacer (optional with 5051DX)
1шт.
132203
SCREW, fil-hd., cd-pltd., no. 12-24 x 7/8" Slotted Fil Hd, #12-24 x 7/8"
5шт.
492-11012
LOCK WASHER,#12
Washer, Lock, #12
5шт.
39
251652R91
FLOAT
AND LEVER, assembly (composed of (1) float 251650R1, (1) lever 357090R1, (1) spring 32577D, (1) spring 32758D)
1шт.
40
357090R2
LEVER
float (will work for 251651R1 (NSS)
1шт.
41
251650R11
FLOAT
rubber, w/nut, 114777 and screw, 132646
1шт.
114777
NUT, hex., no. 4-40
1шт.
132646
SCREW,Sl Rnd Hd, #4 - 40 x 1/2"
slotted-rd-hd., cd-pltd., no. 4-40 x 1/2"
1шт.
42
32577D
SPRING, LEAF
SPRING, float lever, lower leaf
1шт.
43
32578D
SPRING, LEAF
SPRING, float lever, upper leaf
1шт.
44
32604D
SPACER, float lever
1шт.
45
25948D
GASKET
float lever pivot screw
1шт.
46
32606DB
GASKET, fuel bowl
1шт.
47
50803D
TUBE, fuel inlet
1шт.
48
27445DB
FILLER
drip hole
1шт.
49
50802D
ADAPTER, drip tube
1шт.
50
31636D
SCREW
choke valve plate
2шт.
51
46059D
SPRING
starting lever friction ball
1шт.
52
52791R1
BALL,3/16" Dia, Stainless
friction spring, 3/16"
1шт.
53
60947D
PLUG
PACKAGE, drip hole filler replacement
1шт.
Выбрано товаров: 68
