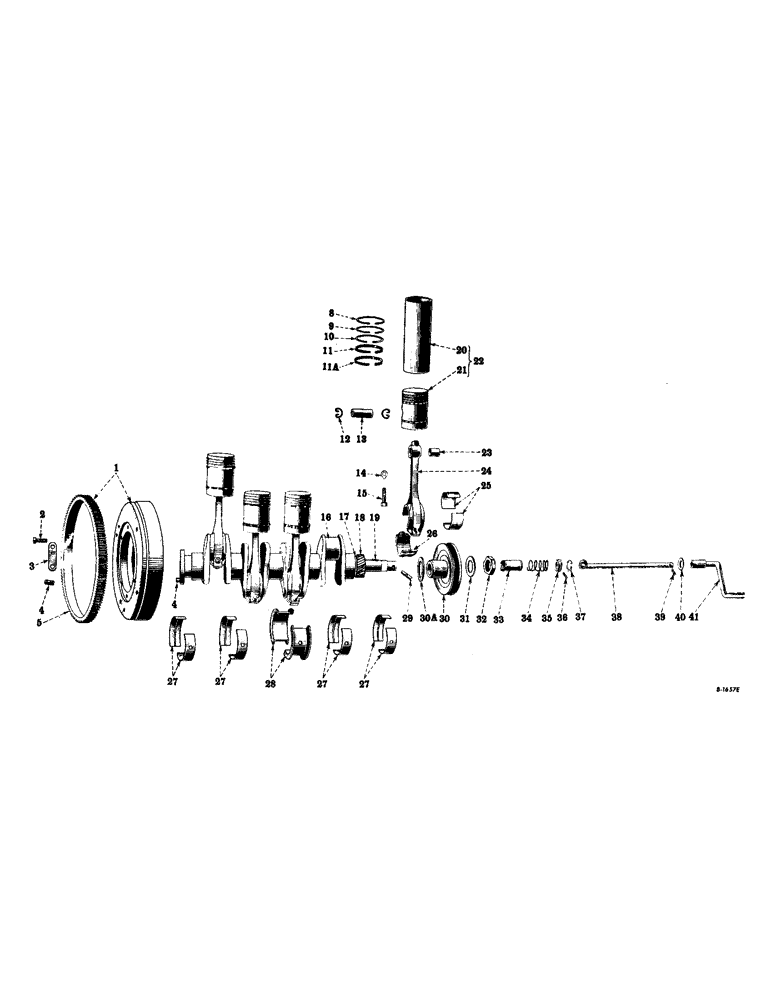

Запчасти Case IH SUPER M (065) - DIESEL ENGINE, CRANKSHAFT, RODS, PISTONS, CYLINDER SLEEVES, DRIVE PULLEY, FLYWHEEL & STARTING CRANK (01) - ENGINE

1

266141R91

FLYWHEEL, w/ring gear, 266142R1 (will work for 356995R11)

1шт.

2

43832D

SCREW

BOLT, flywheel

4шт.

3

45613D

SHEET

LOCK, flywheel bolt

2шт.

4

46923D

PIN

dowel, flywheel

2шт.

5

266142R1

GEAR

ring, flywheel (will work for 46142DB)

1шт.

8

277072R1

RING

compression, piston (top or first groove) (4-1/8" piston)

4шт.

8

264326R3

RING

compression, piston (chr-pltd.) (top or first groove) (4" piston)

4шт.

9

264325R2

RING

compression, piston, upper (second groove) (4" piston)

4шт.

9

277073R1

RING

compression, piston (second groove) (4-1/8" piston)

4шт.

10

264324R2

RING

compression, tapered, piston, lower (third groove) (4" piston)

4шт.

10

277073R1

RING

compression, piston (third groove) (4-1/8" piston)

4шт.

11

306411R91

RING

oil, piston (fourth groove) (4" piston)

4шт.

11

277074R1

RING

oil, piston (fourth groove) (4-1/8" piston)

4шт.

11a

264323R2

RING

oil, piston (fifth groove) (4" piston)

4шт.

11a

277075R1

RING, oil, piston (fifth groove) (4-1/8" piston)

4шт.

12

45739D

RING

piston pin retainer

8шт.

13

254955R2

PIN

piston (standard)

4шт.

13

254956R2

PIN, piston (.005" oversize)

4шт.

14

253216R1

RETAINER

LOCK, connecting rod bolt

8шт.

15

253215R1

BOLT, connecting rod

8шт.

16

261265R11

CRANKSHAFT, w/2 pins 46923D

1шт.

16

261267R91

CRANKSHAFT, w/bearings, 254260R94 and 2 pins, 46923D (.030" undersize)

1шт.

17

117977

WOODRUFF KEY

KEY, Woodruff, type "B" (crankshaft gear)

1шт.

18

261217R1

GEAR, crankshaft (27 teeth)

1шт.

19

124554

O-RING

Woodruff, type "B", ni-stl. (fan drive pulley)

2шт.

20

264322R2

SLEEVE

cylinder (will work for 264321R1) (used with 4" piston)

4шт.

20

277076R1

SLEEVE

cylinder (used with 4-1/8" piston)

4шт.

21

264320R3

PISTON

(4")

4шт.

21

277071R1

PISTON ASSY.

PISTON (4-1/8")

4шт.

22

264338R96

SLEEVE

cylinder, w/piston, assembly (composed of (1) pin 254955R2, (1) ring 264325R2, (1) piston 264320R3, (1) ring 264324R2, (2) ring 45739D, (1) ring 264323R2, (1) ring 264326R3, (1) sleeve 264322R1, (1) ring 306411R91

4шт.

22

277077R91

RING, SET

SLEEVE, cylinder, w/piston, assembly (composed of (1) pin 254955R2, (2) ring 277073R1, (1) piston 277071R1, (1) ring 277074R1, (2) ring 45739D, (1) ring 277075R1, (1) ring 277072R1, (1) sleeve 277076R1)

4шт.

22

277078R91

SLEEVE ASSY

SLEEVE SET (consists of four sleeves, w/pistons and rings, 277077R91) (part of conversion package 306024R91)

1шт.

23

45748DAR

BUSHING,33.02mm ID x 35.991mm OD x 38.73mm L

BUSHING, connecting rod

4шт.

24

253213R11

ROD, connecting, assembly (composed of (2) bolt 253215R1, (1) bushing 45748DAR, (1) cap 253214R1 (NSS), (2) lock 253216R1, (1) rod 253213R1 (NSS)

4шт.

25

52164DAX

BEARING SET,82.58mm ID x 87.68mm OD x 53.16mm W

connecting rod (2 halves)

4шт.

25

52165DAX

BEARING SET

connecting rod (2 halves) (.030" undersize)

4шт.

25

263201R11

KIT

BEARING, connecting rod (2 halves) (.002" undersize)

4шт.

25

263207R11

BEARING, connecting rod (2 halves) (.032" undersize)

4шт.

26

253214R1

CAP, connecting rod (order 253213R11)

4шт.

27

259960R91

CRANKSHAFT BEARING

crankshaft, front, rear and intermediate (2 halves) (standard)

4шт.

27

259963R91

CRANKSHAFT BEARING

BEARING, crankshaft, front, rear and intermediate (2 halves) (.030" undersize)

4шт.

27

263205R91

BEARING, crankshaft, front, rear and intermediate (2 halves) (.002" undersize)

4шт.

27

263211R91

BEARING, crankshaft, front, rear and intermediate (2 halves) (.032" undersize)

4шт.

28

271207R92

BEARING SET

crankshaft, center (2 halves) (standard)

1шт.

28

271213R92

KIT

BEARING, crankshaft, center (2 halves) (.030" undersize)

1шт.

28

271222R92

BEARING, crankshaft, center (2 halves) (.002" undersize)

1шт.

28

271219R92

KIT

BEARING, crankshaft, center (2 halves) (.032" undersize)

1шт.

29

10319D

PIN, crankshaft starting crank

1шт.

102718

SCREW

set, hdls., cone-pt., 5/16-18NC x 1/2"

1шт.

30

6652DB

PULLEY, fan drive

1шт.

30a

264362R1

FLINGER, crankshaft oil

1шт.

31

4254DA

LOCK

crankshaft gear nut

1шт.

32

4253D

NUT

crankshaft gear

1шт.

33

9130D

RATCHET, starting crank

1шт.

34

41073DB

SPRING, starting crank

1шт.

35

45280D

RETAINER, starting crank spring

1шт.

36

45277D

PIN, starting crank ratchet

1шт.

37

45278D

RING, snap, starting crank ratchet

1шт.

38

60946DA

SHAFT, starting crank (also order pin, 616254R1)

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

39

616254R1

LOCK PIN,3/8" x 1 5/8", Slotted

Pin, , starting crank 3/8" x 1 5/8", Slotted

1шт.

40

45279D

WASHER, starting crankshaft

1шт.

41

60908DBX

CRANK, starting (optional with 354701R31)

1шт.

41

62026DBX

CRANK, starting (adjustable wide front axle attachment with adjustable wheel base) (optional with 354698R31)

1шт.

41

354145R94

CRANK, starting (optional with 354702R31) (cotton picker mounting and cotton picker tractor attachment)

1шт.

41

354698R31

CRANK, starting (adjustable wide front axle attachment with adjustable wheel base) (optional with 62026DBX)

1шт.

41

354701R31

CRANK, starting (optional with 60908DBX)

1шт.

41

354702R31

CRANK, starting (optional with 354145R94) (cotton picker mounting and cotton picker tractor attachment)

1шт.

254260R95

BEARING SET, crankshaft (.030" undersize) (consists of (4) bearing 52165DAX, (4) bearing 259963R91, (1) bearing 271213R92)

1шт.

264414R93

PISTON RING SET

RING SET, piston (4" piston)

1шт.

277079R91

RING

SET, piston (4-1/8" piston)

1шт.

306024R91

PACKAGE

engine conversion (to convert D-264 engine to a D-281 engine) (consists of (1) gasket 53436DE, (1) sleeve set 277078R91)

1шт.
