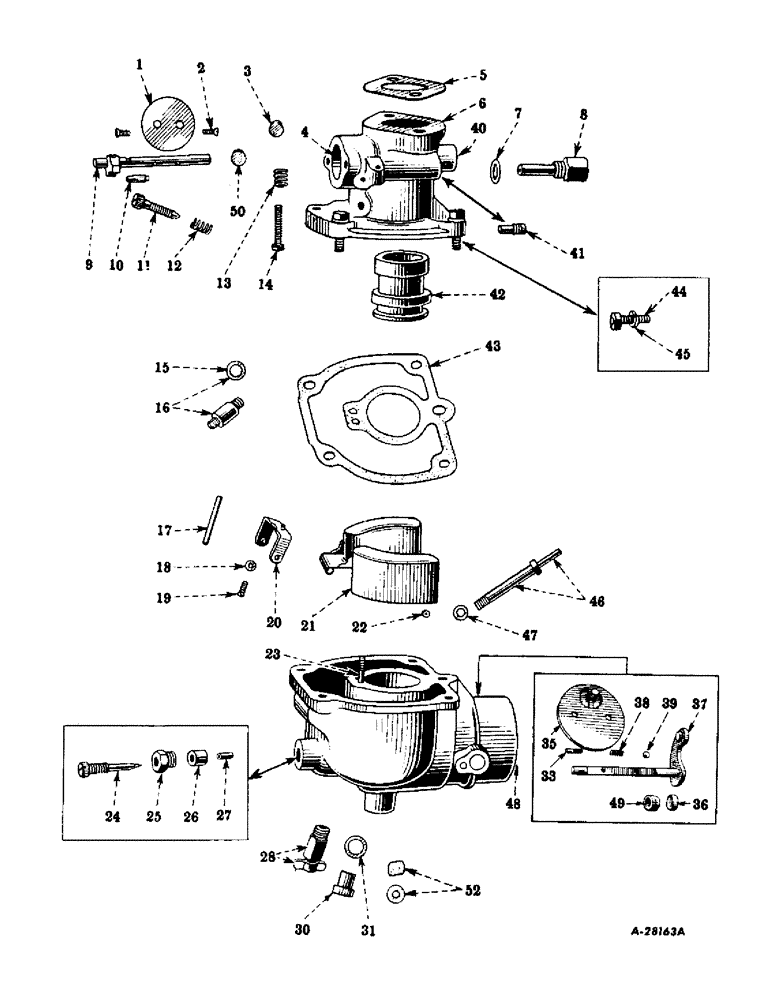

Запчасти Case IH SUPER M (040) - CARBURETED ENGINE, CARBURETOR, INTERNATIONAL, 1-1/4 INCHES UPDRAFT (01) - ENGINE

357231R92

CARBURETOR, assembly (less reference no. 5) (distillate or kerosene)

1шт.

356948R92

CARBURETOR, assembly (less reference no. 5) (gasoline)

1шт.

1

47391D

VALVE

PLATE, throttle valve

1шт.

2

47392D

SCREW

throttle valve plate

2шт.

3

24805D

PLUG

expansion, 3/8" (throttle body)

1шт.

4

49223DA

BUSHING, throttle shaft (economizer)

1шт.

5

31336D

GASKET

carburetor

1шт.

6

8867DAX

BODY, throttle, assembly (composed of (1) body 8867DA (NSS), (2) plug 32611D (NSS), (1) bushing 47390D, (2) plug 47393D, (1) bushing 49223DA, (1) plug 57956D, (1) pin 45110D, (1) screw 38525D, (1) plug 24805D)

1шт.

7

18377D

GASKET

strainer screen retainer

1шт.

8

29902DX

SCREEN

RETAINER, strainer screen, w/screen

1шт.

9

54488DAX

SHAFT

throttle, w/pin and stop

1шт.

10

45110D

PIN

throttle stop

1шт.

11

24689D

ADJUSTMENT SCREW

VALVE, needle, idle adjusting

1шт.

12

24685D

SPRING

idle adjusting needle valve

1шт.

13

25484D

SPRING

throttle stop screw

1шт.

14

186566

SCREW,Sltd Fil Hd, #10-32 x 1 1/8"

fil-hd., cd-pltd., no. 10-32 x 1-1/8"

1шт.

15

25948D

GASKET

fuel valve seat

1шт.

16

47396DAX40

NEEDLE

VALVE, fuel, w/gasket, 25948D and seat (Replaces 47396DX45)

1шт.

17

47395D

PIVOT

AXLE, float

1шт.

18

131043

LOCK WASHER,#4

Washer, Lock, , Follows Ref #20 #4

1шт.

19

86982776

SCREW,Rd, #4 - 40 x 5/16"

Follows reference no. 20

1шт.

20

47394D

SUPPORT

float axle

1шт.

86982776

SCREW,Rd, #4 - 40 x 5/16"

rd-hd., cd-pltd., no. 4 - 40 x 5/16"

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

21

47398DX

FLOAT

1шт.

22

35606D54

AIR BLEED, main

1шт.

23

49798D75

JET

idle metering (gasoline)

1шт.

23

49798D72

JET

idle metering (distillate or kerosene)

1шт.

24

47404DA

ADJUSTMENT SCREW,Pan HD, 1/4" - 32 x 1-13/32", SST

VALVE, needle, main metering

1шт.

25

24687DA

NUT,7/16" - 32 NPT

NUT, packing, main metering needle valve

1шт.

26

24703DA

PACKING

main metering needle valve (optional with 67266DX)

1шт.

26

67266DX

PACKING

main metering needle valve (optional with 24703DA)

1шт.

27

45141DA53

SEAT, main metering needle valve (distillate or kerosene)

1шт.

27

56646D

SEAT, main metering needle valve (gasoline)

1шт.

28

134519

VALVE

COCK, drain (optional with 26407D) (distillate or kerosene)

1шт.

28

46407D

COCK, drain (optional with 134519) (distillate or kerosene)

1шт.

30

47402D

NUT

clamp, main discharge jet

1шт.

31

32615D

GASKET

main discharge jet clamp nut

1шт.

33

142484

HANDLE

PIN (groove, no. 1, 1/8 x 1/2") (in fuel bowl) (optional with 351588R1)

1шт.

33

351588R1

PIN

(groove, no. 1, 1/8 x 1/2") (in fuel bowl) (optional with 142484)

1шт.

35

357002R12

SHUTTER

PLATE, choke valve

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

rd-hd., no. 6-32 x 1/4"

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

36

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, dust seal choke valve

1шт.

37

357000R91

SHAFT

choke valve, w/lever

1шт.

38

46059D

SPRING

friction, choke valve lever

1шт.

39

52791R1

BALL,3/16" Dia, Stainless

choke valve lever, friction spring, 3/16"

1шт.

40

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

1шт.

41

24693D

PLUG, idle outlet

1шт.

42

47407D27

MAKING-UP

VENTURI (optional with 64987D27)

1шт.

42

64987D27

VENTURI (optional with 47407D27)

1шт.

43

47388DA

GASKET

fuel bowl

1шт.

44

180021

SPRING

Follows reference no. 48

1шт.

45

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Follows ref #48 1/4"

1шт.

46

47400DAX

JET, main discharge (distillate or kerosene)

1шт.

46

356998R11

NOZZLE INJECTION

JET, main discharge (gasoline)

1шт.

47

47401D

GASKET

main discharge jet

1шт.

48

356996R11

BOWL, fuel, assembly (gasoline) (composed of (1) air bleed, (1) plug 57957D (NSS), (1) bowl 356996R1 (NSS), (1) retainer 45148D, (1) filler 27445DB (NSS), (1) seal 45149DA, (1) pin 351588R1, (1) seat 56464D, (1) plug 32611D (NSS)

1шт.

117243

BOTTOM

PLUG, pipe, sq-hd., cd-pltd., 1/8"

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, cap, hex-hd., cd-pltd., 1/4-20NC x 7/8"

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

48

357477R91

BOWL, fuel, assembly (distillate or kerosene) (composed of (1) air bleed 35606D54, (1) plug 57957D (NSS), (1) bowl 356996R1 (NSS), (1) retainer 45148D, (1) filler 27445DB (NSS), (1) seal 45149DA, (1) pin 351588R1, (1) seat 45141DA53, (1) plug 32611D (NSS)

1шт.

180021

SPRING

SCREW, cap, hex-hd., cd-pltd., 1/4-20NC x 7/8"

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

49

45149DA

SEAL

dust, choke valve

1шт.

50

57956D

PLUG

expansion, throttle shaft, 7/16"

1шт.

52

60947D

PLUG

FILLER AND PLUG, drip hole

1шт.

354453R91

KIT

1шт.

PACKAGE, carburetor overhaul (consists of (1) ball 52791R1, (1) screen 29902DX, (1) filter and plug 60947D, (1) screw 47404DA, (1) gasket 31336D, (1) screw 24689D, (1) gasket 47388DA, (2) screw 47392D, (1) gasket 60311D, (1) screw 131894, (1) gasket 66272D, (2) screw 132688, (1) gasket 47401D, (1) screw 186566, (1) gasket 32615D, (1) seal 45149DA, (1) gasket 18377D, (1) shaft 54488DAX, (1) packing 24703DA, (1) spring 24685D, (1) pivot 47395D, (1) spring 46059D, (1) retainer 45148D, (1) valve 47396DX45, (1)

1шт.

38525D

SCREW, drive, number plate (Parker-Kalon 0 x 3/16", type "U")

1шт.

ROD, choke (see engine control and instruments)

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16 x 1/2"

1шт.

SUPPORT, control rod (super "M" and "MV") (for belt pulley, choke and starting control rod) (illustrated with cranking motor) (see engine control and instruments)

1шт.
