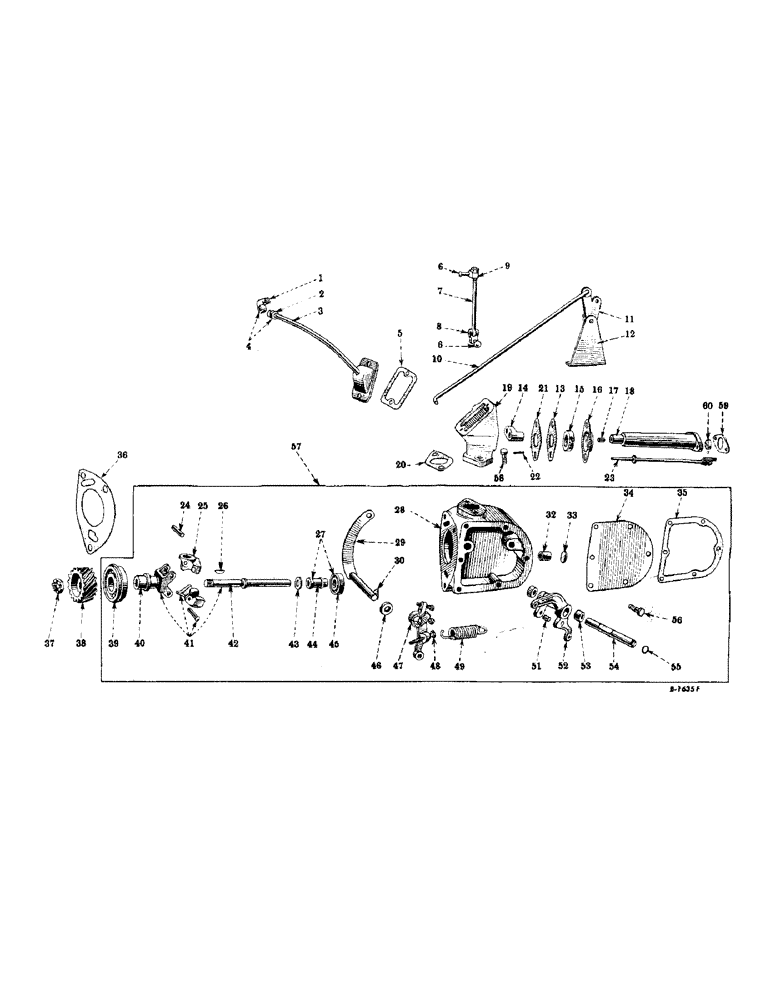

Запчасти Case IH SUPER M (036) - CARBURETED ENGINE, GOVERNOR AND CONNECTIONS (01) - ENGINE

1

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

governor breather tube

1шт.

2

278953R91

NUT

governor breather tube connector

1шт.

3

51208DX

TUBE, governor breather, w/throttle lever cover and nut 278953R91

1шт.

114353

SCREW,Slotted Fil Hd, 1/4"-20 x 1/2"

fil-hd., 1/4-20NC x 1/2"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

37323DX

ELBOW

governor breather tube 37323D, w/nut 278953R91

1шт.

5

48501DA

GASKET

throttle lever cover

1шт.

6

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, connecting, throttle shaft lever

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16 x 1/2"

1шт.

6

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, rockshaft lever

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16 x 1/2"

1шт.

7

48839DX

ROD, connecting, throttle shaft, w/block and pin 48496DA

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

8

48496DA

PIN, throttle connecting rod

1шт.

9

6289D

BLOCK, adjusting, governor connecting rod

1шт.

10

49041DA

ROD, governor control, front

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

Q243

WASHER

plain, 21/46" I.D. x 3/4" O.D. x no. 16 ga.

2шт.

11

6715DA

LEVER

BELLCRANK, governor control

1шт.

12

48992DAX

SUPPORT

BRACKET, governor control bellcrank, w/pin

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

plain, 17/32 I.D. x 1-1/16" O.D. x no. 13 ga.

1шт.

13

54088D

PLATE, retainer, throttle shaft housing felt

1шт.

14

6288D

LEVER

throttle shaft

1шт.

15

48493D

WASHER

WASHER, felt, throttle shaft housing

1шт.

16

48492D

RETAINER, felt, throttle shaft housing

1шт.

114354

SCREW,Sl Fil Hd, 1/4" - 20 x 5/8"

fil-hd., 1/4-20NC x 5/8"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16558R1

WASHER

plain, 17/64 I.D. x 5/8" O.D. x no. 18 ga.

2шт.

17

45696D

BUSHING

throttle shaft

1шт.

18

6736DBX

HOUSING, governor throttle shaft, w/bushing 45696D and oil seal 362201R91

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

slotted-rd-hd., 1/4-20NC x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

6737D

HOUSING, governor connecting rod

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

20

48489D

GASKET

governor connecting rod housing

1шт.

21

53877DA

GASKET

throttle shaft housing felt retainer

1шт.

22

NLS

NO LONGER SERVICED

Pin, Grooved, 3/32" x 1/2", Type A, throttle shaft lever

1шт.

23

49788DXA

SHAFT

throttle

1шт.

24

45656DA

PIN,6.35mm OD x 38.1mm L

governor weight

2шт.

25

45655DA

WEIGHT

governor

2шт.

26

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

27

351910R91

BEARING ASSY

SLEEVE, governor, 48250D, w/bearing ST506

1шт.

28

8363DBX

HOUSING, governor, w/bushing 48227D, plug 172540, seal 45667D and washer 103322

1шт.

29

48842DAX

LEVER

speed change, w/shaft (optional with 355989R11)

1шт.

29

355989R11

LEVER

speed change, w/shaft (optional with 48842DAX)

1шт.

30

106749

KEY

Woodruff, 3, 1/8 x 1/2" (governor spring lever)

1шт.

32

48227D

BUSHING

governor housing

1шт.

33

172540

PULLEY

expansion, 7/8" (in governor housing)

1шт.

34

49107D

COVER, governor housing

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

SCREW, cap, hex-hd., 5/16-18NC x 3/4"

4шт.

28950D

WASHER

governor housing cover

4шт.

35

49108DA

GASKET

governor housing cover

1шт.

36

45685D

GASKET

governor housing

1шт.

37

451074

Follows reference no. 42

1шт.

38

45935D

GEAR

governor (17 teeth)

1шт.

39

ST289

BEARING, BALL,25mm ID x 62mm OD x 17mm W

BEARING, governor shaft (IH-GC-325)

1шт.

40

48256DA

CARRIER

governor weight (optional with 360535R1)

1шт.

40

360535R1

CARRIER, governor weight (optional with 48256DA)

1шт.

41

48256DAXB

CARRIER

WEIGHT, governor, w/carrier, assembly (composed of (1) carrier 48256DA, (1) key 124547, (2) pin 45656DA, (1) shaft 48255DA, (2) weight 45655DA)

1шт.

42

48255DA

SHAFT

governor

1шт.

451074

NUT, jam, hex., slotted, 9/16-18NF

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

43

45653D

THRUST WASHER

thrust, governor sleeve

1шт.

44

48250D

SLEEVE

governor

1шт.

45

ST506

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

BEARING, thrust, governor (IH-C-217-1)

1шт.

46

45667D

SEAL

OIL SEAL, speed change shaft (optional with 357968R91)

1шт.

46

357968R91

SEAL

OIL SEAL, speed change shaft (optional with 45667D)

1шт.

47

6676DA

LEVER, governor spring

1шт.

220064

NUT

hex., 1/4-20NC

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

48

49528D

BOLT, governor spring lever, long

1шт.

49

357012R1

VALVE SPRING

SPRING, governor (optional with 49407DBX)

1шт.

49

49407DBX

SPRING

governor (optional with 359012R1)

1шт.

51

48254D

PIN, thrust, governor rockshaft lever

2шт.

52

6633DBX

LEVER

governor rockshaft, w/two pins 48254D

1шт.

53

45775D

NEEDLE BEARING,Needle, 12.74mm ID x 17.48mm OD x 12.7mm W

governor rockshaft (Torrington B-88)

2шт.

54

48253DA

ROCKSHAFT

governor

1шт.

55

21362D

RING, snap, governor rockshaft

1шт.

56

364489R1

SCREW, governor housing cover (will work for 10958D)

2шт.

28950D

WASHER

governor housing cover screw

2шт.

57

360087R91

GOVERNOR, variable speed, assembly

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

58

364489R1

SCREW, governor connecting rod housing (will work for 10958D)

1шт.

59

66272D

GASKET

throttle shaft, Serial Range: housing-carburetor

1шт.

60

362201R91

OIL SEAL

OIL SEAL, governor throttle shaft

1шт.

12736D

ELECTRICAL WIRE

SEAL, governor

1шт.

356732R94

GOVERNOR

1шт.

PACKAGE, service, governor overhaul (consists of (1) bearing ST289, (1) key 124543, (2) bearing 45775D, (1) lever 48842DAX, (1) bearing ahs sleeve asm. 351910R91, (1) nut 451074, (1) bushing 48227D, (1) oil seal 45667D, (1) gasket 45685D, (1) plug 172540, (1) gasket 48489D, (1) seal 12736D, (1) gasket 48501DA, (1) spring 49407DBX, (1) gasket 49108DA, (1) washer 45653D, (1) gasket 53877DA, (2) washer 48493D, (1) gasket 66272D, (1) weight 48256DAXB)

1шт.

363144R92

GASKET

PACKAGE, governor gasket (consists of (1) gasket 45685D (1) gasket 48489D, (1) gasket 48501DA, (1) gasket 49108DA, (1) gasket 53877DA, (1) gasket 66272D, (1) washer 48493D)

1шт.
