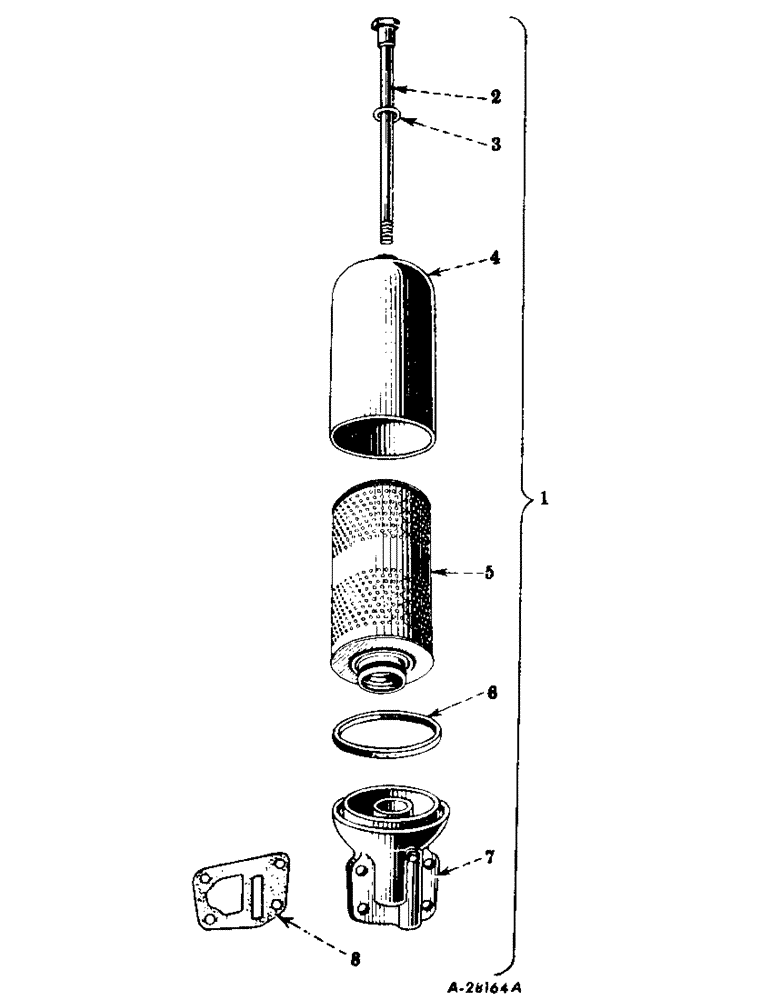

Запчасти Case IH SUPER M (032) - CARBURETED ENGINE, LUBRICATING OIL FILTER (01) - ENGINE

1

46689DE

FILTER, oil, assembly (less reference no. 8)

1шт.

2

43418D

BOLT, retaining, oil filter case

1шт.

3

13727D

GASKET

GASKET, oil filter case retaining bolt (optional with 365109R1)

1шт.

3

365109R1

GASKET

oil filter case retaining bolt (optional with 13727D)

1шт.

4

43417D

CASE, oil filter

1шт.

5

360431R91

ELEMENT

oil filter (radial fin type-normal duty) (optional with 355010R91)

1шт.

5

355010R91

FILTER, ENGINE OIL

ELEMENT, oil filter (radial fin type-heavy duty) (optional with 360431R91)

1шт.

6

13728D

GASKET

oil filter case

1шт.

7

6253DBX

BASE, oil filter, w/two plugs 103866

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq-hd., 1/4" (optional with 103878)

2шт.

103878

PLUG

pipe, sq-hd., 1/4" (optional with 103866)

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (see note)

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See note) 3/8"

4шт.

8

45447D

GASKET

oil filter base

1шт.

538828R91

KIT

spin on conversion

1шт.

538836R1

ENGINE OIL FILTER

KIT

1шт.
