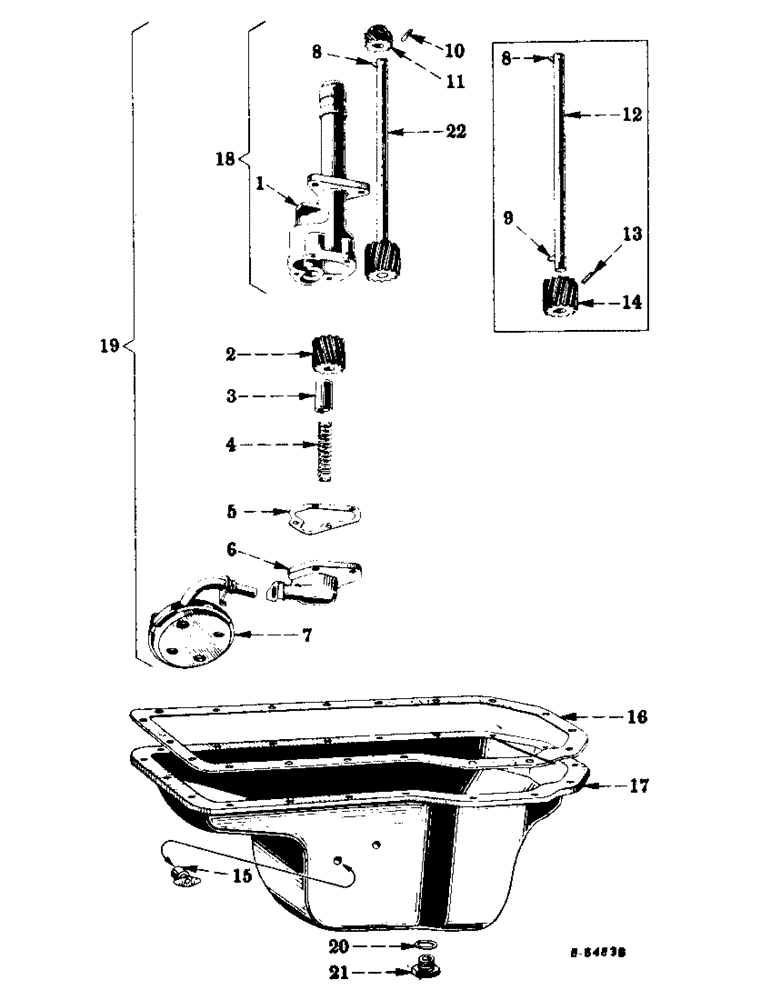

Запчасти Case IH SUPER M (027) - CARBURETED ENGINE, CRANKCASE OIL PAN AND LUBRICATING OIL PUMP (01) - ENGINE

1

6365DX

BODY, oil pump, w/plug 103866 and shaft

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq-hd., C.I., 1/4" (optional with 103878)

1шт.

103878

PLUG

pipe, sq-hd., stl., 1/4" (optional with 103866)

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

46153D

GEAR

idler oil pump (12 teeth)

1шт.

3

45285DA

VALVE

oil regulating

1шт.

4

62672D

SPRING

oil regulating valve

1шт.

5

45704D

GASKET

oil pump cover

1шт.

6

8576DA

COVER

oil pump

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

56108D

FILTER SCREEN

SCREEN, oil pump (floto)

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

8

106750

KEY

Woodruff, no. 6 (oil pump drive pinion)

1шт.

9

106750

KEY

Woodruff, no. 6 (oil pump body gear) (used with gear - see ref. 14)

1шт.

10

141881

PIN,1/8" x 1 3/16"

oil pump drive pinion (will work for 1858T)

1шт.

11

45052D

GEAR

PINION, drive, oil pump (11 teeth)

1шт.

12

359715R1

SHAFT

drive, oil pump (no longer serviced separately - order gear and shaft see ref. 22)

1шт.

13

45051D

PIN, oil pump body gear (used with gear - see ref. 14)

1шт.

14

46152D

GEAR

oil pump drive shaft (12 teeth) (no longer serviced separately - order gear and shaft - see ref. 22)

1шт.

15

1998TA

VALVE

oil gage, 3/8"

2шт.

16

46109DA

GASKET

crankcase pan

1шт.

17

363635R91

PAN, crankcase, w/gasket, 3405H, plug, 359875R1 and two plugs, 103867

1шт.

103867

PLUG

pipe, sq-hd., C.I., 3/8" (in oil gage valve hole) (optional with 103879)

2шт.

103879

PLUG, pipe, sq-hd., stl., 3/8" (in oil gage valve hole) (optional with 103867)

2шт.

423353

SCREW, machine, hex-hd., 3/8-16NC x 7/8", w/external tooth lock washer (optional w/446564)

16шт.

446564

SCREW, machine, hex-hd., 3/8-16NC x 7/8", w/external tooth lock washer (optional w/423353)

16шт.

271064

SPRING

SCREW, machine, hex-hd., 3/8-16NC x 1-1/8", w/external tooth lock washer (optional w/423355)

2шт.

423355

SCREW, machine, hex-hd., 3/8-16NC x 1-1/8", w/external tooth lock washer (optional w/271064)

2шт.

18

46154DA

BODY, oil pump, assembly (composed of (1) body 6365DA, (1) gear and shaft 364948R91, (1) key 106750, (1) pin 141881, (1) pinion 45052D)

1шт.

19

54533DA

PUMP, lubricating oil, assembly (composed of (1) body 46154DA, (1) screen 56108D, (1) cover 8576DA, (4) screw 179839D, (X) gasket 45704D, (1) spring 62672D, (1) gear 46153D, (1) valve 45285DA, (1) pin 103386, (4) washer 103321

1шт.

20

3405H

GASKET

crankcase pan drain plug

1шт.

21

359875R1

PLUG

drain, crankcase pan

1шт.

22

364948R91

SHAFT

GEAR (12 teeth) AND SHAFT, oil pump body (will work for gear, 461520 and shaft, 359715R1)

1шт.
