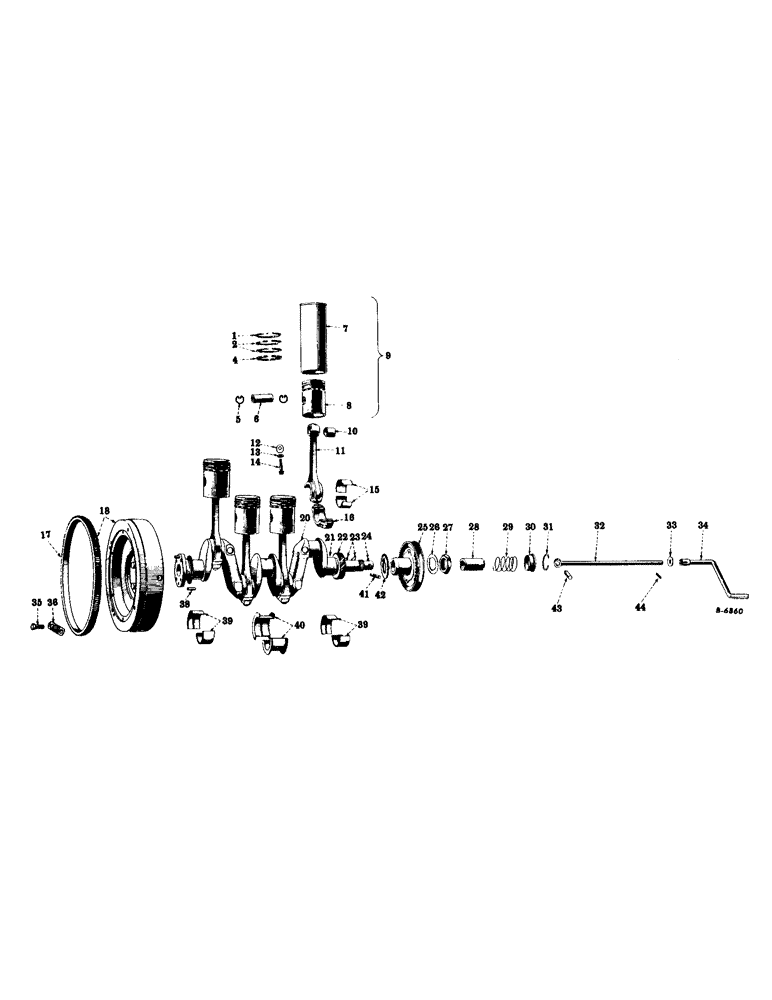

Запчасти Case IH SUPER M (021) - CARBURETED ENGINE, CRANKSHAFT, RODS, PISTONS, CYLINDER SLEEVES, DRIVE PULLEY, FLYWHEEL & CRANK (01) - ENGINE

1

366270R1

RING, compression, piston (chrome) (top or first groove) (for aluminum pistons) (see note A)

4шт.

1

366271R1

RING, compression, piston (chrome) (top or first groove) (for gray iron pistons) (see note A)

4шт.

1

366491R1

RING, compression, piston (top or first groove) (see note B)

4шт.

1

366510R1

RING, compression, piston (top or first groove) (kerosene burning engine tractors only) (see note B)

4шт.

2

356967R1

RING, compression, piston (second or third groove) (optional with 357618R1) (see note A)

8шт.

2

357618R1

RING, compression, piston (second or third groove) (optional with 356967R1) (see note A)

8шт.

2

366489R1

RING

compression, piston (second or third groove) (see note B)

8шт.

4

366273R91

RING, oil, piston (chrome) (fourth groove) (see note A)

4шт.

4

366492R91

RING, oil, piston (fourth groove) (see note B)

4шт.

5

45739D

RING

piston pin retainer (see note A)

8шт.

5

364930R1

RING

piston pin retainer (see note B)

8шт.

6

45751DA

PIN

piston (standard) (see note A)

4шт.

6

52607DA

PIN, piston (.005" oversize) (see note A)

4шт.

6

364928R1

PIN

piston (standard) (see note B)

4шт.

6

364929R1

PIN

piston (.005" oversize) (see note B)

4шт.

7

366481R1

SLEEVE

cylinder

4шт.

8

PISTON (order cylinder sleeve with piston and rings, assembly, for standard or high altitude)

4шт.

9

366476R91

PISTON ASSY.

SLEEVE SET, crankcase ("thinwall") (consists of four sleeves and w/pistons and rings, 366477R91) (gasoline-standard altitude) (order 374455R91) (see note D)

1шт.

9

374455R91

SLEEVE SET, crankcase ("fire crater increased power") (consists of four sleeves w/pistons and rings, 374456R91) (gasoline-standard altitude) (see note D)

1шт.

9

366513R91

SLEEVE SET, crankcase ("thinwall") (consists of four sleeves w/pistons and rings, 366520R91) (gasoline-high altitude, also liquefied petroleum gas-standard and high altitude) (order 374469R91) (see note D)

1шт.

9

374469R91

PISTON ASSY.

SLEEVE SET, crankcase ("fire crater increased power") (consists of four sleeves w/pistons and rings, 374470R91) (gasoline-high altitude, also liquefied petroleum gas-standard altitude) (see note D)

1шт.

9

366477R91

PISTON

SLEEVE, cylinder w/piston and rings assembly ("thinwall") (gasoline-standard altitude) (see note C) (composed of (1) pin 364928R1, (1) piston (NSS), (2) ring 364930R1, (2) ring 366489R1, (1) ring 366491R1, (1) ring 366492R91, (1) sleeve 366481R1)

4шт.

9

374456R91

PISTON ASSY.

4шт.

SLEEVE, cylinder, w/piston and rings, assembly ("fire crater increased power") (gasoline-standard altitude) (composed of (1) pin 45751DA, (1) piston 374457R1 (NSS), (2) ring 45737D, (2) ring 366489R1, (1) ring 366491R1, (1) ring 366492R91, (1) sleeve 366479R1 (NSS)

1шт.

9

366520R91

4шт.

SLEEVE, cylinder, w/piston and rings, assembly ("thinwall") (gasoline high altitude, also liquefied petroleum gas-standard altitude) (see note C) (composed of (1) pin 364928R1, (1) piston 366521R1 (NSS), (2) ring 364930R1, (2) ring 366489R1, (1) ring 366491R1, (1) ring 366492R91, (1) sleeve 366479R1 (NSS)

1шт.

9

374470R91

PISTON

4шт.

SLEEVE, cylinder, w/piston and rings, assembly ("fire crater increased power") (gasoline-high altitude, also liquefied petroleum gas-standard altitude) (composed of (1) pin 45751DA, (1) ring 366491R1, (1) piston 374471R1 (NSS), (1) ring 366492R91, (2) ring 45739D, (1) sleeve 366479R1 (NSS), (2) ring 366489R1

1шт.

9

366495R91

SLEEVE SET, crankcase ("thinwall") (consists of four sleeves w/pistons and rings 366496R91) (distillate-standard altitude) (see note D)

1шт.

9

366515R91

SLEEVE SET, crankcase ("thinwall") (consists of four sleeves w/pistons and rings 366526R91) (distillate-high altitude) (see note D)

1шт.

9

366496R91

4шт.

SLEEVE, cylinder w/piston and ring, assembly ("thinwall") (distillate-high altitude) (see note C) (composed of (1) pin 364928R1, (1) ring 366491R1, (1) piston 366527R1 (NSS), (1) ring 366492R91, (2) ring 364930R1, (1) sleeve 366479R1 (NSS), (2) ring 366489R1

1шт.

9

366526R91

4шт.

SLEEVE, cylinder w/piston and ring, assembly ("thinwall") (distillate-high altitude) (see note C) (composed of (1) pin 364928R1, (1) ring 366491R1, (1) piston 366527R1 (NSS), (1) ring 366492R91, (2) ring 364930R1, (1) sleeve 366479R1 (NSS), (2) ring 366489R1

1шт.

9

366502R91

SLEEVE SET, crankcase ("thinwall") (consists of four sleeves w/piston and rings 366503R91) (kerosene-standard altitude) (see note D)

1шт.

9

366517R91

SLEEVE SET, crankcase ("thinwall") (consists of four sleeves w/piston and rings 366532R91) (kerosene-high altitude) (see note D)

1шт.

9

366503R91

4шт.

SLEEVE, cylinder, w/piston and rings, assembly ("thinwall") (kerosene-standard altitude) (see note C) (composed of (1) pin 364928R1, (1) ring 366510R1, (1) piston 366504R1 (NSS), (1) ring 366492R91, (2) ring 364930R1, (1) sleeve 366479R1 (NSS), (2) ring 366489R1

1шт.

9

366532R91

4шт.

SLEEVE, cylinder wpiston and rings, assembly ("thinwall") (kerosene-high altitude) (see note C) (composed of (1) pin 364928R1, (1) ring 366492R91, (1) piston 366533R1 (NSS), (1) ring 366510R1, (2) ring 364930R1, (1) sleeve 366479R1 (NSS), (2) ring 366489R1

1шт.

10

45748DAR

BUSHING,33.02mm ID x 35.991mm OD x 38.73mm L

BUSHING, piston pin (will work for 45748DA (NSS)

4шт.

11

45750DAX

ROD, connecting, assembly (composed of (2) bolt 63120D, (1) bushing 45748DAR, (1) cap 45749DB (NSS), (2) lock 47496DB, (1) rod 45750DA (NSS), (2) washer 63116D)

4шт.

12

47496DB

LOCK

connecting rod bolt

8шт.

13

63116D

WASHER

connecting rod bolt

8шт.

14

63120D

BOLT,Hex, 7/16" - 20 x 2 5/32"

connecting rod

8шт.

15

356957R11

BEARING ASSY,64.78mm ID x 68.61mm OD x 43.92mm W

connecting rod (2 halves) (standard)

4шт.

15

356959R11

BEARING LINER

BEARING, connecting rod (2 halves) (.002" undersize)

4шт.

15

360203R11

BEARING, connecting rod (2 halves) (.003" undersize)

4шт.

15

356958R11

BEARING ASSY

connecting rod (2 halves) (.030" undersize)

4шт.

15

356960R11

BEARING, connecting rod (2 halves) (.032" undersize)

4шт.

16

45749DB

CAP, connecting rod (order 45750DAX)

4шт.

17

46142DB

GEAR

ring, flywheel (125 teeth)

1шт.

18

356995R11

FLYWHEEL, w/ring gear, 46142DB

1шт.

20

353746R94

CRANKSHAFT, w/bearings, assembly (standard) (composed of (4) bearing 356957R11, (1) crankshaft 45571DE (NSS), (2) bearing 356985R11, (1) nut 4253D, (1) bearing 356986R11, (2) pin 46923D

1шт.

20

352749R94

CRANKSHAFT, w/bearing, assembly (.030" oversize) (composed of (4) bearing 356958R11, (1) crankshaft 45572DF (NSS), (2) bearing 356987R11, (1) nut 4253D, (1) bearing 356988R11, (2) pin 46923D)

1шт.

21

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, Woodruff "A", 1/4 x 7/8", ni-stl. (crankshaft pinion)

1шт.

22

45627D

PINION

crankshaft (29 teeth)

1шт.

23

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, type-B, Woodruff (fan drive pulley)

1шт.

24

102718

SCREW

starting crank pin (order 455238R1)

1шт.

25

6765DC

PULLEY, fan drive

1шт.

26

4254DA

LOCK

crankshaft pinion nut

1шт.

27

4253D

NUT

crankshaft pinion

1шт.

28

9138D

RATCHET, starting crank, C-264, Serial Range: 501-113386

1шт.

28

360512R1

RATCHET, starting crank, C-264 113387 up

1шт.

29

41073DB

SPRING, starting crank

1шт.

30

45280D

RETAINER, starting crank spring

1шт.

31

45278D

RING, snap, starting crank ratchet

1шт.

32

60969DA

CRANKSHAFT, starting (also order pin, 576483R1)

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

33

45279D

WASHER, starting crankshaft

1шт.

34

51544DBX

CRANK

starting (optional with 354705R31 and 360449R11)

1шт.

34

354705R31

CRANK, starting (optional with 51544DBX and 360449R11)

1шт.

34

360449R11

CRANK, starting (optional with 51544DBX and 354705R31)

1шт.

34

52916DBX

CRANK, starting (optional with 354700R93) (super "M") (adjustable wide front axle attachment with adjustable wheel base)

1шт.

34

354700R93

CRANK, starting (optional with 52916DBX) (super "M") (adjustable wide front axle attachment with adjustable wheel base)

1шт.

34

351335R31

CRANK, starting (cotton picker mounting and cotton picker tractor attachment) (optional with 354703R93)

1шт.

34

354703R93

CRANK, starting (cotton picker mounting and cotton picker tractor attachment) (optional with 351335R31)

1шт.

35

43832D

SCREW

BOLT, Serial Range: flywheel-crankshaft

4шт.

36

45613D

SHEET

LOCK, flywheel to crankshaft bolt

2шт.

38

46923D

PIN

dowel, flywheel

2шт.

39

356985R11

BEARING ASSY

crankshaft, front and rear (2 halves) (standard)

2шт.

39

356989R11

BEARING LINER

BEARING, crankshaft, front and rear (2 halves) (.002" undersize)

2шт.

39

360205R11

BEARING, crankshaft, front and rear (2 halves) (.003" undersize)

2шт.

39

356987R11

BEARING ASSY

crankshaft, front and rear (2 halves) (.030" undersize)

2шт.

39

356991R11

BEARING, crankshaft, front and rear (2 halves) (.032" undersize)

2шт.

40

356986R11

BEARING ASSY

crankshaft, center (2 halves) (standard)

1шт.

40

356990R11

BEARING ASSY

BEARING, crankshaft, center (2 halves) (.002" undersize)

1шт.

40

360206R11

BEARING, crankshaft, center (2 halves) (.003" undersize)

1шт.

40

356988R11

BEARING

crankshaft, center (2 halves) (.030" undersize)

1шт.

40

356992R11

BEARING, crankshaft, center (2 halves) (.032" undersize)

1шт.

41

455238R1

LOCK PIN,1/2" x 2 1/2", Slotted

Pin, , starting crank (will work for 10319D and/or 102718) 1/2" x 2 1/2", Slotted

1шт.

42

366796DA

FLINGER, oil, crankshaft front

1шт.

43

45277D

PIN, starting crank ratchet

1шт.

44

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, , starting crank 5/16" x 1 1/2", Slotted

1шт.

356973R91

RING

SET, piston (for aluminum pistons) (consists of twelve compression and four oil control rings) (2-in-1 chrome) (see note A)

1шт.

366493R91

PISTON RING SET

RING SET, piston (for aluminum pistons) (consists of twelve compression and four oil control rings) (2-in-1 chrome) (see note B)

1шт.

357683R91

RING SET, piston (for grey iron pistons) (consists of twelve compression and four oil control rings) (2-in-1 chrome) (see note A)

1шт.

366494R91

RING SET, piston (for grey iron pistons) (consists of twelve compression and four oil control rings) (2-in-1 chrome) (see note B)

1шт.

367885R91

KIT

BEARING SET, crankshaft (standard) (consists of 1 - 365986R11 and 2 - 356985R11 bearings)

1шт.

372125R91

PACKAGE

BEARING SET, crankshaft (.030" undersize) (consists of 1 - 356988R11 and 2 - 356987R11 bearings)

1шт.

367883R91

KIT

BEARING SET, connecting rod (standard) (consists of 4 - 356957R11 bearings)

1шт.

372123R91

KIT

BEARING SET, connecting rod (.030" undersize) (consists of 4 - 356958R11 bearings)

1шт.

367128R92

PACKAGE

CONNECTING ROD ADAPTER AND BUSHING SERVICE PACKAGE (consists of four adapters and bushings 368274R92)

1шт.

368724R92

CONNECTING ROD ADAPTER AND BUSHING

1шт.
