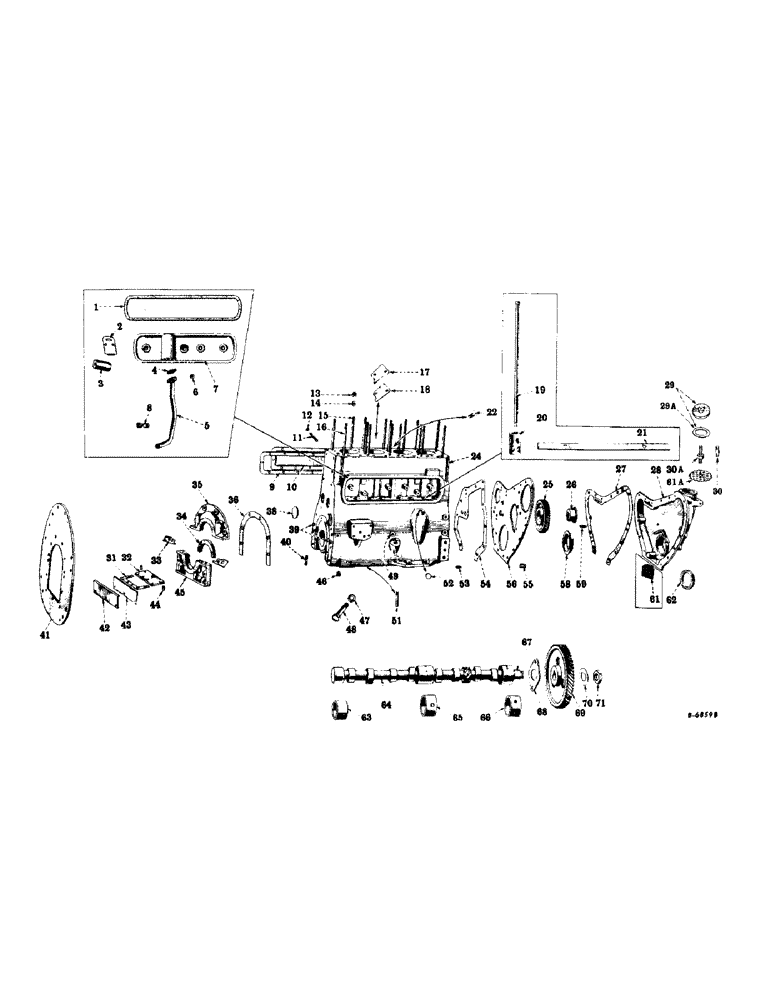

Запчасти Case IH SUPER M (016) - CARBURETED ENGINE, CRANKCASE, FRONT COVER, REAR ENGINE SUPPORT, CAMSHAFT AND RELATED PARTS (01) - ENGINE

1

49029DB

GASKET

push rod chamber side plate

1шт.

2

46696DX

BAFFLE, breather, w/plate

1шт.

100750

FITTING

SCREW, slotted-rd-hd., no. 8-32NC x 3/8" Slotted Rd Hd, #8-32 x 3/8"

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

3

50975D

ELEMENT

breather

1шт.

4

46700D

GASKET

breather pipe flange

1шт.

5

49028DAX

PIPE, breather, w/flange

1шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

62866D

WASHER,5/64" Thk x 13/32" ID

push rod chamber side plate bolt (optional with 357374R1)

4шт.

6

357374R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER, push rod chamber side plate bolt (optional with 62866D)

4шт.

7

49025DX

PLATE, side, push rod chamber, w/two nuts

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

4шт.

8

50496D

CLIP, breather pipe

1шт.

9

46128DA

CYLINDER HEAD GASKET

water header

1шт.

10

46125DA

PLATE

HEADER, water, w/cover

1шт.

179814

SPACER

(5 used with liquefied petroleum gas) Hex, 5/16"-18 x 5/8", G5

8шт.

11

29070D

STUD

water header

8шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

8шт.

12

28950D

WASHER

water header stud nut

8шт.

12

28950D

WASHER

water header cap screw (5 used with liquefied petroleum gas)

8шт.

13

4097DA

NUT

cylinder head stud

16шт.

14

60580D

WASHER

cylinder head stud

2шт.

15

49023DA

STUD

cylinder head, long, 7.0625 x 1/2

4шт.

16

46117D

STUD

cylinder head, short, 6.875 x 1/2

12шт.

17

29710D

COVER

fuel pump opening

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/16-18NC x 1/2"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

24524D

GASKET

fuel pump opening cover

1шт.

19

48830DA

ROD, valve push (optional with 355072R91)

8шт.

19

355072R91

ROD, valve push (optional with 48830DA)

8шт.

20

45956D

TAPPET

valve

8шт.

21

49027D

STOP, valve tappet

1шт.

113860

SCREW, machine, slotted-rd-hd., 5/16-18NC x 5/8" Slotted Rd Hd, 5/16"-18 x 5/8"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

45314DC

PLUG

drain, crankcase water

1шт.

24

356981R93

1шт.

CRANKCASE, assembly (composed of (1) bearing 53422DA, (1) bearing 53423DB, (1) bearing 53424DA, (6) bolt 366097R1, (2) cap 6370D (NSS), (1) cap 6371D (NSS), (2) cork 104942, (1) cover 29710D, (1) crankcase 365586R1 (NSS), (1) gage 365586R1 (NSS), (1) gasket 24524D, (8) Nut 103025, (2) pin 25086DA, (2) pin 45391D, (1) plug 45314DC, (3) plug 50410DA, (2) plug 126045, (1) plug 172545, (1) plug 172593, (2) screw 179812, (8) stud 29070D, (12) stud 46117D, (4) stud 49023DA, (6) washer 366098R1, (2) washer 103320,

1шт.

3066422R1

PLUG

pipe, csk-hdls., 3/8"

2шт.

25

6362DX

GEAR

idler, w/bushing (41 teeth)

1шт.

26

6239DX

SHAFT, idler gear, w/pin

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

27

354956R2

GASKET

crankcase front cover

1шт.

28

354955R31

COVER, crankcase, front, assembly (composed of (1) cover 354955R3 (NSS), (1) deflector 46129D, (1) oil seal 53872D, (1) pointer 46258D, (1) screen 363232R1, (1) stud 363231R1)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

179842

SPACER

cap, hex-hd., 3/8-16NC x 1-3/8"

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

28

355121R21

COVER, crankcase, front assembly (for tractors equipped with service meter attachment) (composed of (1) cover 355121R2 (NSS), (1) deflector 46129D, (1) oil seal 53872D, (1) pointer 46258D, (1) screen 363232R1, (1) stud 363231R1)

1шт.

29

4819DX

CAP

oil filler

1шт.

29a

364420R1

GASKET, oil filler cap

1шт.

30

24517D

STUD, oil filler cap (used with cover, 355121R1 (NSS)

1шт.

220066

NUT, hex., 3/8-16NC

1шт.

30a

363231R1

STUD, oil filler cap (used with cover, 355121R2 (NSS)

1шт.

31

46134D

GASKET

crankshaft rear oil seal retainer plate

1шт.

32

46133DX

PLATE, crankshaft rear oil seal retainer, w/stud, 46135D

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

33

46121D

GASKET

crankshaft rear oil seal retainer, center

2шт.

34

57613DA

OIL SEAL

FELT, crankshaft rear oil seal

2шт.

35

6363DD

RETAINER, crankshaft rear oil seal, upper

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q1597

WASHER

plain, 13/32" I.D. x 3/4" O.D. x no. 16 ga.

4шт.

36

46131DA

GASKET

crankshaft rear oil seal retainer

1шт.

38

172593

WASHER

expansion, 2-1/8" (camshaft rear bearing)

1шт.

39

25086DA

STUD

PIN, dowel, rear engine support

2шт.

40

46135D

STUD, crankshaft rear oil seal retainer plate

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

41

48949D

SUPPORT, rear engine

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

42

46137D

SEAL

crankcase rear dust seal

1шт.

43

46136D

SEAL

DUST SEAL, crankcase rear

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

44

25093DA

PLUG

felt, crankshaft rear oil seal retainer plate

2шт.

45

6364DC

RETAINER

crankshaft rear oil seal, lower

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8"

2шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 2-3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q1597

WASHER

plain, 13/32" I.D. x 3/4" O.D. x no. 16 ga.

4шт.

46

104942

DISC

CORK, no. 6 standard, no. 2X grade, 9/16 x 3/4 x 15/16" long (crankcase locating hole plug)

2шт.

47

366098R1

WASHER

crankshaft bearing cap bolt (will work for 46124D)

6шт.

48

366097R1

BOLT, crankshaft bearing cap (will work for 48872D)

6шт.

49

50410DA

PLUG

oil header, 1/8"

3шт.

51

45397D

TUBE

oil filter drain (inside of crankcase)

1шт.

52

172545

SEAL

expansion, 1" (distributor hole)

1шт.

53

45391D

PIN, dowel, crankcase front plate

2шт.

54

46181DB

GASKET

crankcase front plate

1шт.

55

354489R1

LOCK

crankcase front plate screw

4шт.

56

354953R11

PLATE, crankcase, front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

58

46129D

DEFLECTOR

oil, crankshaft, front

1шт.

59

46258D

POINTER, timing

1шт.

61

55627D

SCREEN, oil filler (used with cover, 355121R1 (NSS) (order screen, 363232R1 and stud, 363231R1)

1шт.

61a

363232R1

SCREEN, oil filler (with stud, 363231R1) (used with cover, 355121R2 (NSS)

1шт.

62

53872D

OIL SEAL

OIL SEAL, crankshaft, front

1шт.

63

53424DA

CAMSHAFT BEARING,1.8715" ID x 2" OD x 1.0625"

camshaft, rear (will work for 46120DA (NSS)

1шт.

64

48196DBX

CAMSHAFT

w/key, 129599 and nut, 368598R1

1шт.

REF 64 DOES NOT INCLUDE JAM NUT - ORDER SEPARATELY BP 9/97

1шт.

65

53423DB

CAMSHAFT BEARING,1.479" OD

camshaft, center (will work for 46119DB (NSS)

1шт.

66

53422DA

CAMSHAFT BEARING,1.4375" OD x 2.3735"

camshaft, front (will work for 46118DA (NSS)

1шт.

67

127559

TAPE

Woodruff, no. 91 (camshaft gear)

1шт.

68

374704R1

PLATE ASSY.

PLATE, thrust, camshaft (optional with 43249D)

1шт.

68

43249D

PLATE

thrust, camshaft (optional with 374704R1)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

69

6760DB

GEAR

camshaft (58 teeth)

1шт.

70

16025D

SHIM

LOCK, camshaft gear nut (used with 23174V)

1шт.

71

V84199

NUT,1"-14, Thin

camshaft gear (RH thread)

1шт.

71

368598R1

NUT

camshaft gear (LH thread)

1шт.

363598R1

SLEEVE, oil level gage (see note)

1шт.
