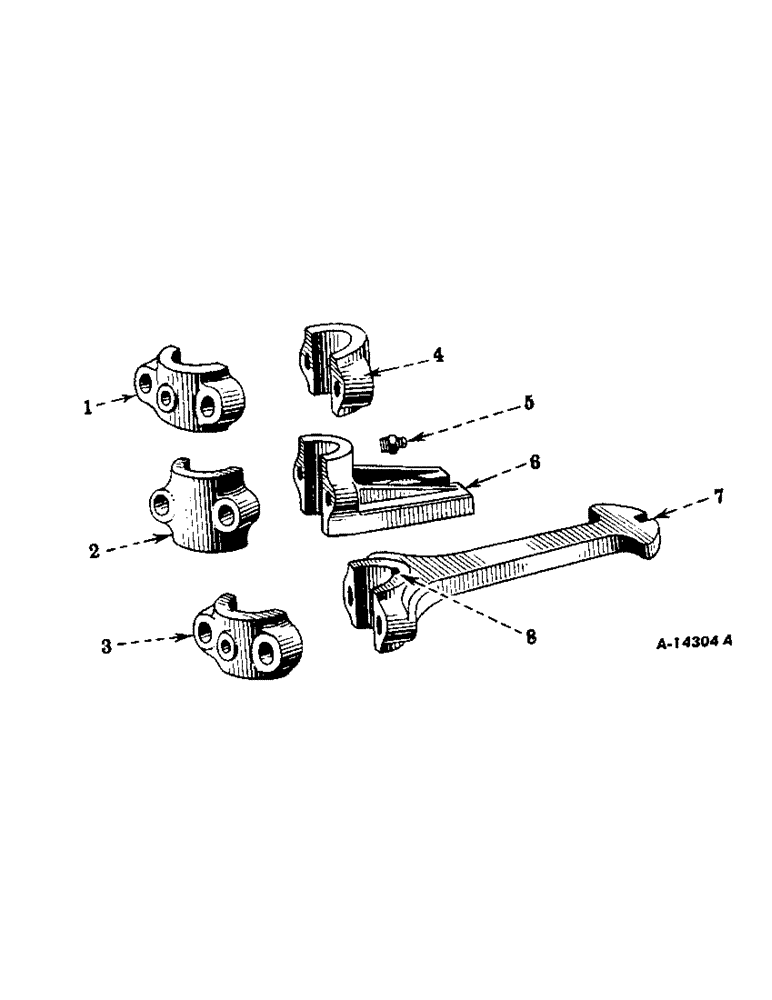

Запчасти Case IH SUPER M (437) - ATTACHMENTS, CULTIVATOR SHIFTER LEVER, SPECIAL Attachments

49194DA

ATTACHMENT, cultivator shifter lever (machine attachment) (no longer furnished for service)

1шт.

1

8853D

CAP, cultivator shifter auxiliary lever collar

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, cap, hex-hd., 1/2 - 13NC x 2"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

6800D

CAP, cultivator shifter auxiliary lever

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8 - 16NC x 1-3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

6798D

CAP, cultivator shifter lever

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, cap, hex-hd., 1/2 - 13NC x 2-1/2"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

8854DX

COLLAR, cultivator shifter auxiliary lever, assembly (composed of (1) cap 8853D, (1) lever 8854D (NSS), (2) screw 179889, (2) washer 103323)

1шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (optional with 109461)

1шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) 1/8"-27 x .66 lg

1шт.

6

6799DX

LEVER, auxiliary, cultivator shifter, assembly (composed of (1) cap 6800D, (1) lever 6799D (NSS), (2) screw 179845, (2) washer 103321)

1шт.

7

6797DAX

LEVER, cultivator shifter, assembly (composed of (1) cap 6798D, (1) lever 6797DA (NSS), (2) screw 179891, (2) washer 103323)

1шт.

8

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

Cultivator shifter lever #21, 1/4" x 1 1/4", HT

1шт.
