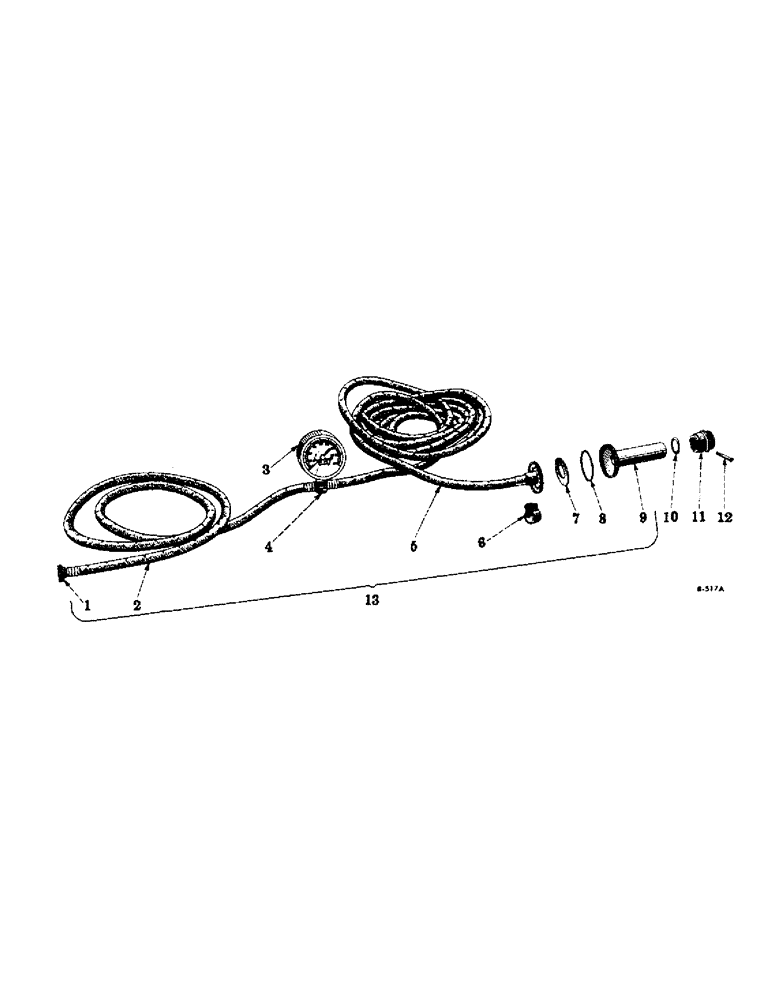

Запчасти Case IH SUPER M (429) - ATTACHMENTS, PNEUMATIC TIRE PUMPS, SCHRADER, SPECIAL Attachments

1

42813D

CONNECTOR, pump (Mfr. 2615D)

1шт.

2

42808D

HOSE, (4 ft.) (Mfr. 88889)

1шт.

3

42809D

GAGE, air pressure (Mfr. 888811)

1шт.

4

42806D

CONNECTOR, air pressure gage (Mfr. 88887)

1шт.

5

42807D

HOSE, (12 ft.) (Mfr. 88888)

1шт.

6

62602D

CLAMP, hose (Mfr. 8380)

4шт.

7

42802D

DISC, rubber (Mfr. 88882)

1шт.

8

42812D

WASHER, fibre (Mfr. 42812D)

1шт.

9

42800D

SHELL, long (Mfr. 88881)

1шт.

10

42811D

WASHER, rubber in adapter (Mfr. 888816)

1шт.

11

39625D

ADAPTER, 7/8" - 18 (Mfr. 888878)

1шт.

P/N 350342R91 8888TGK Pump, tire, P/N 350489R91, assembly, w/adapters (for 10, 14, 18mm, 1/2 x 7/8 thread spark plug hole)

1шт.

P/N 37836DA).

1шт.

Adapters are interchangeable on each of the above attachments.

1шт.

11

39626D

ADAPTER, 18mm (Mfr. 888818)

1шт.

P/N 350342R91 8888TGK Pump, tire, P/N 350489R91, assembly, w/adapters (for 10, 14, 18mm, 1/2 x 7/8 thread spark plug hole)

1шт.

P/N 39622D 888CG Pump, tire, P/N 350489R91, assembly, w/adapter (for 18mm, thread spark plug hole)

1шт.

Adapters are interchangeable on each of the above attachments.

1шт.

11

39627D

ADAPTER, 14mm (Mfr. 888814)

1шт.

P/N 350342R91 8888TGK Pump, tire, P/N 350489R91, assembly, w/adapters (for 10, 14, 18mm, 1/2 x 7/8 thread spark plug hole)

1шт.

P/N 39624D 8888DG Pump, tire, P/N 350489R91, assembly, w/adapter (for 14mm, thread spark plug hole) (optional with enginair pump, P/N 39605D)

1шт.

Adapters are interchangeable on each of the above attachments.

1шт.

11

350490R1

ADAPTER, 1/2" (Mfr. 888812)

1шт.

P/N 350342R91 8888TGK Pump, tire, P/N 350489R91, assembly, w/adapters (for 10, 14, 18mm, 1/2 x 7/8 thread spark plug hole)

1шт.

Adapters are interchangeable on each of the above attachments.

1шт.

11

350491R1

ADAPTER, 10mm (Mfr. 888810)

1шт.

P/N 350342R91 8888TGK Pump, tire, P/N 350489R91, assembly, w/adapters (for 10, 14, 18mm, 1/2 x 7/8 thread spark plug hole)

1шт.

Adapters are interchangeable on each of the above attachments.

1шт.

12

42810D1

SCREW, (for adapter) (Mfr. 888815)

1шт.

13

350489R91

PUMP

tire, w/gage, assembly (Mfr. 8888G)

1шт.

65814D

ADAPTER

air-water (Mfr. 8954A)

1шт.

P/N 350342R91 8888TGK Pump, tire, P/N 350489R91, assembly, w/adapters (for 10, 14, 18mm, 1/2 x 7/8 thread spark plug hole)

1шт.

140249H

CORE

S, valve (set of 5) (Mfr. 4000MBS5)

1шт.

P/N 350342R91 8888TGK Pump, tire, P/N 350489R91, assembly, w/adapters (for 10, 14, 18mm, 1/2 x 7/8 thread spark plug hole)

1шт.

350483R91

CAP

S, valve (set of 5) (Mfr. 880MBS5)

1шт.

P/N 350342R91 8888TGK Pump, tire, P/N 350489R91, assembly, w/adapters (for 10, 14, 18mm, 1/2 x 7/8 thread spark plug hole)

1шт.

350484R1

TOOL, valve repair (Mfr. 3263)

1шт.

P/N 350342R91 8888TGK Pump, tire, P/N 350489R91, assembly, w/adapters (for 10, 14, 18mm, 1/2 x 7/8 thread spark plug hole)

1шт.

350485R1

TOOL

valve finishing (Mfr. 8104) {P/N 39620D 888AG Pump, tire, P/N 350489R91, assembly, w/adapter (for 7/8" - 18 thread spark plug hole) (optional with enginair pump

1шт.

P/N 37836DA).

1шт.

350486R91

VALVE

tire, air-water (Mfr. 9251BR)

1шт.

P/N 350342R91 8888TGK Pump, tire, P/N 350489R91, assembly, w/adapters (for 10, 14, 18mm, 1/2 x 7/8 thread spark plug hole)

1шт.

350488R1

GAUGE

GAGE, tire pressure (Mfr. 9350)

1шт.

P/N 350342R91 8888TGK Pump, tire, P/N 350489R91, assembly, w/adapters (for 10, 14, 18mm, 1/2 x 7/8 thread spark plug hole)

1шт.
