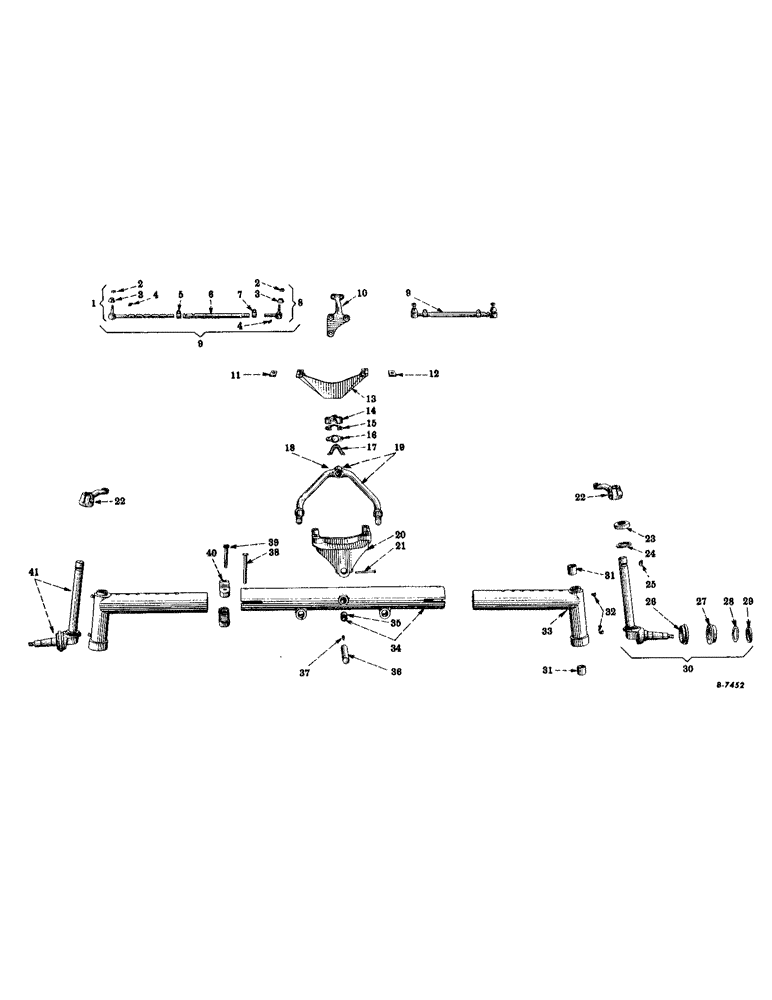

Запчасти Case IH SUPER M (422) - ATTACHMENTS, ADJUSTABLE WIDE TREAD FRONT AXLE, SUPER "M" AND "MD" FOR TRACTORS 60001 UP Attachments

360400R91

ATTACHMENT, adjustable wide tread front axle

1шт.

1

358983R91

TIE-ROD

TIE ROD, L.H., assembly (Thompson Products X-195-VN-11) (composed of (1) cover 358900R1, (1) end (order 358983R91) (NSS), (1) nut 358901R1, (1) pin 103386)

2шт.

1

359984R91

ROD

TIE ROD, L.H., assembly (Columbus Auto Parts H-X-2770) (composed of (1) cover 359982R1, (1) end (order 359984R91) (NSS), (1) nut 359983R1, (1) pin 103386)

2шт.

2

358901R1

SLOTTED NUT

tie rod end (Thompson Products 10-MN-38)

4шт.

2

359983R1

NUT

tie rod end (Columbus Auto Parts S-X-2379)

4шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Tie rod end 1/8" x 1 1/4"

4шт.

3

358900R1

SEAL

COVER, dust, tie rod end (Thompson Products 14-DC-58)

4шт.

3

359982R1

COVER

dust, tie rod end (Columbus Auto Parts S-X-2766)

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Tie rod) (Optional with 119512) 1/8"-27 x .66 lg

4шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (tie rod) (optional with 109461)

4шт.

5

358982R1

CLAMP, tie rod (adjustable end) (Thompson Products X-232-AD-1)

2шт.

5

359986R1

CLAMP

tie rod (adjustable end) (Columbus Auto Parts S-X-2768)

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2"

2шт.

6

358980R1

TUBE, tie rod (Thompson Products X-232-VN-1)

2шт.

6

359980R1

TUBE

tie rod (Columbus Auto Parts D-X-2774)

2шт.

7

358981R1

CLAMP, tie rod (threaded end) (Thompson Products X-232-AD)

2шт.

7

359985R1

CLAMP

tie rod (threaded end) (Columbus Auto Parts S-12228)

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2"

2шт.

8

360678R91

END

tie rod, assembly (R.H. thread) (Thompson Products X-195-VN-13) (composed of (1) cover 358900R1, (1) end (order 360678R91) (NSS), (1) nut 358901R1, (1) pin 103386)

2шт.

8

359981R91

END

tie rod, assembly (R.H. thread) (Columbus Auto Parts D-X-2759) (composed of (1) cover 359982R1, (1) end (order 359981R91 (NSS), (1) nut 359883R1, (1) pin 103386)

2шт.

9

358979R91

TIE ROD, assembly (Thompson Products X-195-VN) (optional with 359569R91) (composed of (1) clamp 358981R1, (1) clamp 358982R1, (1) end 360678R91, (2) nut 103028, (2) screw 181435, (1) tie rod, 358983R91, (1) tube 358980R1, (2) washer 114608)

2шт.

9

359569R91

TIE ROD, assembly (Columbus Auto Parts H-X-2770) (optional with 358979R91) (composed of (1) clamp 359985R1, (1) clamp 359986R1, (1) end 359981R91, (2) nut 103028, (2) screw 181435, (1) tie rod, 359984R91, (1) tube 359980R1, (2) washer 114608)

2шт.

10

358970R1

ARM

steering gear

1шт.

103031

TROUGH

NUT, hex., 3/4-16NF

3шт.

181512

SCREW, cap, hex-hd., 3/4-16NF x 2-1/4"

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

11

51693D

BAR

WASHER, bevel, stay rod ball socket support

2шт.

12

51811D

WASHER

bevel, stay rod ball socket support

2шт.

13

360406R1

SUPPORT, stay rod ball socket

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2"

2шт.

181484

SCREW, cap, hex-hd., 5/8-18NF x 2"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

9020D

SOCKET

ball, stay rod

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-5/8"

1шт.

15

60762D

SHIM

stay rod ball socket cap

4шт.

16

60763DB

CYLINDER END CAP

CAP, stay rod ball socket

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3"

2шт.

17

60566D

PLATE

lock, stay rod ball socket and cap

1шт.

18

10546D

BALL

stay rod

1шт.

19

360405R11

ROD

STAY ROD, w/ball, 10546D

1шт.

427392

NUT, hex., jam, 1-3/8-12NF

2шт.

118028

WASHER, lock, light, 1-3/8"

2шт.

20

358969R1

BOLSTER, lower

1шт.

21

Q3537

HEADED PIN,3/8" x 4 1/8"

PIN, headed, locking, 3/8 x 4-1/8" (front axle pivot)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

179959

SCREW, cap, hex-hd., 3/4-10NC x 3-3/4"

2шт.

179955

SCREW, cap, hex-hd., 3/4-10NC x 2-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

22

358971R1

ARM, steering knuckle

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

181488

SCREW, cap, hex-hd., 5/8-18NF x 3"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

thrust, steering knuckle pivot (Aetna #A-2182) (optional with 361034R91)

2шт.

23

361034R91

BEARING

thrust, steering knuckle pivot (Nice #R-3916) (optional with 357349R91)

2шт.

24

55412D

WASHER

WASHER, felt, steering knuckle pivot

2шт.

25

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff, no. 127, 1/4 x 2-1/2" (steering knuckle arm)

2шт.

26

48701D

SHIELD

dust, front wheel

2шт.

27

51901D

SPACER

bearing, front wheel

2шт.

28

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

felt, front wheel

2шт.

29

48704D

SEAL

OIL SEAL, front wheel (optional with 358779R91 or 358818R91)

2шт.

29

358779R91

OIL SEAL

front wheel (optional with 48704D or 358818R91)

2шт.

29

358818R91

OIL SEAL

front wheel (optional with 48704D or 358779R91)

2шт.

30

360408R91

KNUCKLE, steering (R.H.) assembly (composed of (1) knuckle 358960R1 (NSS), (1) oil seal 48704D, (1) pin 360409R1 (NSS), (1) shield 48701D, (1) spacer 51901D, (1) washer 48702D)

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

31

358958R1

BUSHING

steering knuckle pivot

4шт.

32

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90deg. elbow, 1/8" (steering knuckle pivot pin) (optional with 109354)

4шт.

32

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90deg. elbow, 1/8" (steering knuckle pivot pin) (optional with 109462)

4шт.

33

360403R91

EXTENSION, front axle, w/two bushings, 358958R1

2шт.

34

358976R11

FRONT AXLE

AXLE, front, w/two bushing, 48841D

1шт.

35

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

front axle pivot pin

2шт.

36

358978R1

PIN

pivot, front axle

1шт.

37

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Front axle pivot pin) (Optional with 110347) 1/4"-28 NPT x .54" lg

1шт.

37

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, straight, 1/4" (front axle pivot pin) (optional with 109454)

1шт.

38

350557R1

PIN

clamp, front axle

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

39

350558R1

BOLT

clamp, front axle

4шт.

103031

TROUGH

NUT, hex., 3/4-16NF

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

40

350556R1

CLAMP

front axle

4шт.

41

360407R91

KNUCKLE

steering (L.H.) assembly (composed of (1) knuckle 358960R1 (NSS), (1) oil seal 48704D, (1) pin 360409R1 (NSS), (1) shield 48701D, (1) spacer 51901D, (1) washer 48702D)

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

ST781A

TAPERED BEARING,42.88mm ID x 22.48mm W

BEARING, cone, front wheel, inner (illustrated with front wheel)

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
