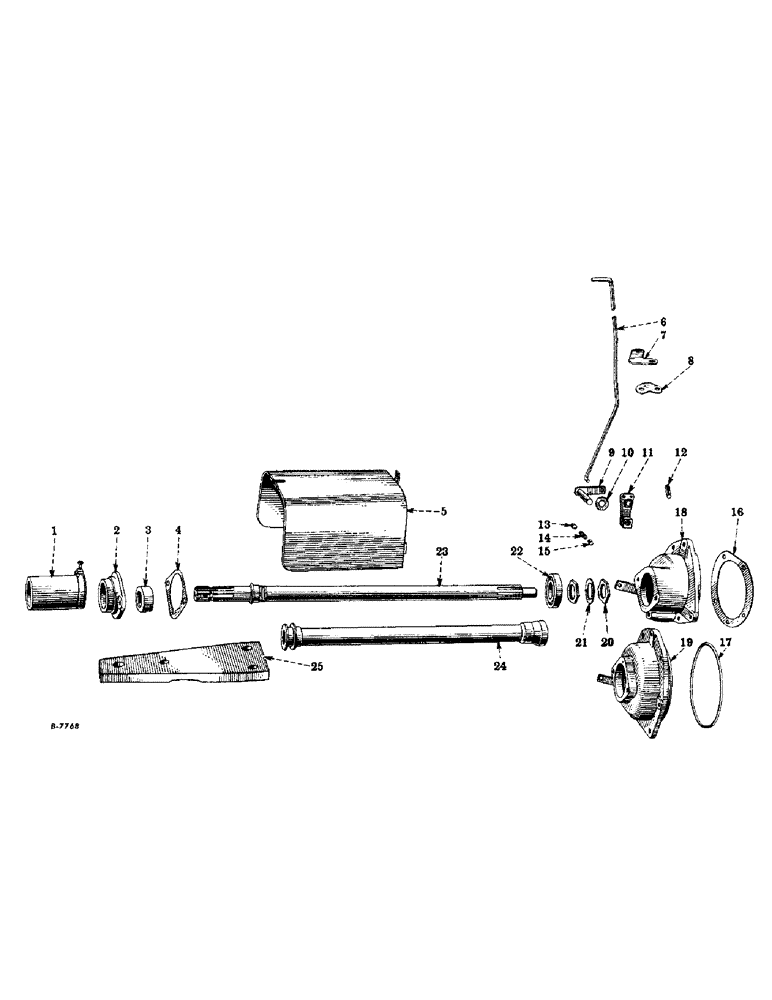

Запчасти Case IH SUPER M (412) - ATTACHMENTS, POWER TAKE-OFF, SPECIAL, TRANSMISSION DRIVEN TYPE Attachments

1

51484DX

GUARD, power take-off shaft, w/clamp

1шт.

2

9572DX

RETAINER

power take-off oil seal, w/oil seal, 45702D

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

3

45702D

OIL SEAL

OIL SEAL, power take-off shaft (optional with 358772R91 and 358812R91)

1шт.

3

358772R91

OIL SEAL

power take-off shaft (optional with 45702D and 358812R91)

1шт.

3

358812R91

OIL SEAL

OIL SEAL, power take-off shaft (optional with 45702D and 358772R91)

1шт.

4

66374D

GASKET

power take-off oil seal retainer

1шт.

5

66424DBX

SHIELD, safety, power take-off

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

6

66423DA

ROD, shifter, power take-off (A only)

1шт.

6

358383R1

ROD, shifter, power take-off (B & C only)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga.

1шт.

7

66384DB

GUIDE, power take-off shifter rod (A only)

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3-1/4" (A only)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A only) 7/16"

1шт.

496-21047

WASHER

plain, 15/32" I.D. x 59/64" O.D. x no. 16 ga. (A only)

1шт.

8

358384R1

GUIDE, power take-off shifter rod (B & C only)

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3-1/4" (B & C only)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (B & C only) 7/16"

1шт.

9

67060DX

SHAFT

LEVER AND SHAFT, power take-off shifter

1шт.

414-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10620P

WASHER

plain, 21/32" I.D. x 1-1/2" O.D. x no. 16 ga.

1шт.

10

70268D

SEAL

OIL SEAL, power take-off shifter lever shaft (optional with 358796R91 and 358831R91)

1шт.

10

358796R91

OIL SEAL

power take-off shifter lever shaft (optional with 70268D and 358831R91)

1шт.

10

358831R91

OIL SEAL

power take-off shifter lever shaft (optional with 70268D and 358796R91)

1шт.

11

66377DC

ARM

power take-off shifter lever

1шт.

12

142520

PIN, groove, 1/4 x 1" (power take-off shifter lever stop)

1шт.

13

103884

PLUG,Slotted, 1/4" NPT

pipe, slotted-hd., 1/4" (power take-off poppet)

1шт.

14

48103D

VALVE SPRING

SPRING, poppet, power take-off shifter

1шт.

15

48102D

PIN

POPPET, power take-off shifter

1шт.

16

66418D

GASKET

power take-off housing (A & B only)

1шт.

17

358842R1

RING

seal, power take-off housing (C only)

1шт.

18

9576DX

HOUSING, power take-off, w/pin, 142520 and oil seal, 70268D (A & B only)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (A & B only)

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(A & B only) Hex, 3/8"-16 x 3", G5

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3-1/4" (A & B only)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A & B only) 3/8"

5шт.

19

358965R11

HOUSING, power take-off, assembly (composed of (1) housing 358965R1 (NSS), (1) pin 142520, (1) oil seal 70268D, (1) ring 358842R1) (C only)

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex-hd., 1/2-13 NC x 1-1/4" (C only)

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (C only) 1/2"

4шт.

20

66375D

NUT, lock, power take-off shaft bearing

2шт.

21

66376D

WASHER, power take-off shaft bearing lock nut

1шт.

22

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

power take-off shaft (IH-C-240)

1шт.

23

66419D

SHAFT

power take-off

1шт.

24

66420DX

TUBE,27.864" Length

power take-off shifter

1шт.

25

66426D

EXTENSION, drawbar (super "M" and "MD" only)

1шт.

114821

NUT, hex., 3/4"-10NC

2шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
