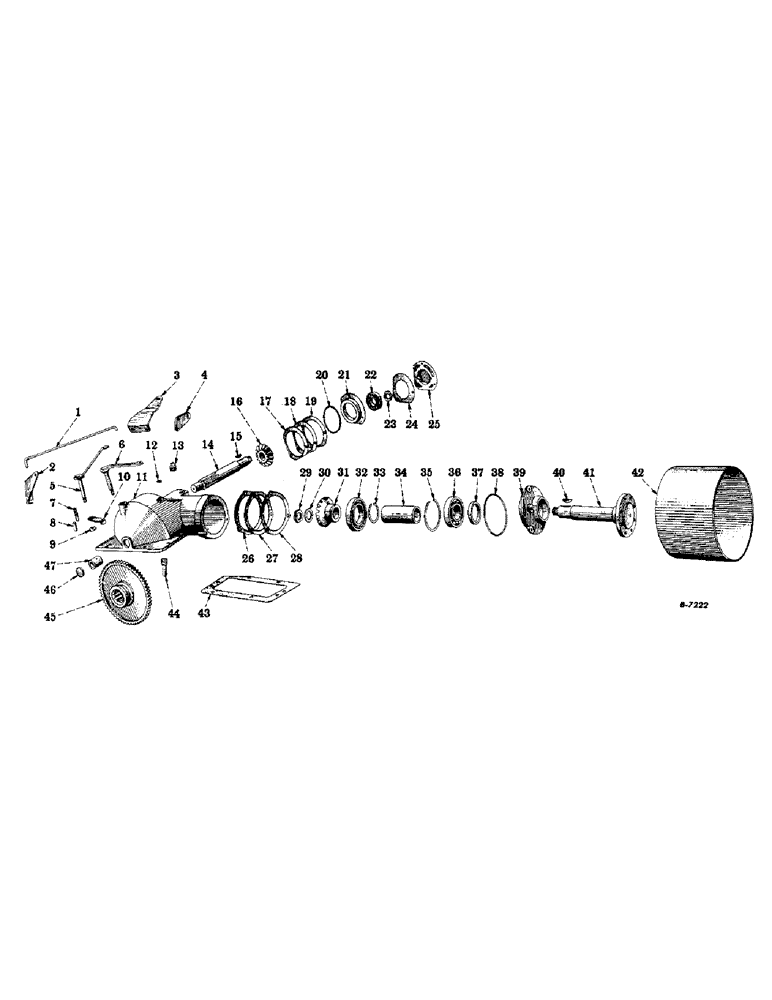

Запчасти Case IH SUPER M (408) - ATTACHMENTS, BELT PULLEY, SPECIAL Attachments

1

358370R1

ROD, pulley control (B only)

1шт.

358372R92 attachment, belt pulley, F-28175 up, L-504802, to L512541

1шт.

1

55051D

ROD, pulley control (A only)

1шт.

357184R92 attachment, belt pulley, F-501 to F-28174, L500001 to L501801

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

2

355757R1

BRACKET, pulley control rod (R.H. side) (A only)

1шт.

357184R92 attachment, belt pulley, F-501 to F-28174, L500001 to L501801

1шт.

9635082

NUT,5/16" - 18, Gr 5

(A only) 5/16"-18, G5

2шт.

357184R92 attachment, belt pulley, F-501 to F-28174, L500001 to L501801

1шт.

179814

SPACER

(A only) Hex, 5/16"-18 x 5/8", G5

2шт.

357184R92 attachment, belt pulley, F-501 to F-28174, L500001 to L501801

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (A only) 5/16"

2шт.

357184R92 attachment, belt pulley, F-501 to F-28174, L500001 to L501801

1шт.

3

358625R1

BRACKET, pulley control rod (for super "MD" and "MDV" tractors without engine-driven hydraulic lift-all) (L.H. side) (B only)

1шт.

358372R92 attachment, belt pulley, F-28175 up, L-504802, to L512541

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

(B only) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

358372R92 attachment, belt pulley, F-28175 up, L-504802, to L512541

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (B only) 5/16"

2шт.

358372R92 attachment, belt pulley, F-28175 up, L-504802, to L512541

1шт.

4

358626R1

BRACKET, pulley control rod (for super "MD" and "MDV" tractors with engine-driven hydraulic lift-all) (L.H. side) (B only)

1шт.

358372R92 attachment, belt pulley, F-28175 up, L-504802, to L512541

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(B only) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

358372R92 attachment, belt pulley, F-28175 up, L-504802, to L512541

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (B only) 5/16"

2шт.

358372R92 attachment, belt pulley, F-28175 up, L-504802, to L512541

1шт.

5

55050DAX

LEVER, pulley control, w/shaft and shaft plate (A only)

1шт.

357184R92 attachment, belt pulley, F-501 to F-28174, L500001 to L501801

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), (A only) 5/32" x 1 1/4"

1шт.

357184R92 attachment, belt pulley, F-501 to F-28174, L500001 to L501801

1шт.

6

358369R11

LEVER, pulley control, w/shaft and shaft plate (B only)

1шт.

358372R92 attachment, belt pulley, F-28175 up, L-504802, to L512541

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), (B only) 5/32" x 1 1/4"

1шт.

358372R92 attachment, belt pulley, F-28175 up, L-504802, to L512541

1шт.

7

23921D

SPRING, pulley shifter poppet

1шт.

8

45517D

POPPET, pulley shifter

1шт.

9

70119D

NUT

pulley control lever shaft

1шт.

10

51657DA

ARM, pulley shifter

1шт.

11

357185R21

HOUSING, pulley drive, w/bushing, 49260DB and plug, 41047D

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 2-3/4"

2шт.

187364

SCREW, cap, hex-hd., 1/2-13NC x 7-1/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

Q5035

WASHER

plain, 17/32" I.D. x 1" O.D. x no. 16 ga.

2шт.

12

29573D

GASKET, pulley drive housing bolt

2шт.

13

217-442

PLUG,3/4" - 14

pipe, sq-hd., 3/4"

1шт.

14

357186R1

SHAFT, pulley drive

1шт.

15

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff, aly-stl., no. 127, 1/4 x 2-1/8" (pulley drive bevel pinion)

1шт.

16

357188R1

PINION, pulley drive bevel (15 teeth)

1шт.

17

357196R1

SHIM, pulley drive shaft bearing cage, heavy (.030")

1шт.

18

357197R1

SHIM, pulley drive shaft bearing cage, medium (.015")

1шт.

19

357198R1

SHIM, pulley drive shaft bearing cage, light (.007")

1шт.

20

357190R1

O-RING

RING, seal, pulley drive shaft bearing cage

1шт.

21

357189R1

CAGE, pulley drive shaft bearing

1шт.

22

ST200

BEARING, BALL

pulley drive shaft (IH-L-335)

1шт.

23

357187R1

NUT, retainer, pulley drive bevel pinion

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

24

357200R1

GASKET, pulley drive shaft bearing cage cover

1шт.

25

357199R1

COVER, pulley drive shaft bearing cage

1шт.

179842

SPACER

cap, hex-hd., 3/8-16NC x 1-3/8"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

26

357205R1

SHIM, pulley shaft bearing cage, heavy (.030")

1шт.

27

357206R1

SHIM, pulley shaft bearing cage, medium (.015")

1шт.

28

357207R1

SHIM, pulley shaft bearing cage, light (.007")

1шт.

29

357187R1

NUT, retainer, pulley shaft bevel gear

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

30

357193R1

WASHER

retaining, pulley shaft bevel gear

1шт.

31

357192R1

GEAR, bevel, pulley shaft (16 teeth)

1шт.

32

ST227

BEARING, ball, pulley shaft, inner (IH-L-260)

1шт.

33

357194R1

RING

snap, pulley shaft inner bearing

1шт.

34

357195R1

SPACER, pulley shaft bearing

1шт.

35

357201R1

RING

snap, pulley shaft outer bearing

1шт.

36

ST203

BEARING, BALL,45mm ID x 100mm OD x 25mm W

pulley shaft, outer (IH-L-345)

1шт.

37

357203R91

SEAL ASSY.

OIL SEAL, pulley shaft (optional with 360255R91)

1шт.

37

360255R91

OIL SEAL

pulley shaft (optional with 357203R91)

1шт.

38

357204R1

RING

seal, pulley shaft bearing cage

1шт.

39

357202R11

CAGE, pulley shaft bearing, w/oil seal, 357203R91 and ring 357204R1

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

40

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff, aly-stl., no. 127, 1/4 x 2-1/8" (pulley shaft)

1шт.

41

357191R1

SHAFT, pulley

1шт.

42

356942R1

PULLEY, belt (11" dia. x 7-1/2" face) (see note)

1шт.

42

358397R91

PULLEY, belt (11" dia. x 7-1/2" face) (see note)

1шт.

42

356941R1

PULLEY, belt (12" dia. x 8-1/2" face) (see note)

1шт.

42

358597R91

PULLEY, belt (12" dia. x 8-1/2" face) (see note)

1шт.

42

356943R1

PULLEY, belt (13" dia. x 8-1/2" face) (see note)

1шт.

42

358598R91

PULLEY, belt (13" dia. x 8-1/2" face) (see note)

1шт.

114774

NUT, hex., 1/2-13NC

4шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-5/8"

4шт.

43

49054DA

GASKET, pulley drive housing

1шт.

44

45979D

STUD

PIN, dowel, pulley drive housing

2шт.

45

51583DB

GEAR, pulley drive shifter (59 teeth)

1шт.

46

41047D

PLUG, cup, pulley drive shaft hole

1шт.

47

49260DB

BUSHING

pulley drive shaft

1шт.

355174R1

STUD, belt pulley drive housing (for tractors equipped with forward and reverse attachments) (A only)

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF (A only)

1шт.

357184R92 attachment, belt pulley, F-501 to F-28174, L500001 to L501801

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A only) 1/2"

1шт.

357184R92 attachment, belt pulley, F-501 to F-28174, L500001 to L501801

1шт.

358265R1

1шт.

SUPPORT, control rod (super "M" and "MV") (for belt pulley, choke and starting control rods) (illustrated with cranking motor) (not used on tractors equipped with hydraulic "lift-all" attachment with engine-driven pump), F-28175 up, L-504802 to L-512541 (B only)

1шт.

358467R1

SUPPORT, control rod (super "M" and "MV") (for belt pulley, choke and starting control rods) (tractors equipped with hydraulic "lift-all" attachment with engine-driven pump) (illustrated with cranking motor), F-28175 up, L-504802 to L-512541 (B only)

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.
