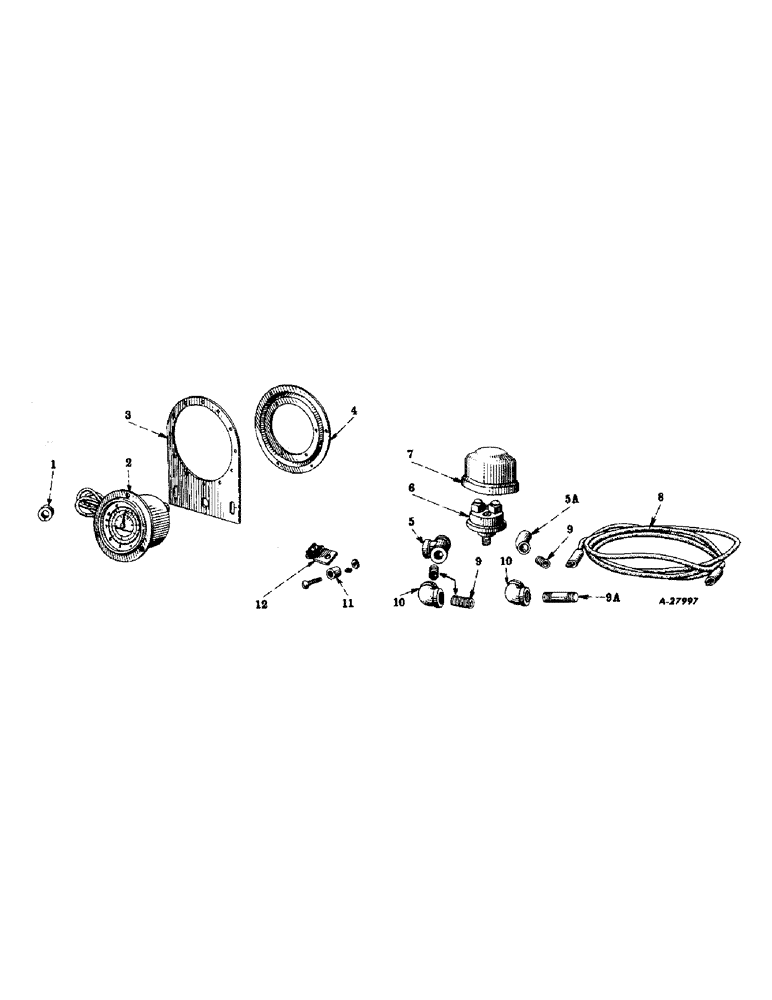

Запчасти Case IH SUPER M (406) - ATTACHMENTS, ENGINE HOUR METER, SPECIAL Attachments
№
Артикул
Название
Примечание
Количество
356735R91
ATTACHMENT, engine hour meter (6 volt) (for super "M" and "MV" tractors)
1шт.
356740R91
ATTACHMENT, engine hour meter (12 volt) (for super "MD" and "MDV" tractors)
1шт.
1
33560D
GROMMET, rubber (super "M" and "MV" only)
1шт.
2
356736R91
METER, hour (6 volt) (super "M" and "MV" only)
1шт.
2
356741R91
METER, hour (12 volt) (super "MD" and "MDV" only)
1шт.
132705
GEARBOX
slotted-rd-hd., cd-pltd., no. 6-32 x 1/2"
3шт.
138526
LOCK WASHER
lock, internal-tooth, cd-pltd., no. 6
3шт.
3
356738R1
BRACKET, mounting, hour meter
1шт.
171589
SCREW, self-tapping, slotted-rd-hd., cd-pltd., no. 6-32 x 1/2"
2шт.
446179
WASHER,#12
plain, cd-pltd., 1/2" O.D. x 1/4" I.D. x no. 18 ga.
2шт.
4
356737R91
DAMPER
hour meter vibration
1шт.
132705
GEARBOX
slotted-rd-hd., cd-pltd., no. 6-32 x 1/2"
3шт.
138526
LOCK WASHER
lock, internal-tooth, cd-pltd, no. 6
3шт.
5
105416
TEE,1/8" NPT, Fem
pipe, 1/8" (super "M" and "MV" only)
1шт.
5a
NLS
NO LONGER SERVICED
ELBOW, M.I. 1/8" (45deg.) (super "MD" and "MDV" only)
1шт.
6
356739R91
SWITCH
pressure, hour meter
1шт.
7
354558R1
SHIELD
pressure switch
1шт.
8
358581R91
CABLE, pressure switch to junction block (will work for 70261D)
1шт.
9
144580
NIPPLE, LUBE,Nipple, 1/8" NPT x 7/8"
NIPPLE, 1/8 x 7/8" (close) (super "M" and "MV" only)
2шт.
9
144580
NIPPLE, LUBE,Nipple, 1/8" NPT x 7/8"
NIPPLE, 1/8 x 7/8" (close) (super "MD" and "MDV" only)
1шт.
9a
221-106
PIPE,Nipple, 1/8" NPT x 1 1/2"
NIPPLE, 1/8 x 1-1/2" (long) (super "MD" and "MDV" only)
1шт.
10
105412
ELBOW,90 Degree, 1/8" NPT
M.I. 1/8" (90deg.)
1шт.
11
354260R1
SPACER,1/8" Pipe x 7/16"
junction block
1шт.
12
42915D
BLOCK
junction
1шт.
132919
SCREW,Sl Rnd Hd, #10 - 32 x 7/8"
slotted-rd-hd., cd-pltd., no. 10-32 x 7/8"
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
1шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
Выбрано товаров: 28
