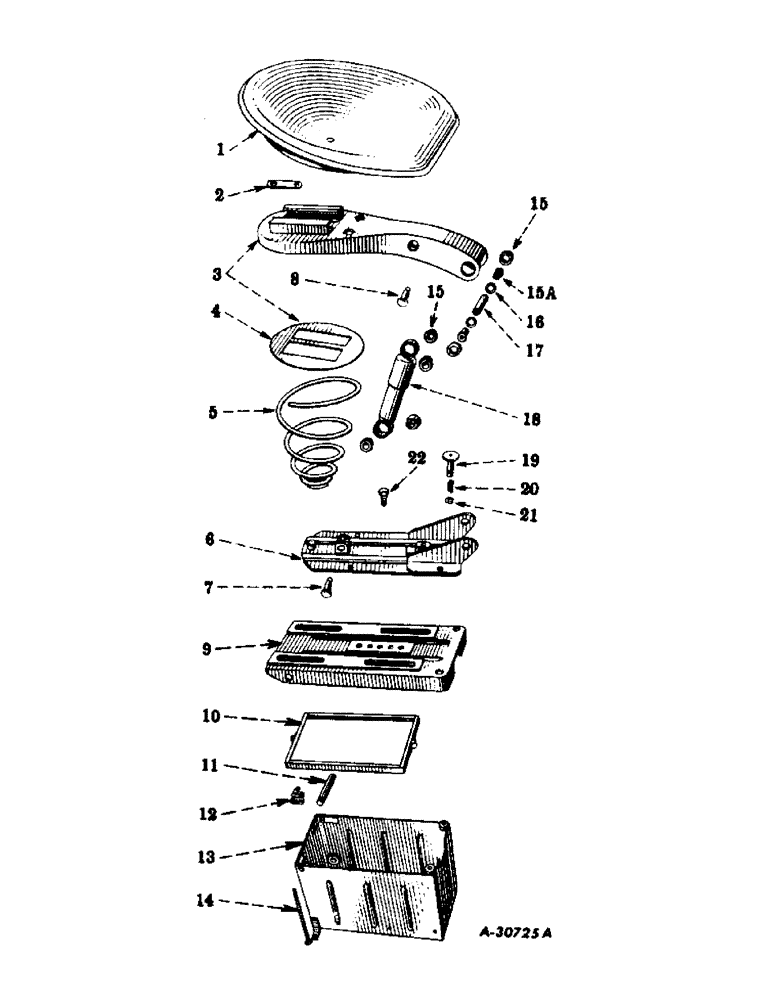

Запчасти Case IH SUPER M (338) - CHASSIS, SEAT, SEAT SUPPORT AND BATTERY BOX, FOR TRACTORS F-28175 AND UP AND L-504502 TO L-512541 (12) - CHASSIS

1

351925R93

SEAT

upholstered

1шт.

1

357518R91

DRIVER SEAT

SEAT, deluxe upholstered

1шт.

181392

BOLT,Hex, 7/16" - 20 x 11/16"

SCREW, cap, hex-hd., 7/16-20NF x 11/16"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

2

352118R1

CLIP, trip rope

1шт.

3

352599R94

BRACKET, seat support, w/gasket, 352100R1

1шт.

4

352100E1

GASKET, conical spring

1шт.

5

354671R2

SPRING

conical (3 identifying notches) (for light weight operators)

1шт.

5

352598R2

SPRING

conical (4 identifying notches) (for medium weight operators)

1шт.

5

354670R2

VALVE SPRING

SPRING, conical (5 identifying notches) (for heavy weight operators)

1шт.

6

355750R11

PLATE, seat mounting

1шт.

7

351751R1

BOLT,7/16" - 20 x 2 7/32"

shock absorber anchor, lower

1шт.

103027

NUT, hex., 7/16-20NF

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

8

181413

SCREW,Hex, 7/16" - 20 x 3 1/2"

BOLT, shock absorber anchor, upper, hex-hd., 7/16-20NF x 3-1/2"

1шт.

354732R1

NUT, lock, shock absorber anchor bolt (upper)

1шт.

9

358275R11

COVER, battery box

1шт.

13252R1

SCREW,1/2" - 13 x 7/8"

BOLT, machine, sq-hd., 1/2-13NC x 7/8"

2шт.

220068

NUT, hex., 1/2-13NC

2шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

358279R11

CLAMP, battery hold-down (super "M" and "MV")

1шт.

10

358551R11

CLAMP, battery hold-down (super "MD" and "MDV")

1шт.

11

358287R1

SUPPORT, rear light

1шт.

12

358281R1

RUBBER, corner, battery hold-down

4шт.

13

358693R91

CONNECTOR, ELEC

BOX, battery

1шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3"

2шт.

179925

FLEXIBLE HOSE

SCREW, cap, hex-hd., 5/8-11NC x 1-1/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

358277R1

BOLT, battery hold-down

2шт.

129-419

WING NUT,5/16"-18

NUT, wing, 5/16-18NC

2шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16 x 1/2"

2шт.

28950D

WASHER

plain, 21/64" I.D. x 5/8" O.D. x no. 16 ga.

2шт.

15

72696R1

SHOCK ABSORBER

BUSHING, shock absorber and seat pivot (will work for 250416R1)

4шт.

6 used - F-28175 to F-41548 and L-504802 to L-512273 also with P/N 355754R1 bushing.

1шт.

15a

355754R1

BUSHING

seat support pivot rod, 5/8" I.D., 1" O.D., 2-9/32" long (order two 361140R1), F-41549 up, Serial Range: L-512274-512541

1шт.

16

352650R1

WASHER,15.93mm ID x 23.02mm OD x 2.38mm Thk

seat support pivot rod, F-28175 to F-41548, Serial Range: L-504802-L-512273

2шт.

17

352616R1

PIN,17.46mm OD x 88.9mm L

ROD, seat support pivot, F-28175 to F-41548, Serial Range: L-504802-L-512541

1шт.

17

355753R1

PIN,15.88mm OD x 88.9mm L

ROD, seat support pivot, F-41549 up, Serial Range: L-512274-L-512541

1шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 1"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

351750R93

SHOCK ABSORBER

ABSORBER, shock

1шт.

19

352600R91

PIN

LOCATOR, seat

1шт.

20

352105R1

SPRING

seat locator

1шт.

21

351128R1

WASHER

RETAINER, seat locator (will work for 352122R1)

1шт.

22

358268R2

BOLT,1/2" - 20 x 1 1/2"

seat mounting

4шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

353649R1

WASHER, steel, 21/32" I.D. x 1-5/16" O.D. x no. 13 ga.

4шт.

357820R92

ATTACHMENT, deluxe type upholstered seat (consists of seat, 357518R91)

1шт.

351440R93

PAD

ATTACHMENT, deluxe detachable seat pad (consists of one pad, 351438R93)

1шт.

359555R91

PAD

ATTACHMENT, detachable seat pad (consists of pad, 359483R91)

1шт.

354672R92

ATTACHMENT, seat spring (consists of one spring, 354670R2) (for heavy weight operators)

1шт.

354673R92

ATTACHMENT, seat spring (consists of one spring, 354671R2) (for light weight operators), F-28175 to F-41548, Serial Range: L-504802-L-512273

1шт.

360083R91

SPRING

ATTACHMENT, seat spring (consists of one spring, 352598R2) (for medium weight operators), F-41549 up, Serial Range: L-512274-L-512541

1шт.

356890R92

ATTACHMENT, tilt back seat bracket (for hydraulic seat) (illustrated with hydraulic seat attachment)

1шт.

351438R93

PAD

detachable seat (rubber)

1шт.

359483R91

PAD

detachable seat (jute)

1шт.

353309R1

SPACER

seat mounting

4шт.

354731R1

TUBE

SPACER, shock absorber bushing

2шт.

354730R1

TUBE,.625" OD, 2.25" Length

shock absorber bushing

1шт.

355749R92

1шт.

UNIT, seat suspension, assembly (will work for 352347R96) (composed of (1) absorber 351750R93, (1) bolt 351751R1, (1) bolt 181413, (1) bracket 352599R94, (4) bushing 72696R1, (2) bushing 361140R1, (1) locator 352600R91, (1) nut 354732R1, (1) nut 103027 (1) plate 355750R11, (1) retainer 351128R1, (1) rod 355753R1, (2) screw 181427, (2) spacer 354731R1, (1) spring 352105R1, (1) spring 354671R2, (1) tube 354730R1, (1) washer 103322, (2) washer 103323)

1шт.
