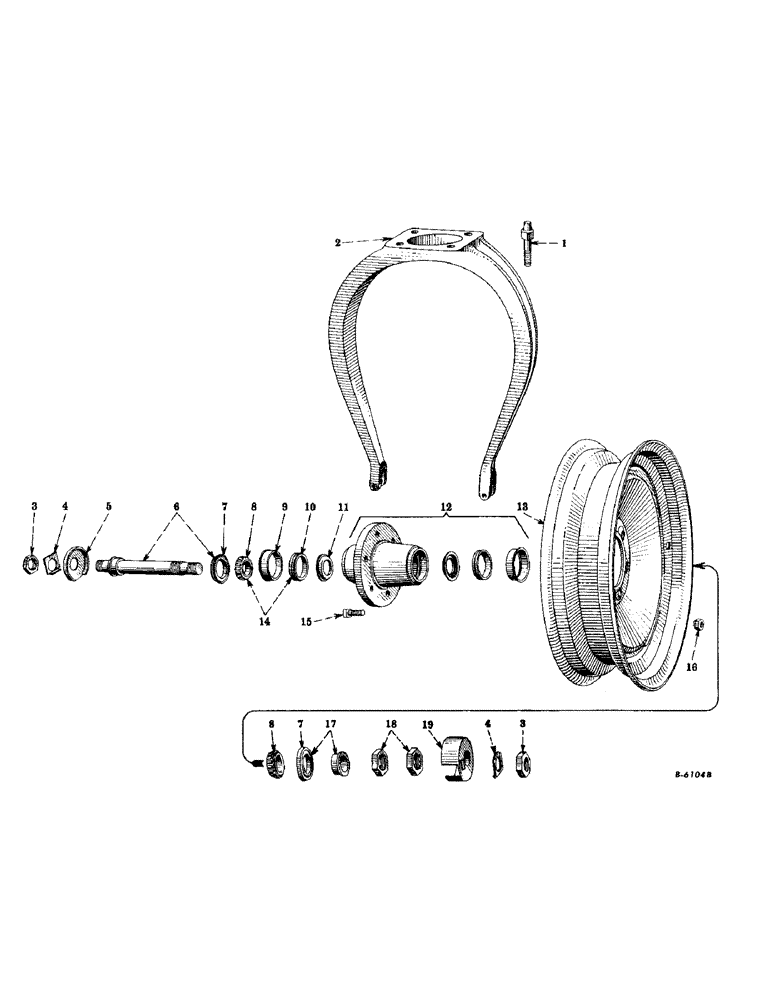

Запчасти Case IH SUPER M (333) - CHASSIS, GUIDE WHEEL, SUPER "M" AND "MD" (12) - CHASSIS

1

49195DA

BOLT, steering stop

1шт.

352536R1

NUT

steering stop bolt

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

2

350302R2

FORK, front bolster (for 7.50 x 20 tire)

1шт.

13452R1

BOLT, machine, 1/2-13NC x 3-1/2"

2шт.

114774

NUT, hex., 1/2-13NC

2шт.

352536R1

NUT

front bolster fork bolt

3шт.

181512

SCREW, cap, hex-hd., 3/4-16NF x 2-1/4"

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

119456

AUGER FLIGHT

Follow reference no. 6

1шт.

4

38916D

LOCK WASHER

lock, front axle nut

2шт.

5

351419R11

PROTECTOR

SHIELD, guide wheel hub, short

1шт.

6

351417R11

AXLE, guide wheel, w/oil seal, 48539D

1шт.

119456

AUGER FLIGHT

NUT, jam, hex., 1-1/4-12NF

2шт.

7

48539D

OIL SEAL, guide wheel (optional with 358778R91 and 358817R91)

2шт.

7

358778R91

OIL SEAL

guide wheel (optional with 48539D and 358817R91)

2шт.

7

358817R91

OIL SEAL

guide wheel (optional with 48539D and 358778R91)

2шт.

8

10880K

BEARING

CONE, guide wheel bearing (Timken 14138-A) (optional with 353523R92 or 352389R91)

2шт.

8

353523R92

CONE, guide wheel bearing (Tyson 14138-A) (optional with 10880K or 352389R91)

2шт.

8

352389R91

BEARING

CONE, guide wheel bearing (Bower 14138-A) (optional with 10880K or 353523R92)

2шт.

9

48548D

WASHER

guide wheel oil seal

2шт.

10

13822V

BEARING

CUP, guide wheel bearing (Timken 14274) (optional with 352396R1 or 353531R1)

2шт.

10

352396R1

CUP

guide wheel bearing (Bower BT-14274) (optional with 13822V or 353531R1)

2шт.

10

353531R1

BEARING

CUP, guide wheel bearing (Tyson 14274) (optional with 13822V or 352396R1)

2шт.

11

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

grease guide wheel bearing

2шт.

12

351398R21

HUB, guide wheel, assembly (will work for 351398R12 providing six bolts, 358134R1 are used) (composed of (2) cup 13822V, (1) hub 351398R2 (NSS), (2) retainer 48548D, (2) retainer 60288DA)

1шт.

13

351397R91

WHEEL, guide (for pneumatic tire 7.50 x 20) (see note) (optional with 360133R91)

1шт.

13

360133R91

WHEEL, guide (for pneumatic tire 7.50 x 20) (see note) (optional with 351397R91)

1шт.

14

10873K

BEARING CUP

BEARING, guide wheel (Timken 14138-A - 14274) (cone, 10880K and cup, 13822V) (optional with 353515R92 or 352382R91)

2шт.

14

353515R92

BEARING

guide wheel (Tyson 14138-A - 14274) (cone, 353523R92 and cup, 353531R1) (optional with 10873K or 352382R91)

2шт.

14

352382R91

BEARING

guide wheel (Bower 14138-A - BT-14274) (cone, 352389R91 and cup, 352396R1) (optional with 10873K or 353515R92)

2шт.

15

181729

BOLT,Hex, 9/16" - 18 x 1 3/4"

SCREW, cap, hex-hd., cd-pltd., 9/16 x 1-3/4" (guide wheel mounting) (used with 351398R12)

6шт.

15

358134R1

BOLT (MACHINE),9/16" - 18 x 1 3/4"

BOLT, mounting, guide wheel (square-head) (used with 351398R21)

6шт.

16

351793R1

WHEEL NUT

NUT, mounting, guide wheel

6шт.

17

351416R11

SPACER, guide wheel bearing, w/oil seal, 48539D

1шт.

18

351418R1

BEARING LOCK NUT

adjusting, guide wheel bearing

2шт.

19

351420R11

PROTECTOR

SHIELD, guide wheel hub (long)

1шт.
