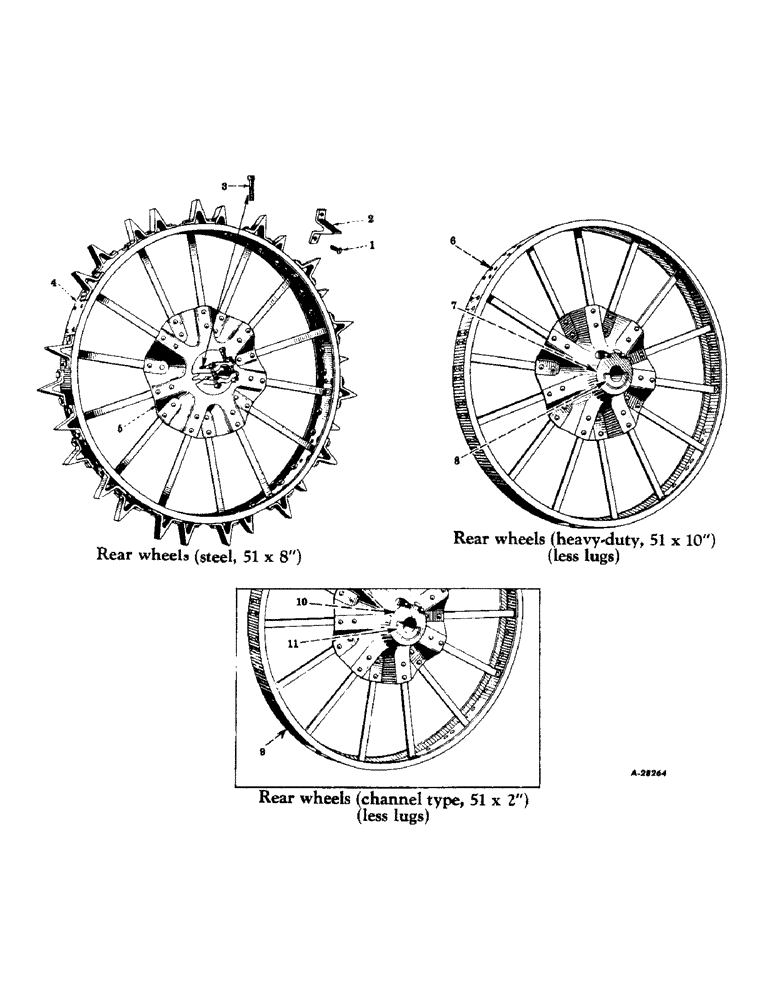

Запчасти Case IH SUPER M (330) - CHASSIS, REAR WHEELS, STEEL, SUPER "M" AND "MD" (12) - CHASSIS

354793R91

ATTACHMENT, rear wheel (composed of (8) bolt 45033D, (8) nut 352536R1, (1) screw 49637D, (2) wheel 48850DA)

1шт.

1

63137D

BOLT, spade lug

112шт.

114820

NUT, hex., 5/8-11NC

112шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

112шт.

2

23834D

LUG, rear wheel spade, 4 x 2-1/2"

56шт.

3

45033D

BOLT, rear wheel hub

8шт.

352536R1

NUT

rear wheel hub bolt

8шт.

4

48850DA

WHEEL, rear w/o lugs

2шт.

5

48852DX

HUB AND FLANGE, rear wheel

2шт.

49637D

SCREW, fifth speed lockout

1шт.

6

354759R91

ATTACHMENT, rear wheel (composed of (1) screw 49637D, (8) screw 179982, (8) washer 103327, (8) washer PO12898, (2) wheel 66074DB) , (HEAVY DUTY, 51 X 10'') (LESS LUGS)

1шт.

6

66074DB

WHEEL, rear, w/clamp, 9556DB, less lugs (see note) , (HEAVY DUTY, 51 X 10'') (LESS LUGS)

2шт.

7

9557DBX

HUB, rear wheel, assembly (composed of (1) clamp 9556DB, (1) hub 9557DB (NSS), (4) screw 179982, (4) washer 103327, (4) washer PO12898) , (HEAVY DUTY, 51 X 10'') (LESS LUGS)

2шт.

8

9556DB

CLAMP, rear wheel hub , (HEAVY DUTY, 51 X 10'') (LESS LUGS)

2шт.

179982

SHAFT

SCREW, cap, hex-hd., 7/8-9NC x 4-1/4" , REAR WHEEL (HEAVY DUTY, 51 X 10'') (LESS LUGS)

8шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, , Rear wheel (Heavy Duty, 51 X 10'') (Less Lugs) 7/8"

8шт.

PO12898

WASHER

plain, 29/32" I.D. x 1-1/2" O.D. x no. 11 ga. , REAR WHEEL (HEAVY DUTY, 51 X 10'') (LESS LUGS)

8шт.

49637D

SCREW, fifth speed lockout , REAR WHEEL (HEAVY DUTY, 51 X 10'') (LESS LUGS)

1шт.

66335D

WRENCH, double end socket (see note) , REAR WHEEL (HEAVY DUTY, 51 X 10'') (LESS LUGS)

1шт.

9

354748R91

ATTACHMENT, rear wheel (composed of (1) screw 49637D, (8) screw 179982, (8) washer 103327, (8) washer PO12898, (2) wheel 66297DB) , REAR WHEEL (HEAVY DUTY, 51 X 10'') (LESS LUGS)

1шт.

9

66297DB

WHEEL, rear, w/clamp, 9556D, less lugs (see note) , REAR (HEAVY DUTY, 51 X 10'') (LESS LUGS)

2шт.

10

9557DBX

HUB, rear wheel, assembly (composed of (1) clamp 9556DB, (1) hub 9557DB (NSS), (4) screw 179982, (4) washer 103327, (4) washer PO12898) , (HEAVY DUTY, 51 X 10'') (LESS LUGS)

2шт.

11

9556DB

CLAMP, rear wheel hub , (HEAVY DUTY, 51 X 10'') (LESS LUGS)

2шт.

179982

SHAFT

SCREW, cap, hex-hd., 7/8-9NC x 4-1/4" , REAR WHEEL (HEAVY DUTY, 51 X 10'') (LESS LUGS)

8шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, , Rear wheel (Heavy Duty, 51 X 10'') (Less Lugs) 7/8"

8шт.

PO12898

WASHER

plain, 29/32" I.D. x 1-1/2" O.D. x no. 11 ga. , REAR WHEEL (HEAVY DUTY, 51 X 10'') (LESS LUGS)

8шт.

49637D

SCREW, fifth speed lockout , REAR WHEEL (HEAVY DUTY, 51 X 10'') (LESS LUGS)

1шт.

66335D

WRENCH, double end socket (see note) , REAR WHEEL (HEAVY DUTY, 51 X 10'') (LESS LUGS)

1шт.
